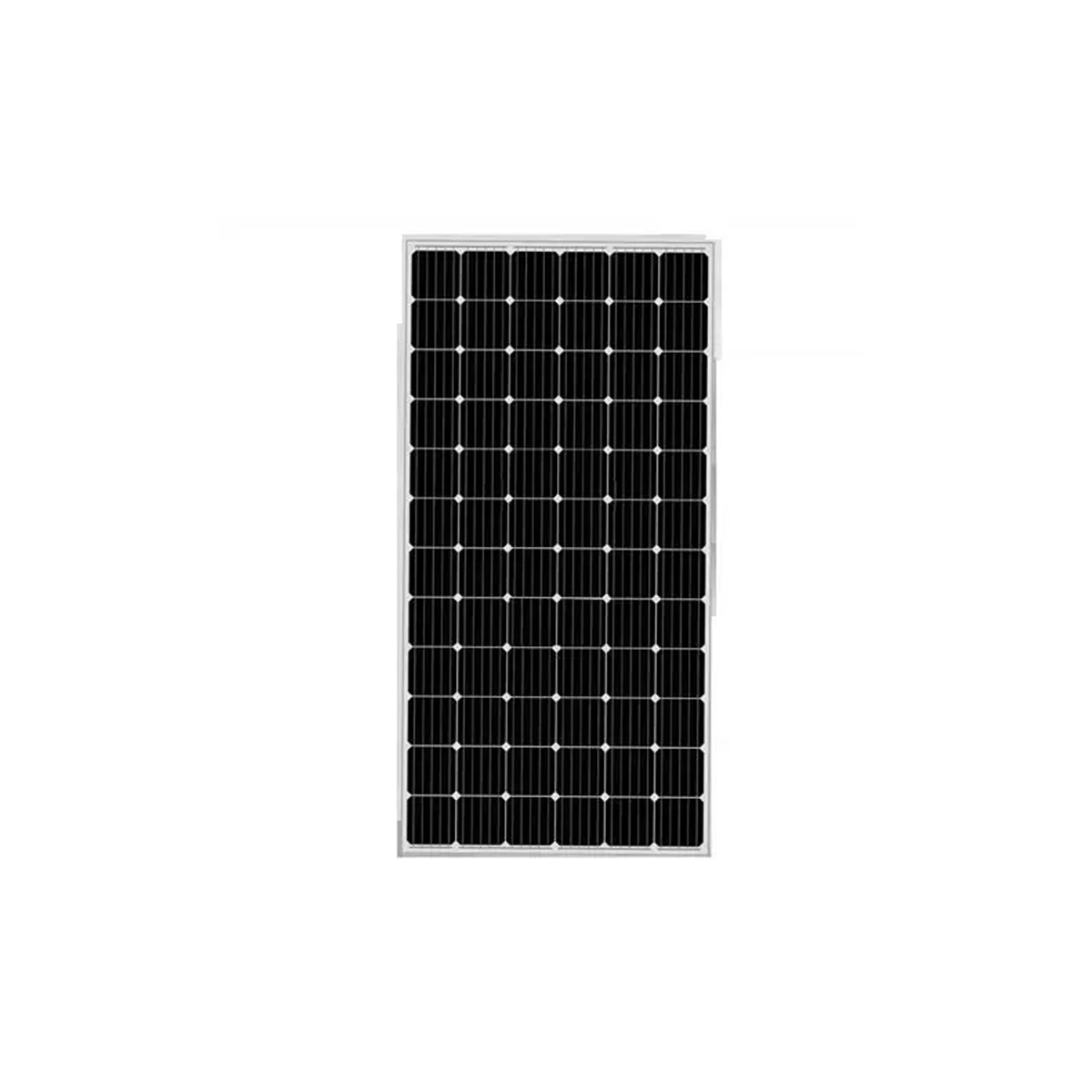

Mecer Solar PV Modules MONO

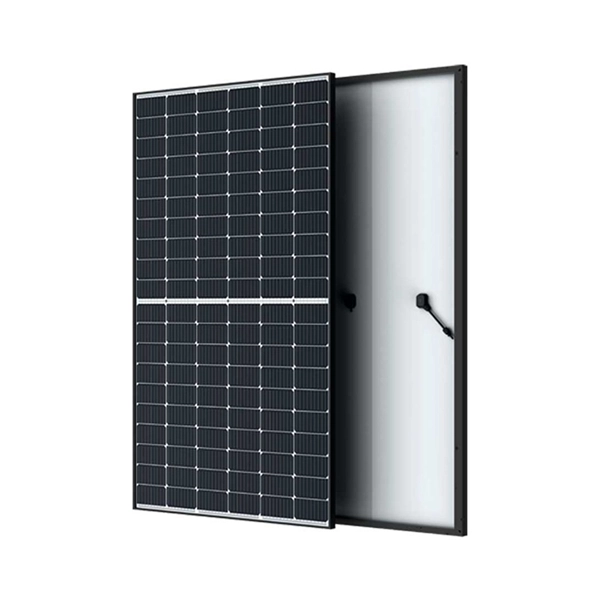

Mecer 450W Monocrystalline Solar Panel module (SOL-P-M-450)



Products Characteristics

• Widely using of the most popular and mature type of modules for on-grid system.
• Leading manufacturing technology in PV industry, strictly controlling the quality of raw materials and the process of producing
• 100% EL inspection, ensures modules are defects free.
• Cells binned by current to improve module performance
• Anti reflective glass. Not only to increase the light absorption, but also to make the module has the function of self-cleaning inwater environment, effectively reducing the power loss caused by dust.
• Outstanding performance in low-light irradiance environments.
• Excellent mechanical load resistance:Certified to withstand high wind loads(2400pa) and snow loads(5400pa).
• High salt and ammonia resistance

Specifications

545W
Vmp:  41.5V
Voc:  49.3V
Imp:  10.85A
Isc:  11.6A
2095*1039*35
23.5kg

Mecer 545W Solar PV Module Monocrystalline Solar Panel SOL-P-M-545

Features and Specifications

Whether you’re looking to reduce your reliance on the grid, save on electricity bills, or contribute to a greener future, the Mecer 545-watt PV Modules are an ideal solution.

High Efficiency:
Generate more power with each panel.
Its 21.09% module efficiency maximises energy production from your available space, reducing the number of panels required for your desired output.

Durable Construction:
Built to withstand the elements, the Mecer 545 Watt PV Modules feature a sturdy anodized aluminium alloy frame and high-transmission, low-iron tempered glass that can handle wind loads of up to 2400Pa and snow loads of up to 5400Pa.

Exceptional Temperature Performance:
Maintain optimum power generation even in hot South African summers.
The panels boast a low-temperature coefficient, ensuring minimal power loss at higher temperatures.

Tips for Using the Mecer 545 Watt PV Modules:
Orientation and Tilt:
Position the panels facing south with a tilt angle that matches your latitude for optimal performance.
Consider consulting a solar professional for precise calculations.

Technical Specification

Peak Power(Pmax): 545.00

Maximum Power Voltage(Vmp): 41.93

Maximum Power Current(Imp): 13.00

• STC: Irradiance 1000 W/m2, AM 1.5, Gand cell temperature of 25°C

Peak Power(Pmax): 405.10

Maximum Power Voltage(Vmp): 38.93

Maximum Power Current(Imp): 10.41

• NOCT: Irradiance 800 W/m2, AM 1.5G, Ambient temperature 20°C, wind speed 1 m/s

Cell Type: 182 x 91 Mono

No. of Cells: 144 (12 x 12)

Front Glass: 3.2mm High transmission, Low iron, Tempered glass

Frame Anodized: Aluminium Alloy

Junction box: IP68 3 diodes

Output cables: 4mm² cable 55cm + mc4

MaxWind Load/Snow Load: 2400Pa / 5400Pa

Dimensions: 2279 x 1134 x 35

Weight: 28.4kg

Mecer 445W Mono Percium Solar Panel SOL-P-M-445

Maximum System Voltage: 1000V;
Rated maximum Power(Mp): 370W;
Power tolerance: 0+-5W;
Cell efficiency: 18.7%;
Open Voltage (Voc): 47V;
Maximum Power Voltage(Vmp): 37.5V;
Short Circuit Current(Isc): 9.38A;
Maximum Power Current(Imp): 8.89A;
Temp Coefficient of Isc: +0.06%;
Temp Coefficient of Voc: -0.33%;
Temp Coefficient of Pmp: -0.45%.

What’s in the box
1 x Mecer 370W Monocrystalline Solar Panel module
