Classification
|
Kiosk
|
|
| System-Configuration | Processor |
Intel Tiger Lake UP3 Core i3-1115G4E, up to 3.90 GHz, 6M Cache; Intel Tiger Lake UP3 Core i5-1145G7E, up to 4.10 GHz, 8M Cache |
| System Memory |
DDR4 SO-DIMM slot x 1, max. 32GB
|
|
| Storage Device |
M.2 connector x 1 (support SATA signal only)
|
|
| Intel vPro Support |
Yes, depends on processor
|
|
| TPM Support |
TPM 2.0
|
|
| Power Supply |
12V/84W x 1 + 24V/60W x 1
|
|
| OS Support |
Windows 10 IoT LTSC
Windows 11 IoT GAC |
|
| I/O-Expansion | Serial Port |
DB9 x 1 + RJ50 x 2, 5V/12V support on all COM ports
|
| Standard USB Port |
USB 3.0 x 4 + USB 2.0 x 4
|
|
| OTG USB |
N/A
|
|
| Display Port |
HDMI x 1
|
|
| LAN Port |
10/100/1000 Mb x 2
|
|
| Audio |
Internal 3W speaker x 2
|
|
| Expansion Slot |
M.2 x 1
|
|

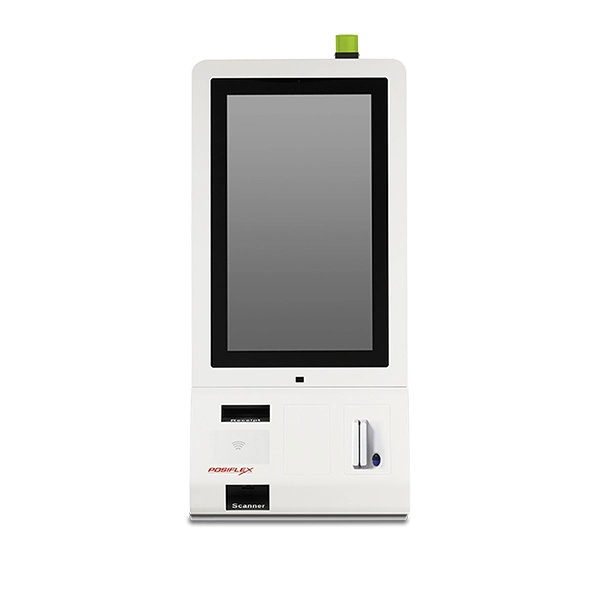

| Display & Touch | LCD |
21.5″
|
| Resolution |
1920 x 1080
|
|
| Touch |
True-flat PCAP touch with multi-touch support (IP65 on front panel)
|
|
| Dimension | Dimension(W x D x H in mm) |

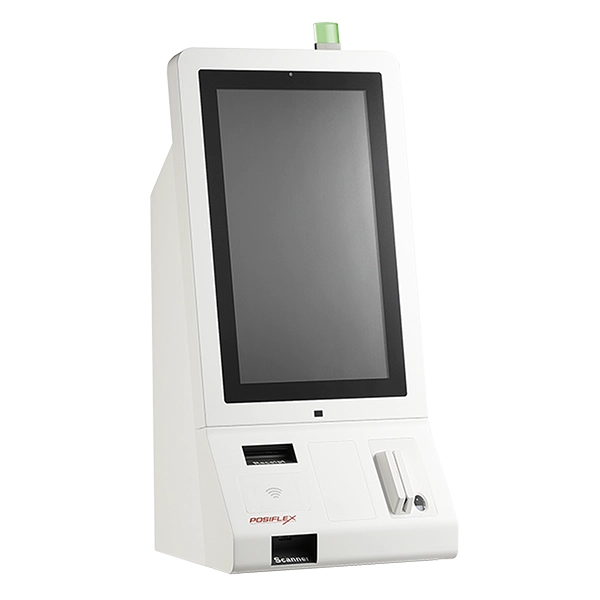

400 x 460 x 832 (Countertop)

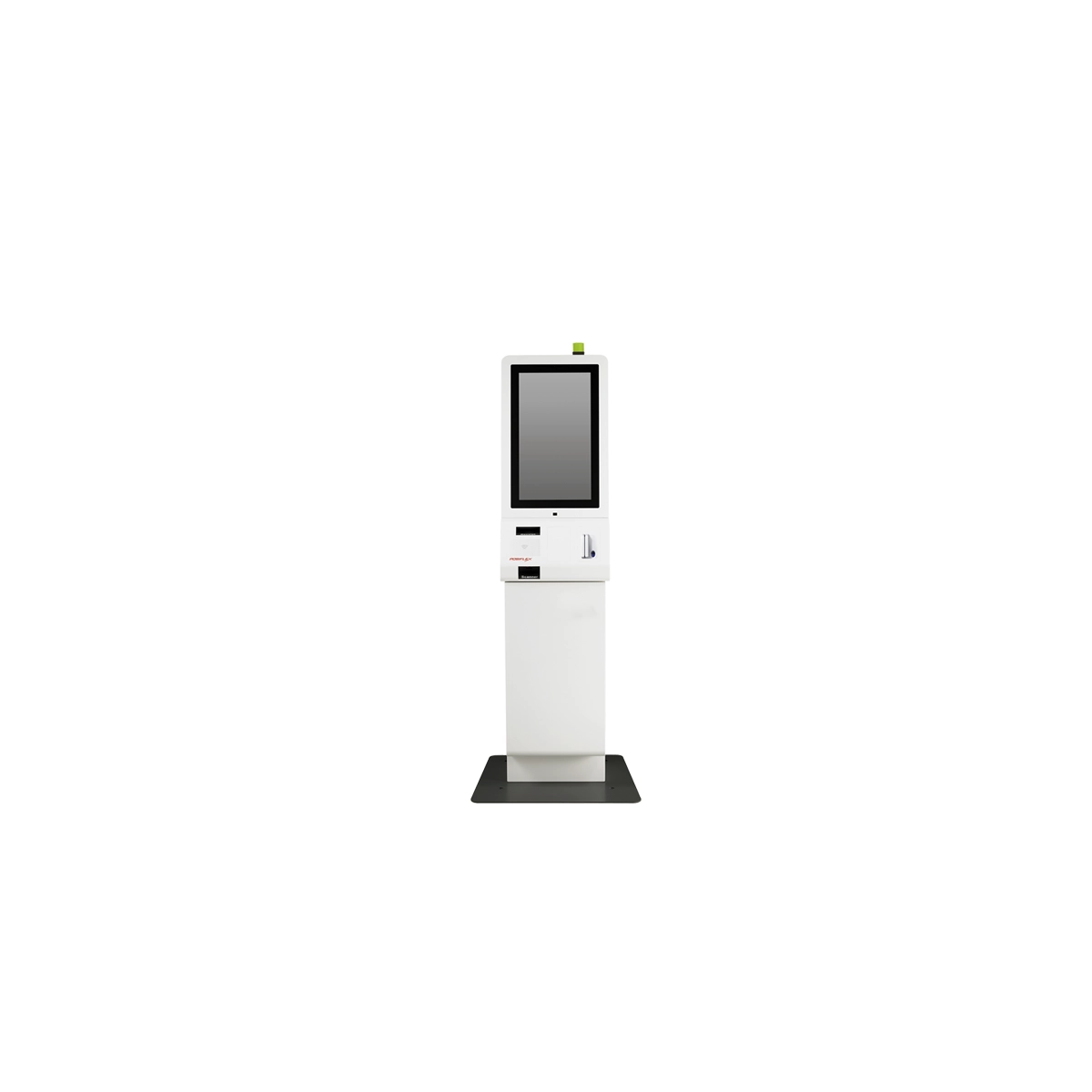

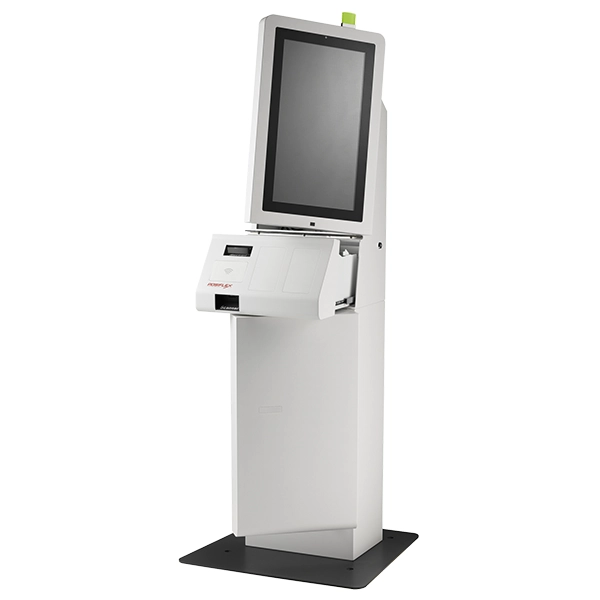

625 x 610 x 1620 (Floor-standing) |
| Weight(N. W. in kg) |
27.5 (Countertop)
60 (Floor-standing) |
|
| Environmental | Operating Condition |
0°C – 40°C, 20%RH – 90%RH
|
| Storage Condition |
-20°C – 70°C, 10%RH – 90%RH
|
|
| Standard Components | Status Indicator |
RGB Color LED Indicator
|
| Proximity Sensor |
1. Range from 45cm ~ 80cm (for dark color object)
2. Range from 45cm ~ 150cm (for light color object) |
|
| Camera Module |
1MP wide angle camera
|
|

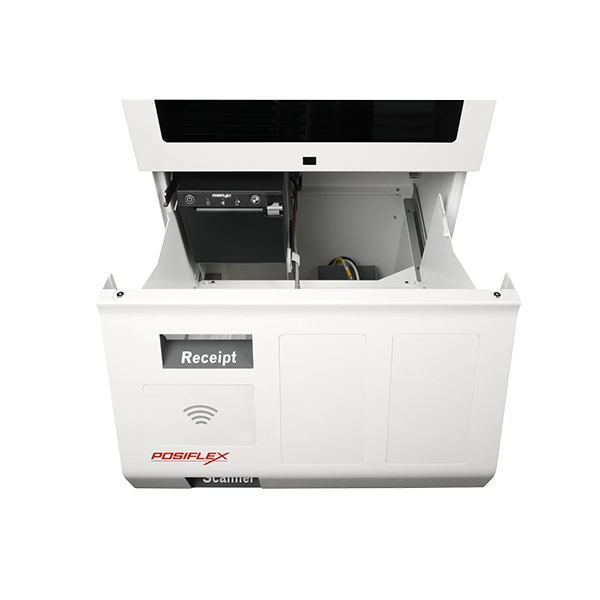

| Printer Module |
3″ thermal printer w/auto cutter, 200 mm/sec (max.)
|
|
| Optional-Components | Status Indicator (Optional) |
N/A
|
| Scanner Module |
2D Barcode scanner
|
|
| EMV Payment Device Bracket Support |
Custom bracket support for various EMV payment devices
(Posiflex does not sell the EMV payment devices, but can provide bracket support with an additional charge) |
|
| MSR |
3 tracks ISO or JISII (HID/VCOM selection)
|
|
| Fingerprint Sensor |
Optical type
|
|
| NFC/RFID Reader |
Support ISO/IEC 14443-A&B (MIFARE), JIS x 6319-4 (Felica), ISO/IEC 15693, NFC protocols – tag read/write (ISO/IEC-18092)
|
|
| 4G / LTE Communication |
N/A
|
|
| PowerGuard |
N/A
|
|

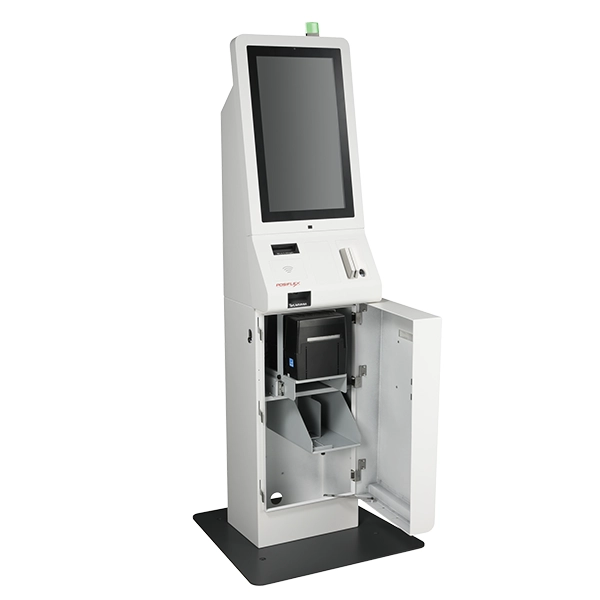

| Payment Handling for Pedestal PT-200BC |
Bill Acceptor: Storing up to 900 notes
Card Dispenser: Integrated RFID Reader/Writer, supporting ISO 14443 Type A/B contactless cards; storing up to 262 cards |
|
| Payment Handling for Pedestal PT-300 |
Ticket Printer: Fanfolded ticket printer for ticket thickness: .004” to .011”, ticket width: 2.0” to 3.25”
|
|
| Payment Handling for Pedestal PT-500 |
Pager Dispenser: Storing up to 40 pagers; 2.5 sec dispense speed per pager
|
|
| WiFi |
M.2 WiFi/BT module
|
|
| Note |
1. Bill Acceptor & Card Dispenser can be set in the same pedestal PT-200BC, but only the pedestal PT-300 can accommodate Ticket Printer while pedestal PT-500 can only accommodate Pager Dispenser.
2. Pager/Receiver: Frequency of 430~460MHz; dimension & weight: 100 x 100 x 16.5 in mm/96 g Transmitter: Frequency of 440~460MHz; power supply: 5V/2A adapter; dimension & weight: 180 x 120 x 30 in mm/475 g |
|
