Eaton 7.7kW Single-Phase Switched Automatic Transfer Switch PDU, Two 200-240V IEC309 32A Blue Inputs, 16-C13 2-C19 Outlets, 2U, TAA

Description

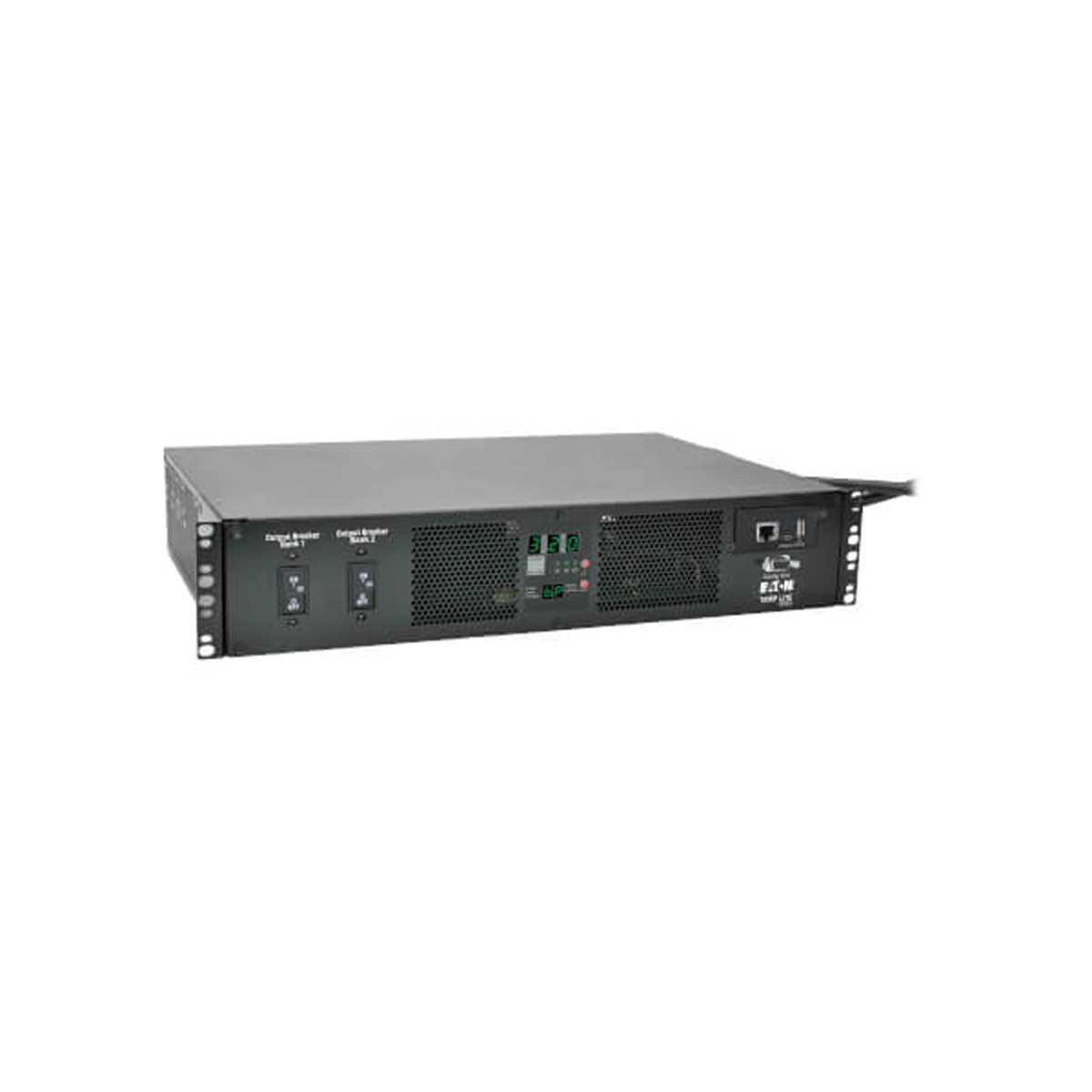

The PDUMH32HVATNET 7.7kW Single-Phase 200-240V Switched Automatic Transfer Switch / ATS PDU
provides remote power monitoring and enables redundant power for network devices with non-redundant
power supply configurations. Ideal for data centers and server rooms, it mounts in 2U of space in EIA
standard racks and features 18 switched outlets (16 C13 and two C19) in two load banks, each bank
protected by a 20A circuit breaker.

Dual 3-meter input cords with IEC309 32A Blue (2P+E) plugs connect to separate primary and secondary
single-phase 230V power sources. The PDU constantly evaluates the power quality of both input sources.
Dynamic solid-state (TRIAC) automatic transfer switching allows the PDU to switch to the secondary
source within 1–5 milliseconds should the primary source fail or become unstable to ensure your
connected equipment operates without interruption.
Built-in LX Platform network management interface. The Java-free LX Platform HTML5-based network
interface enables full remote access for PDU status monitoring and email notifications via secure web
browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an
Ethernet network. Optional EnviroSense2 modules (sold separate) provide a variety of environmental
monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3,
telnet, SSH, FTP, DHCP and NTP

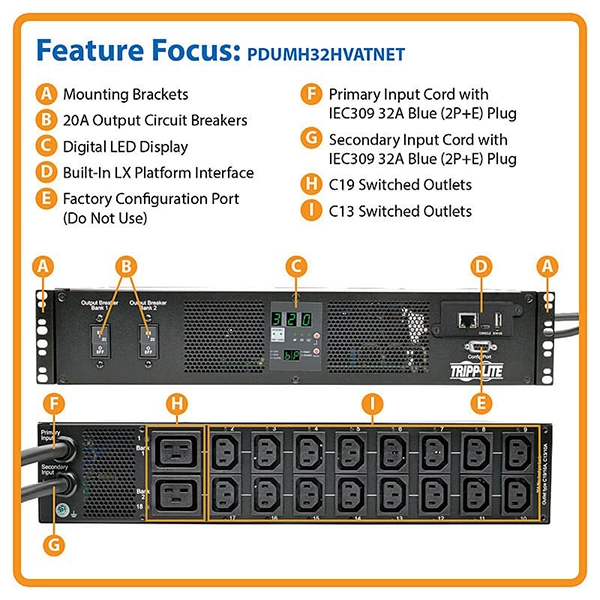

Features

Primary and Secondary Inputs for Power Redundancy The PDUMH32HVATNET rack PDU (rPDU) provides remote power monitoring and enables redundant power for network devices single-corded and other non-redundant power supply configurationsDual 3m input cords with IEC309 32A Blue (2P+E) plugs connect to separate primary and secondary single-phase power sources

Automatic Transfer Switching Dynamic solid-state (TRIAC) automatic transfer switchingSwitches to secondary power source if primary source fails or becomes unstable1–5 ms transfer time ensures uninterrupted operation of connected equipmentBuilt-in processor monitors both sources and prevents switching if secondary source is unavailable or of lower quality than primary source

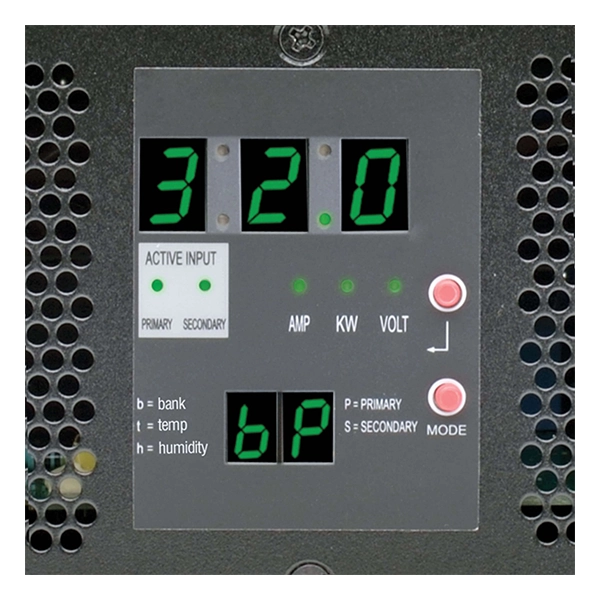

Multifunction Digital LED Display Reports source A and source B input power status and other information, including power availability, line voltage, frequency, amps, kilowatts and power factor Advanced LX Platform InterfaceLX Platform interface allows full remote access for power monitoring Highlights

• Single phase IEC309 200-240V 32A Blue (2P+E) input
• 16 C13 and 2 C19 230V switched outlets in 2 breakered load banks
• Compatible with Eaton Tripp Lite power cords to simplify deployment and enhance reliability
• Automatic transfer switching within 1–5 ms
• Ethernet network interface for remote access
• Digital LED display for real-time status and current monitoring

Package Includes PDUMH32HVATNET 7.7kW Single-Phase 200-240V ATS / Switched PDU Rack-mounting brackets Plug-lock cable retention sleeves USB configuration cable Owner’s manual

Broad Communications Compatibility Protocols supported include HTTP, HTTPS, SMTP, SNMPv1,
SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP
Breaker Protected Output Load Banks Protect each of 2 single-phase output banksFront-panel LED
indicates when breaker has tripped
Cord Retention Sleeves Set of Plug-lock output power cable retention sleeves prevent accidental
disconnection of connected devices
Mounts Horizontally in 2U of Rack SpaceCompatible with EIA-standard 19 in. 4-post racks and rack
enclosures
TAA-Compliant Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchase
