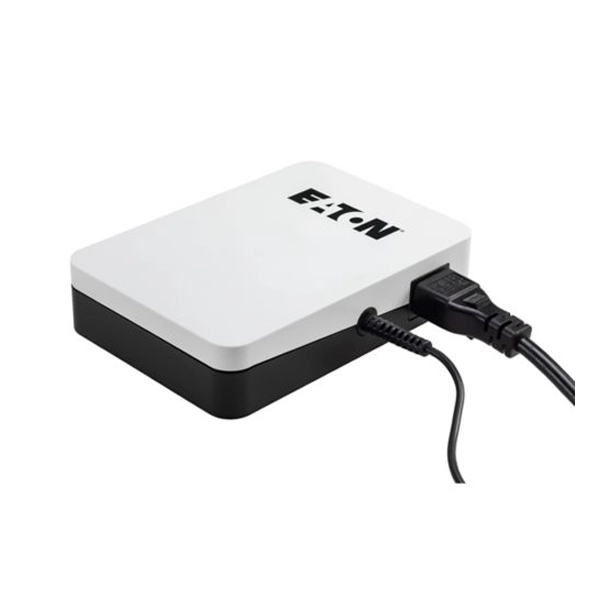

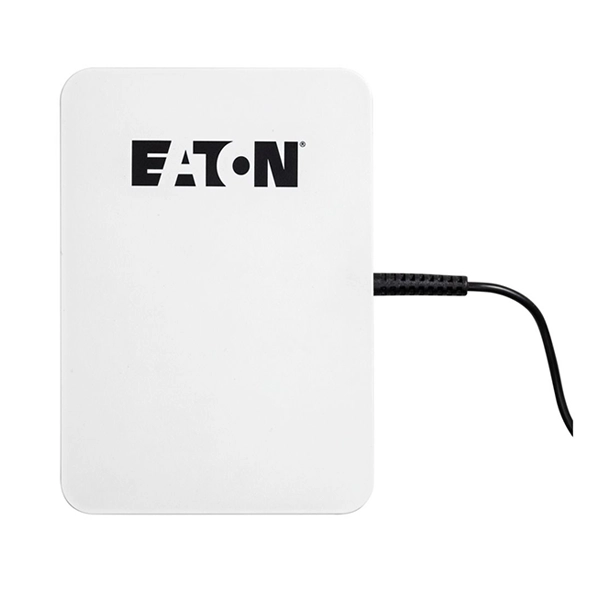

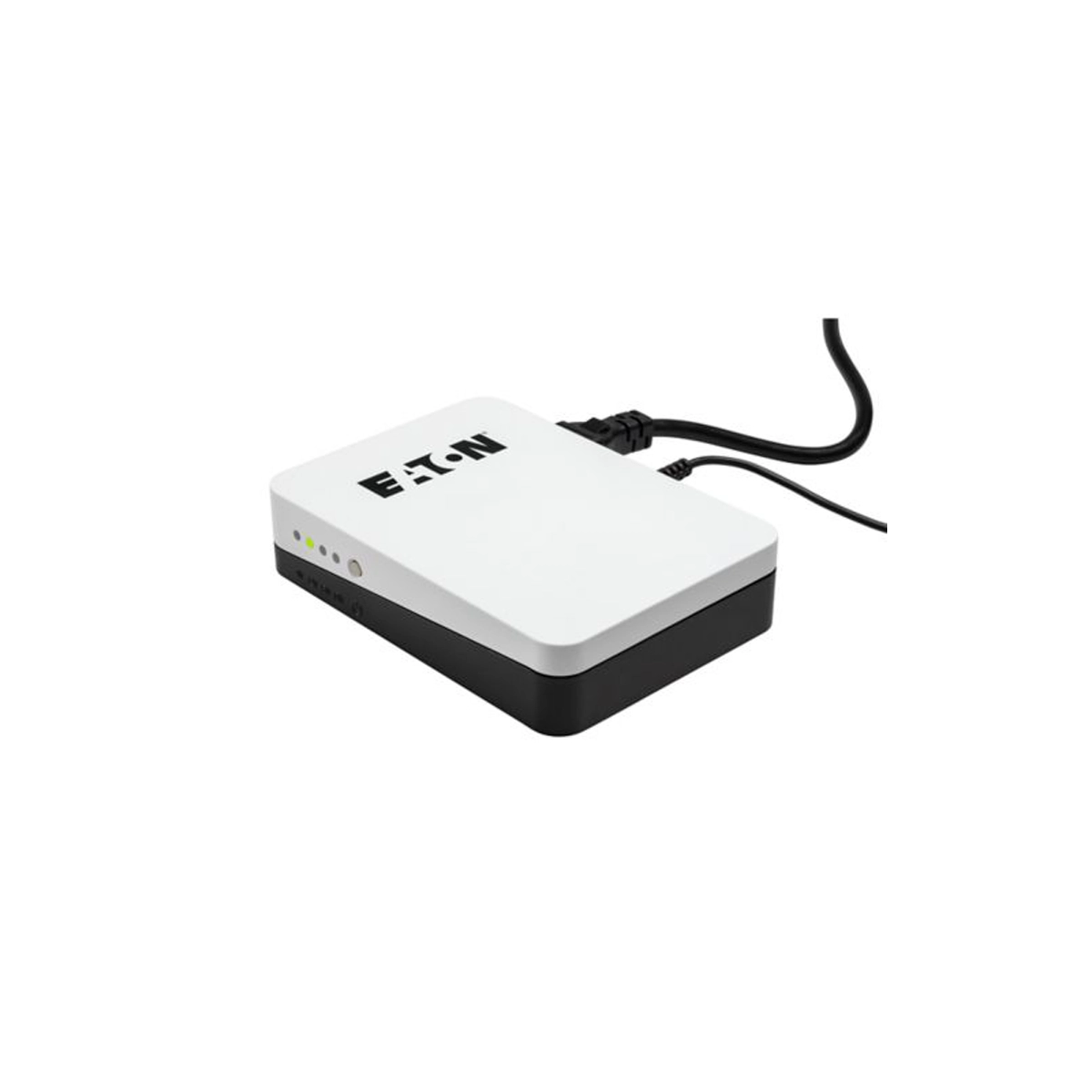

Eaton 3S 36W Mini UPS

Eaton 3S 36W Mini UPS 3SM36

Outputs: (4) Barrel, Output voltages: DC 9V-3A, 12V-3A, 15V-2.4, 19V-1.89A, Tower

Specifications:

• Product name: Eaton 3S Mini UPS
• Catalog number: 3SM36
• Product length/ depth: 136 mm
• Product height: 30 mm
• Product width 95 mm
• Product weight: 0.37 kg
• Compliances: CE Marked
• Certifications: CE, IEC/EN 62040-2, IEC 62477-1, IEC 62040-5-3
• Model code: Eaton 3S Mini 36W

Battery

• Battery type: Lithium-ion
• Runtime graph: View runtime graph
• Battery replacement: User replaceable

Electrical output

• Output nominal voltage: 9 V (12/15/19 V)
• Receptacle: (4) Barrel adaptators
• Wattage: 36W
• Topology: Offline

Electrical input

• Input connection: Other
• Input cord length: 1 m
• Input voltage range : 100-240 V
• Input frequency range : 46-70 Hz

Communication

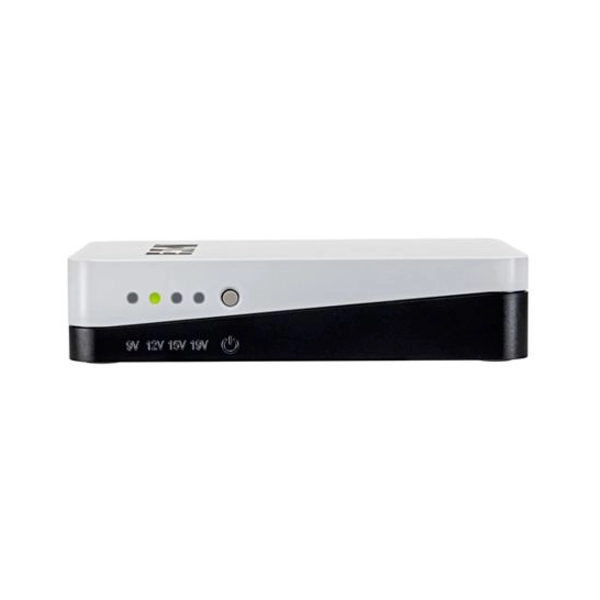

• User interface: LEDs

Enviroment

• Altitude: 2000 m
• Noise level: <25 dB at 1 meter
• Relative humidity: 0-85% non-condensing

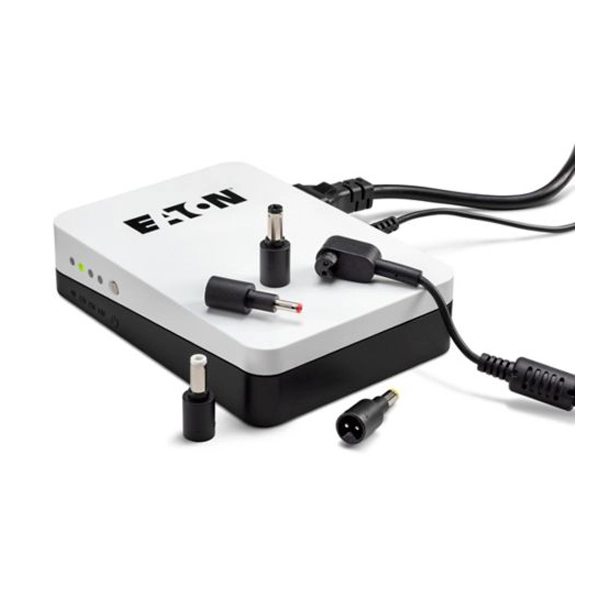

• Package content: UPS, Input cable, (4) Barrel adaptators, Quickstart guide
