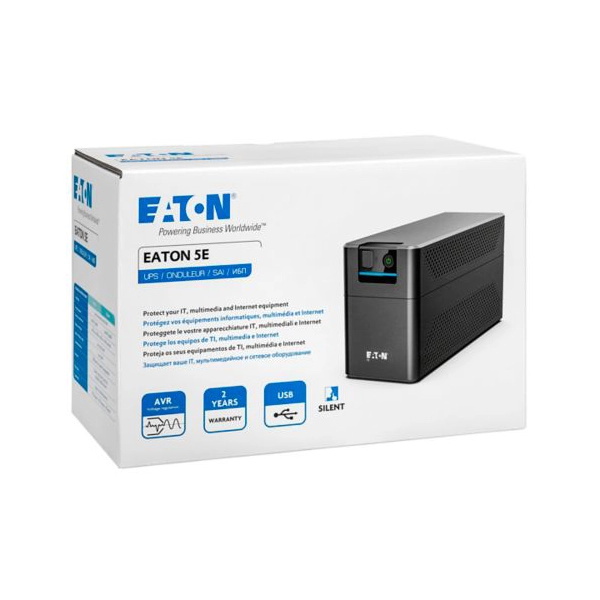

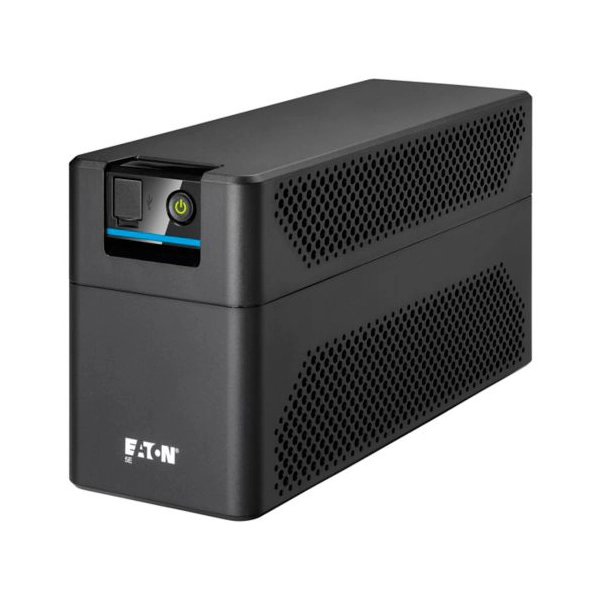

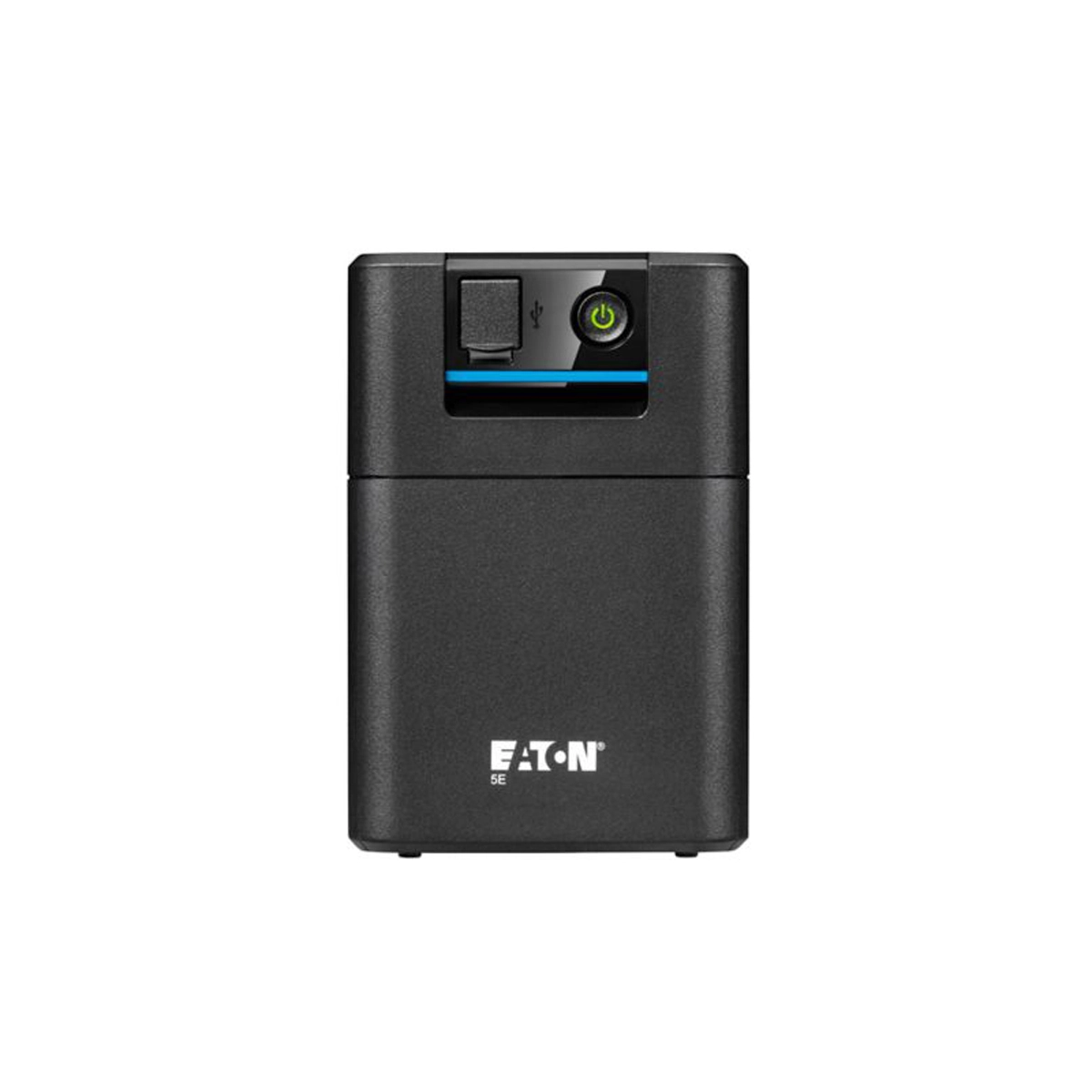

Eaton 5E Gen2 Line-Interactive UPS

Name: Eaton 5E Gen2 Line-Interactive UPS
Brand: Eaton
SKU: MST10104
Availability: InStock

Price range: E1,399.00 through E3,999.00

The Eaton 5E Gen2 Line-Interactive UPS (Uninterruptible Power Supply) is a reliable power protection solution designed for various professional and corporate environments

Select Volt-Ampere

1200VA
1600VA
2200VA
700VA
900VA

Clear

Guaranteed Safe Checkout

SKU: MST10104 Categories: Electronics, Hardware, Power Supplies & Batteries, Safety & Security Brand: Eaton

General Description

Line-Interactive Technology: This UPS uses line-interactive technology to stabilize output voltage and protect against power surges and voltage fluctuations. It actively maintains a steady power supply to connected equipment.

Battery Backup: Equipped with a built-in battery, this UPS can supply power to connected devices during power outages or voltage drops. This feature ensures uninterrupted operation and data protection for critical equipment.

Multiple Outlets: Typically, the UPS provides multiple power outlets, allowing you to connect various devices, including computers, servers, networking equipment, and more. These outlets often offer surge protection as well.

Monitoring and Management: Some UPS models, including the Eaton 5E Gen2 series, include monitoring and management features. These may involve USB or serial ports for connecting to a computer, enabling you to use software to monitor UPS status, configure settings, and receive alerts.

Compact Design: The UPS typically features a compact and space-saving design, making it suitable for use in office environments or server rooms with limited space.

Voltage Regulation: Line-interactive UPS devices like this one can regulate output voltage to compensate for variations in input voltage, ensuring a stable power supply to connected equipment.

Its capacity, line-interactive technology, and battery backup features help safeguard critical equipment from power disruptions and voltage irregularities, ensuring the uninterrupted operation of essential devices.

Eaton 5E Gen2 700VA 360W Line-Interactive UPS

Specifications:

Secondary frequency- MAX: 60 Hz
Wattage: 360 W
Form factor: Tower
Includes network card: No
Input connection: C14
Input voltage – MIN: 140 V
Output voltage – MAX: 257 V
Secondary frequency – MIN: 50 Hz
Software capaility: Eaton UPS Companion (enables safe system shutdown, energy usage metering and configuration of UPS settings)
Battery type: Sealed, lead-acid
Efficiency: 95
Construction type: Free standing model
Output voltage:- MIN: 195 V
Colour: Black
Extended battery capability: No
Output voltage range: 195-257 V
Topology Line-interactive
Surge protection: Yes
Input nominal voltage range: 230V default (220/230/240V)
Input frequency range: 45-63 Hz
Internal Bypass: No
Input voltage: – MAX: 300 V
Voltage type: AC
Phase (OUTPUT): 1
Battery management: Automatic battery test, deep-discharge protection, cold-start capable
Auto shutdown function: Yes
Number of outputs C13: 4
Operating temperature: – MIN: 0 °C
VA rating: 700 VA
Potential free switch contact: No
Receptacle: (4) C13
Phase (INPUT): 1
Feed type: 1
Runtime graph: View runtime graph
User interface: LEDs
Battery quantity: 1
Operating temperature: – MAX: 40 °C
Voltage: 230V
Hot swap power: No
Temperature range: 0° to 40°C (32° to 104°F)
Ethernet interface: No
Communication: USB port (HID compliant)
Relative humidity: 0-90% non-condensing
Output apparent power: 700 VA
Rack mounting kit: No
Output frequency: 50/60 Hz
Type of interface : USB
Primary frequency – MIN: 45 Hz
Battery ratings: 12 V / 7 Ah
Type: UPS
Output nominal voltage : 230V
Expansion slot: No
Input voltage : 140-300 V
Nominal frequency: 50/60 Hz

Eaton 5E Gen2 900VA 480W Line-Interactive UPS 5E900UI

Specifications:

Secondary frequency – MAX: 60 Hz
Wattage: 480 W
Form factor: Tower
Includes network card: No
Input connection: C14
Input voltage – MIN: 140 V
Output voltage – MAX: 257 V
Secondary frequency – MIN: 50 Hz
Software compatibility: Eaton UPS Companion (enables safe system shutdown, energy usage metering and configuration of UPS settings)
Battery type: Sealed, lead-acid
Efficiency: 95
Construction type: Free standing model
Output voltage – MIN: 195 V
Colour: Black
Extended battery capability: No
Output voltage range: 195-257 V
Topology: Line-interactive
Surge protection: Yes
Input nominal voltage: 230V default (220/230/240V)
Input frequency range: 45-63 Hz
Internal bypass: No
Input voltage – MAX: 300 V
Voltage type: AC
Phase (OUTPUT): 1
Battery management: Automatic battery test, deep-discharge protection, cold-start capable
Auto function shutdown: Yes
Number of outputs C13: 4
Operating temperature – MIN: 0 °C
VA rating 700 VA
Potential free switch: No
Receptacle: (4) C13
Phase (INPUT): 1
Feed type: 1
Runtime graph: View runtime graph
User interface: LEDs
Battery quantity: 2
Operating temperature – MAX: 40 °C
Voltage: 230V
Hot swap power: No
Temperature range: 0° to 40°C (32° to 104°F)
Ethernet interface: No
USB port (HID compliant)
Relative humidity: 0-90% non-condensing
Output apparent power: 900 VA
Rack mounting kit: No
Output frequency: 50/60 Hz
Type of interface : USB
Primary frequency – MIN: 45 Hz
Battery rating: 12 V / 9Ah
Type: UPS
Output nominal voltage: 230V
Expansion slot: No
Input voltage range: 140-300 V
Nominal frequency: 50/60 Hz
Primary frequency – MAX: 63 H

Eaton 5E Gen2 1200VA 660W Line-Interactive UPS 5E1200UI

Specifications:

Secondary frequency- MAX: 60 Hz
Wattage: 660 W
Form factor: Tower
Includes network card: No
Input connection: C14
Input voltage – MIN: 140 V
output voltage – MAX: 257 V
Second frequency – MIN: 50 Hz
Software compatibility: Eaton UPS Companion (enables safe system shutdown, energy usage metering and configuration of UPS settings)
Battery type: Sealed, lead-acid
Efficiency: 95
Construction type: Free standing model
Output voltage- MIN: 195 V
Colour: Black
Extended battery capability: No
Output voltage range: 195-257 V
Topology: Line-interactive
Surge protection: Yes
Input nominal voltage range: 230V default (220/230/240V)
Input frequency range: 45-63 Hz
Internal bypass: No
Input voltage – MAX: 300 V
Voltage type: AC
Phase (OUTPUT): 1
Battery management: Automatic battery test, deep-discharge protection, cold-start capable
Auto shutdown function: Yes
Number of outputs C13: 6
Operating temperature – MIN: 0 °C
VA rating: 1200 VA
Potential free switch contact: No
Receptacle: (6) C13
Phase (INPUT): 1
Feed type: 1
Runtime graph: View runtime graph
User interface: LEDs
Battery quantity: 2
Operating temperature – MAX: 40 °C
Voltage: 230V
Hot swap power: No
Temperature range: 0° to 40°C (32° to 104°F)
Ethernet interface: No
