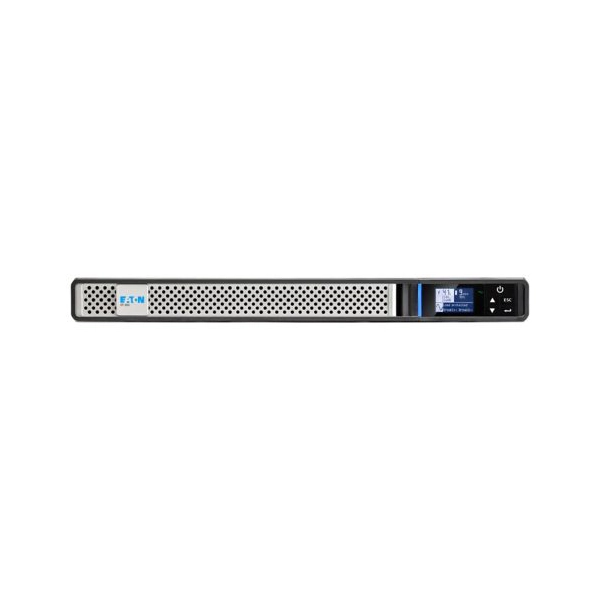

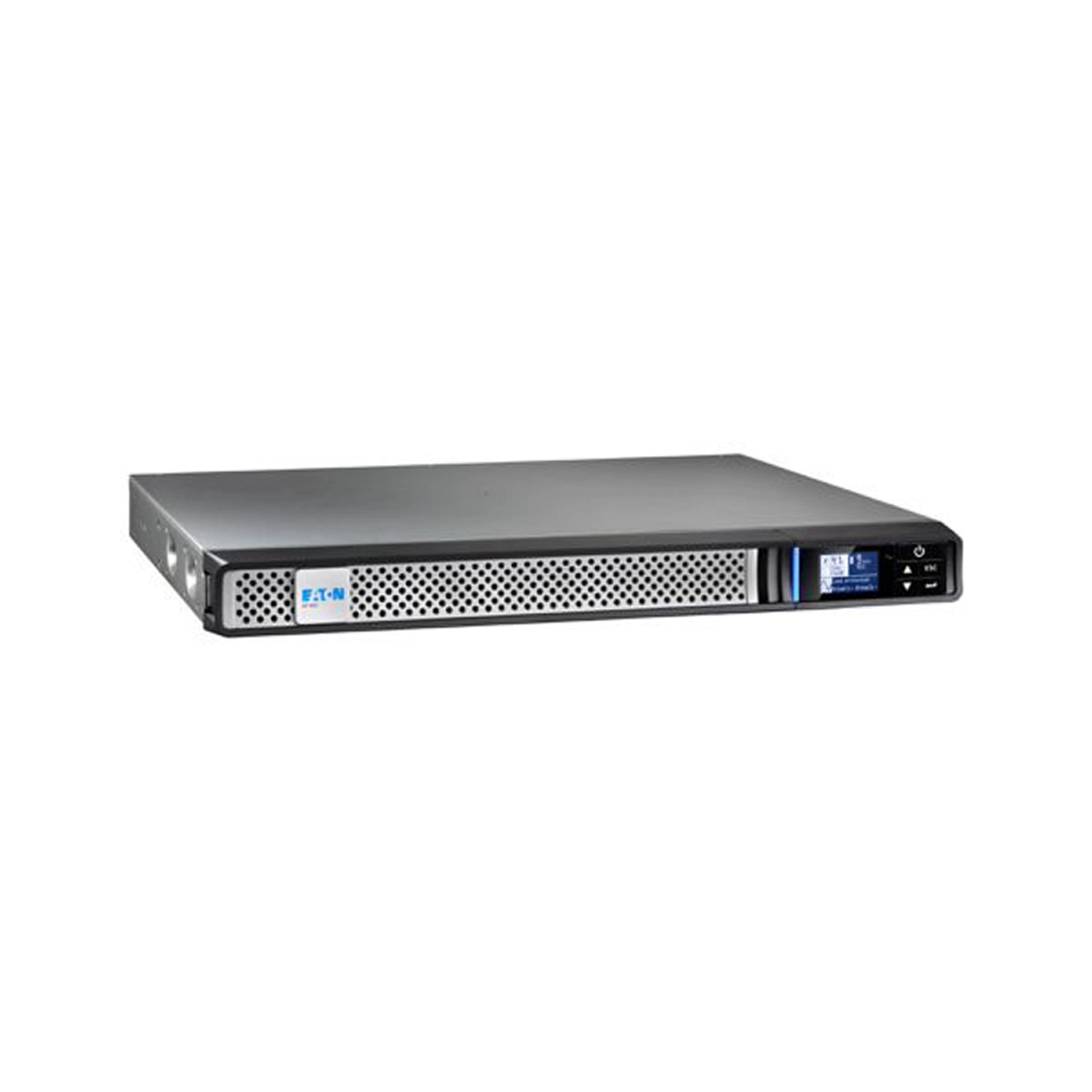

Eaton 5P Gen2 UPS

Features:

• Automatic Voltage Regulation (AVR)
• Delivers clean sinewave output

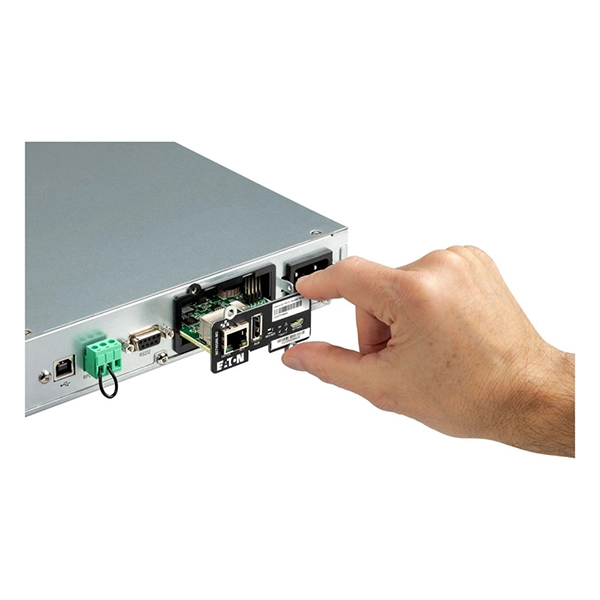

• 1 slot for optional com card (Network management card, Relay card or Network and Industrial card)
• Compatible with Virtual environments (VMware, Hyper-V, Citrix Xen, Redhat)
• Fully integrates with Eaton Brightlayer Software suite
• 1 USB port + 1 serial port
• Advanced Battery Management (ABM+) technology to increase battery lifetime and improve life time prediction accuracy
• Next-generation graphical LCD display
• Hot swappable batteries
• Remote reboot and runtime optimization thanks to 2 manageable outlet groups
• Topology: Line-interactive
• Form factor: Rack
• Rack size: 1U
• Construction type: 482.6 mm (19 inch) device
• Color: Black/silver
• Enclosure: Black/silver
• Rack mounting kit: Yes
• Package contents: Rack-mounting kit, Cable locking system, USB cable, (2) IEC-IEC cables, Quickstart guide, Safety instructions
• Auto shutdown function: Yes
• Primary frequency – max: 70 Hz
• Primary frequency – min: 47 Hz
• Input connection: C14
• Input nominal voltage: 230V default (200/208/220/230/240V)
• Nominal frequency:50-60 Hz
• Input frequency range: 47-70 Hz (50 Hz system), 56.5-70 Hz (60 Hz system), 40 Hz in low sensitivity mode
• Receptacle: (4) C13:
• Output waveform: Sine wave
• Voltage: 230V
• Output nominal voltage: 230V default (200/208/220/230/240V)
• Feed type: 1
• Voltage type: AC
• Runtime graph
• Battery management: ABM or constant voltage charging method (user selectable), automatic battery test, deep discharge protection
• Battery replacement: User replaceable
• Battery rating: 6 V / 9 Ah
• Battery type: Lead-acid maintenance-free (replaceable)
• Extended battery capability: No
• Runtime at half load: 7 min
• Communication: USB port (HID compliant), Serial port (RS232), Mini-terminal block for remote On/Off and Remote Power Off, Dry contacts (2 outputs, optocoupler, RJ)
• Expansion slots: One slot for optional communication card
• Ethernet interface: No
• Includes network card: No
• Software compatibility: Eaton Brightlayer Software suite
• User interface: Multilingual graphical LCD display
• Type of interface: Other
• Potential free switch contact: Yes
• Altitude: 3000 m
• BTU Rating: Online: 53, Battery: 461 BTU/hr
• Noise level: <35 dB at 1 meter
• Relative humidity: 0-90% non-condensing
• Temperature range: 0° to 40°C (32° to 104°F)
• Input voltage – max: 294 V
• Input voltage – min:150 V
• Output voltage – max: 240 V
• Output voltage – min: 200 V
• Secondary frequency – max: 60 Hz
• Secondary frequency – min: 50 Hz
• Battery quantity: 2
• Efficiency at max. load: 97
• Input voltage range: 160-294 V (adjustable to 150 V-294 V)
• Output frequency: 50/60 Hz
• Output power factor: 0,8
• Output voltage range: 230 V (+6%/-10%)
• Phase (input): 1
• Phase (output):1
• Runtime at full load:1
• Communication interface:RS232, USB
• Power consumption: 16 W
• USB interface: Yes
• With communication interface RS-232:Yes
