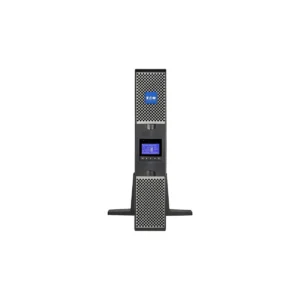

The Eaton 9PX UPS series delivers energy-efficient power protection for small-to-medium-sized data centres, IT rooms, and critical infrastructure. IT and facilities managers who are worried about energy costs and looking for next-generation power protection solutions will find the 9PX to be a great choice. It offers online double-conversion protection while using 40% less energy, making it a great choice for both groups.
The lithium-ion variant has an enhanced battery life of eight to ten years and technology that allows for set-it-and-forget-it deployment without the maintenance and refresh issues of a lead-acid batteries.
Energy Star certified, the Eaton 9PX offers the best level of energy and cooling expense savings. 9PX can measure energy consumption down to the outlet group level. Monitor kWh numbers using the LCD or Eaton’s Intelligent Power Software.
With an optional network card and Eaton’s Intelligent Power Software Suite, which works with all major operating systems, the 9PX works well with leading virtualization environments and cloud orchestration platforms.
- Runtime at 70% load: UPS only 12m / 1 EBM 32m / 2 EBMs 51m / 3 EBMs 70m / 4 EBMs 89m
- Lithium-ion batteries deliver expanded battery life of 8–10 years
- Online double-conversion technology to constantly monitor power conditions & regulate voltage & frequency
- Internal bypass allows service continuity in case of internal fault
- Unity power factor (VA=W) delivers 11% more power than other UPSs
- Versatile 2U rack/tower format (includes rack-mounting kit)
- Innovative graphical LCD display brings all operating information at first sight
- Load segment control enables prioritised shutdowns of non-essential equipment during outages
- Up to 4 external hot-swappable battery modules can be added for longer power availability
- (1) USB port + (1) serial RS232 port + (1) mini-terminal block for remote ON/OFF + (1) mini-terminal block for remote power off + (1) mini-terminal block for output relay
- (1) slot for Network-M2, Network-MS, ModBus-MS or Relay-MS management cards
- Input: (1) C20 (16A)
- Output: (8) IEC C13 (10A) + 2 IEC C19 (16A)
- Internal bypass: Yes
- Hot swap power: No
- Auto shutdown function: Yes
- Primary frequency – max: 70 Hz
- Primary frequency – min: 40 Hz
- Input connection: C20
- Input cord length: 1.8m
- Input nominal voltage: 230V default (200/208/220/230/240V)
- Nominal frequency: 50/60 Hz
- Input frequency range: 40-70 Hz
- Input power factor: >.99
- Receptacle: (8) C13, (2) C19
- Number of output connections French standard (Type E): 0
- Number of Outputs C13: 8
- Number of Outputs C19:2
- Number of outputs hardwired: 0
- Num of Outputs PC (SCHUKO): 0
- Output waveform: Sine wave
- Voltage: 230V
- Output nominal voltage: 230V default (200/208/220/230/240V)
- Feed type: 1
- Voltage type: AC
- Runtime graph
- Battery management: Lithium-ion batteries with battery management system, Automatic recognition of external battery units
- Battery replacement: Hot-swappable internal batteries and extended battery modules (EBMs)
- Battery type: Lithium-ion
- Extended battery capability: Yes
- Runtime at half load: 22.5 min
