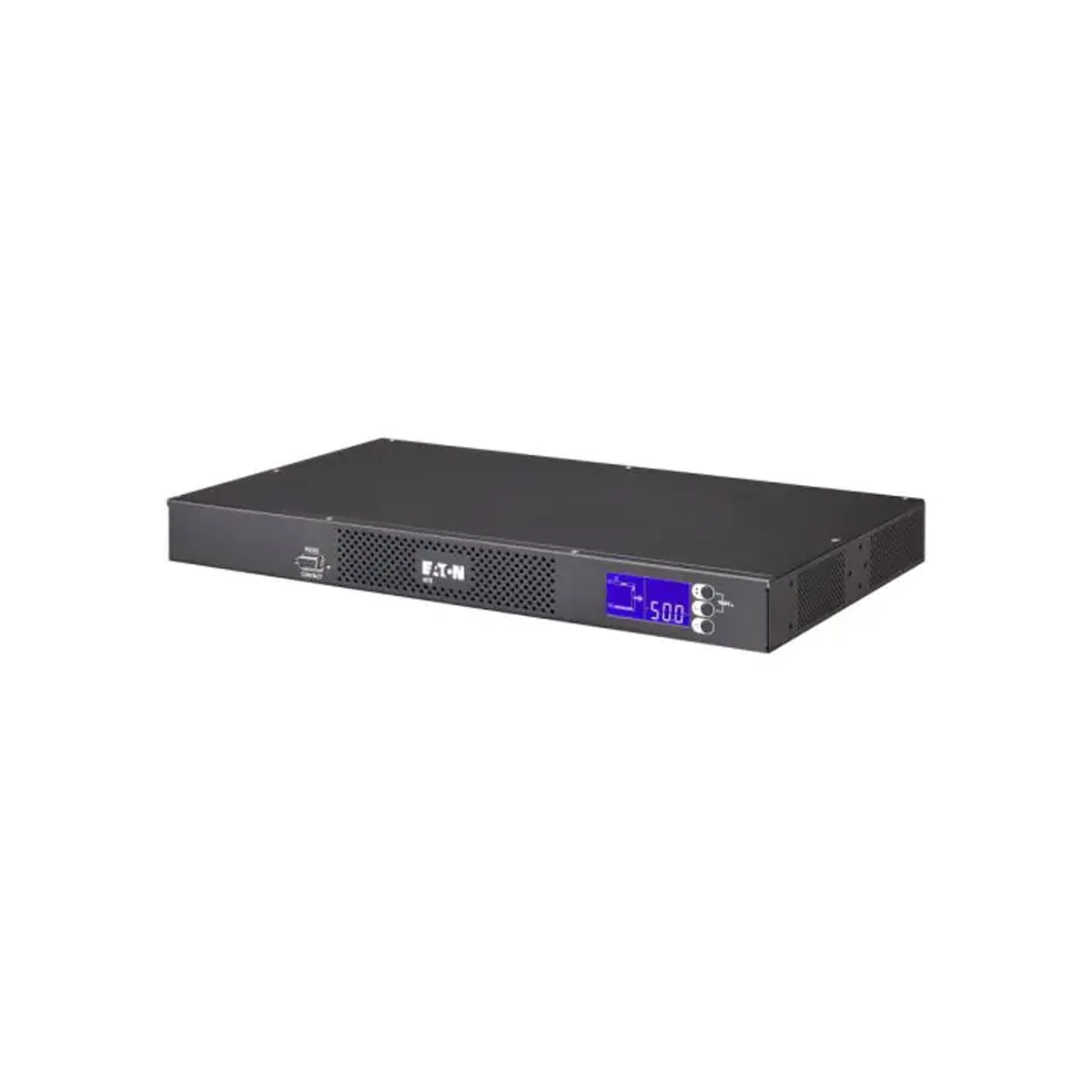

Eaton ATS 16A

Features

• Automatic transfer switch (ATS)
• Provide power supply redundancy for single connection equipment
• 1U rack height
• LCD user interface
• Nominal current: 16A
• Input: (2) IEC C20 + (2) input cables
• Output: (8) IEC C13 + (1) IEC C19

Seamless power transfer
Eaton ATS are designed to provide power supply redundancy
for single connection equipment. With ATS, power from two
independent sources can be supplied to IT equipment, which
have only one input power supply.

Redundancy
Only advanced servers are equipped with a dual electrical power
supply. The majority of network devices and entry-level servers
have a single connection with only one electrical power input.
With the Eaton ATS, critical equipment can be connected
to a redundant power supply.
Both sources (primary and secondary) are connected in a
straightforward manner to the ATS in the base of the rack.
The Eaton ATS then controls the redundancy of this electrical
power supply. If the primary source fails, transfer to the secondary
source is automatic and instantaneous.

Simple and cost-effective
Considering the advanced design of the Eaton ATS, these are
highly competitive in price compared with the ‘dual power supply’
options available from suppliers of networking equipment.
1U high, the unit can be installed easily within the rack.
Metering and basic configuration capabilities are possible through
ATS 16’s LCD.

Network connectivity
The ATS 16 Netpack and ATS 30 provide network connectivity.
This allows users to access, configure and manage units from
remote locations.
