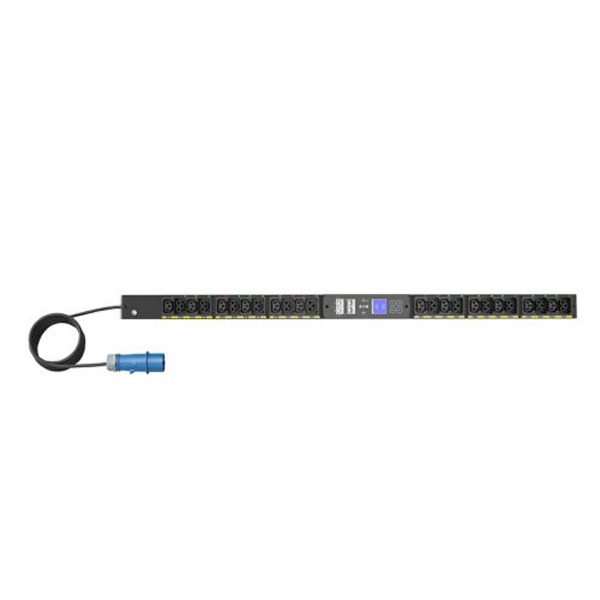

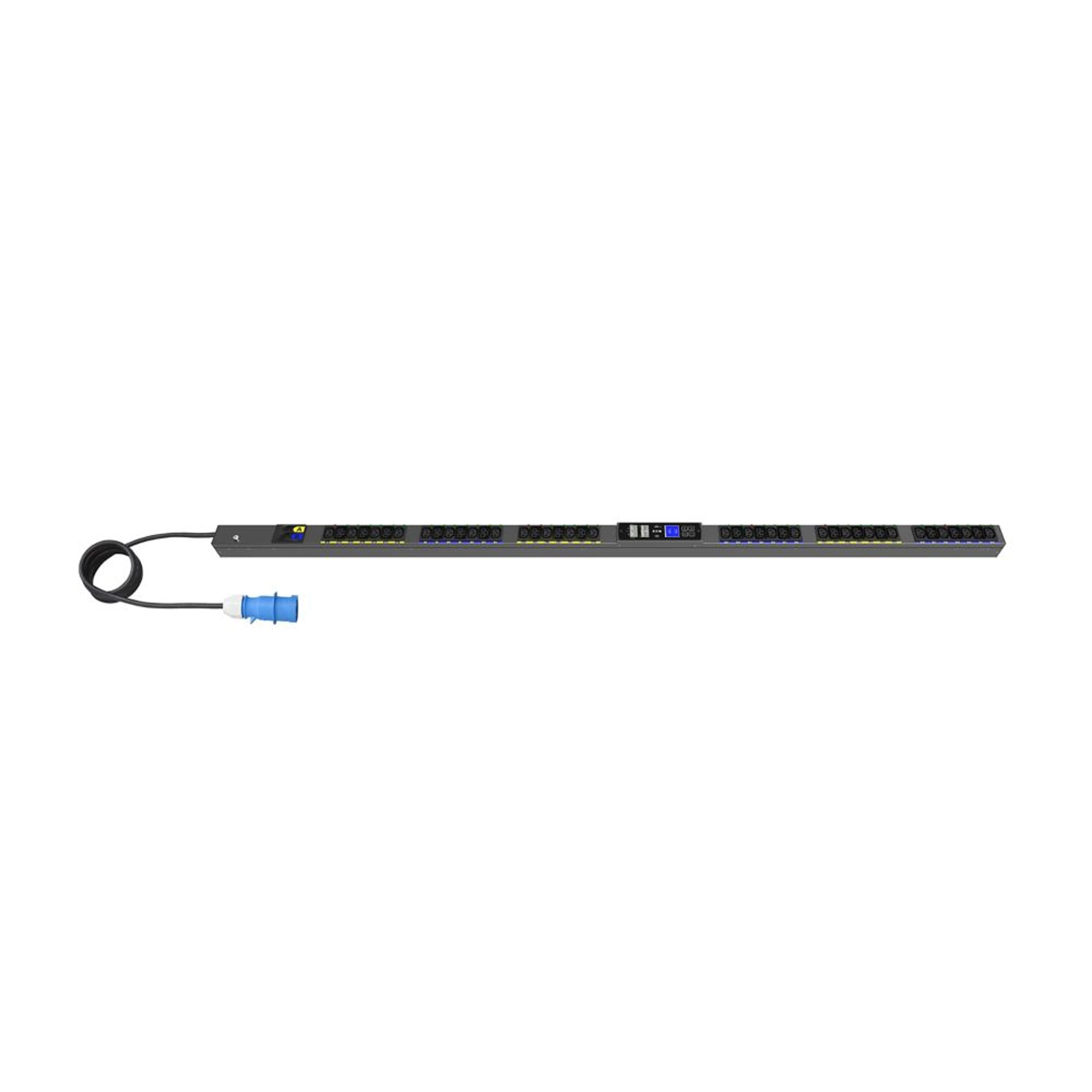

Eaton Rack PDU G4 Managed

 General Features

• High retention outlets designed to securely fit standard power cords and support P-Lock power cords
• Cybersecurity standards UL 2900-1 and IEC 62443-4-2
• Hot-Swap network control module
• Network Cascading, connect up to 32 PDUs via network loop
• Power sharing between two network modules PDUs ensures constant access to PDU data & sensors
• 1% IEC Class 1 billing grade measurement accurancy
• Gigabit network card with 2x Gb ports
• Support protocols RestAPI, Modbus TCP, SNMP, LDAP, HTTPS
• 1% measurement accuracy at the outlet level (V, W, A)
• Outlets control for On/Off, reboot, and sequential start-up capabilities

Accessories

• Rack PDU
• Rack mounting accessories
• Quickstart guide
• Safety Instructions

PDU G4 MA 0U 309 16A 3P 24xC13,18xC39

Input connection : IEC-60309 16A 3ph
Wattage : 11 kW max
Amperage Rating| : 16A
Input voltage : 240/415V
Phase : Three-phase
Frequency rating : 50/60 Hz
Cord length : 3m

PDU G4 MA 0U 309 63A 1P 24xC13,18xC39

Input connection : Other
Wattage : 14.4 kW max
Amperage Rating : 63A
Input voltage : 200-240V
Phase : Single-phase
Circuit breaker : (6) single-pole
Frequency rating : 50/60 Hz
Cord length ; 3m

PDU G4 MA 0U 309 16A 1P 12xC13,12xC39

Input connection : IEC-60309 16A 1Ph
Cord length : 3m
Wattage : 3.7 kW max
Amperage Rating : 16A
Input voltage : 200-240V
Phase : Single-phase
Frequency rating : 50/60 Hz
Outlets : (12) C13, (12) C39
Number of Outputs C13 : 12
Number of Outputs C19 : 12
Number of outputs (other) : 12

PDU G4 MA 0U 309 32A 3P 24xC13,18xC39

Input connection : IEC-60309 32A 3Ph
Wattage : 22 kW max
Amperage Rating : 32 A
Input voltage : 240/415V
Phase : Three-phase
Circuit breaker : (6) single-pole
Frequency rating : 50/60 Hz
Cord length : 3m

PDU G4 MA 0U 309 32A 1P 24xC13,18xC39

Input connection: IEC-60309 32A 1Ph
Wattage : 7.4 kW max
Amperage Rating : 32 A
Input voltage : 200-240V
Phase : Single-phase
Circuit breaker : (2) single-pole
Frequency rating : 50/60 Hz
Cord length : 3m
