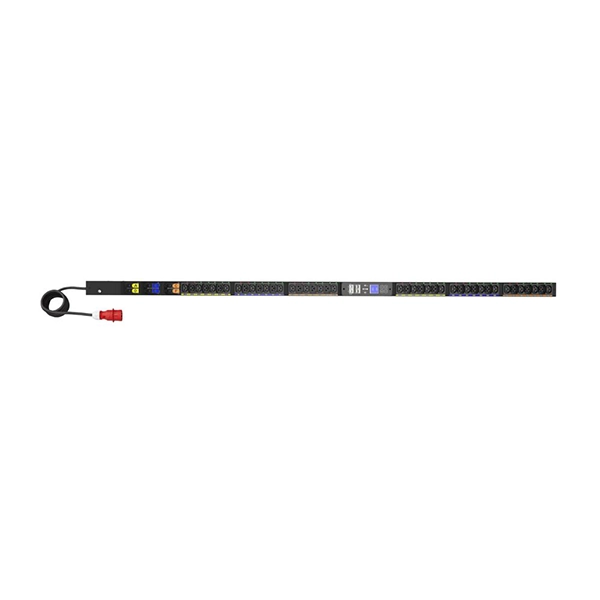

Eaton Rack PDU G4

General Discription

• Remote Site Management
• Versatile C39 outlet supports C14 or C20 power cord plug
• Cybersecurity standards UL 2900-1 and IEC 62443-4-2
• Hot-Swap network control module
• Network Cascading, connect up to 32 PDUs via network loop
• Power sharing between two network modules PDUs ensures constant access to PDU data & sensors
• 1% IEC Class 1 billing grade measurement accurancy
• Gigabit network card with 2x Gb ports
• Support protocols RestAPI, Modbus TCP, SNMP, LDAP, HTTPS
• Optional sensor Temperature/Humidity

PDU G4 BA 16a

Input connection: IEC-60309 16A 1Ph
Wattage : 3.7 kW max
Amperage Rating : 16A
Input voltage : 200-240V
Phase : Single-phase
Frequency rating : 50/60 Hz
Cord length : 3m

Electrical output
Outlets: (12) C13, (12) C39
Number of Outputs C13 : 12
Number of Outputs C19 : 12
Number of outputs (other) : 12
Number of outlets with earth pin : 24

PDU G4 BA 0U 309 32A 1P

Input connection: IEC-60309 32A 1Ph
Cord length: 3m
Wattage : 7.4 kW max
Amperage Rating : 32 A
Input voltage : 200-240V
Phase: Single-phase
Frequency rating : 50/60 Hz
Outlets : (24) C13, (18) C39
Number of Outputs C13 : 24
Number of Outputs C19 : 18
Number of outputs (other) : 18
Number of outlets with earth pin : 42
Circuit breaker : (2) single-pole

PDU G4 MI 0U 309 32A 1P

Electrical input
Input connection : IEC-60309 32A 1Ph
Wattage : 7.4 kW max
Amperage Rating : 32 A
Input voltage : 200-240V
Phase : Single-phase
Circuit breaker : (2) single-pole
Frequency rating : 50/60 Hz
Cord length : 3m

Electrical output
Outlets : (12) C13, (12) C39
Number of Outputs C13 : 12
Number of Outputs C19 : 12
Number of outputs (other) : 12
Number of outlets with earth pin : 24

PDU G4 MI 0U 309 63A 1P

Electrical input
Input connection: Other
Wattage: 14.4 kW max
Amperage Rating : 63A
Input voltage : 200-240V
Phase : Single-phase
Circuit breaker : (6) single-pole
Frequency rating : 50/60 Hz
Cord length : 3m

Electrical output
Outlets : (24) C13, (18) C39
Number of Outputs C13 : 24
Number of Outputs C19: 18
Number of outputs (other): 18
Number of outlets with earth pin: 42

PDU G4 MA 0U 309 32A 3P

Electrical input
Input connection : IEC-60309 32A 3Ph
Wattage: 22 kW max
Amperage Rating: 32 A
Input voltage : 240/415V
Phase: Three-phase
Frequency rating: 50/60 Hz
Cord length: 3m

Electrical output
Outlets : (24) C13, (24) C39
Number of Outputs C13: 24
Number of Outputs C19: 24
Number of outputs (other): 24
Number of outlets with earth pin: 48
