Eaton EPDU MI Eaton G3+ Metered Input rack

General Discription

Features

• Phase Metering, Circuit Breaker Current Metering and Input Metering
• Hot-Swap Control module with advanced LCD
• Optional Temperature/Humidity sensor
• Built-in IEC outlet eGrip retention, retains all standard IEC plugs
• Built-in outlet P-lock system, locking mechanism with P-lock power cords
• Daisy-Chain up to 8 PDUs, reduce network infratsructure costs
• Power chain monitoring & Real time Intelligence on your Data Center, via Eaton Intelligent Power Manager
• 60°C Operating temperature
• Colour-coded outlet and branch circuits for simple load balancing
• Hydraulic–Magnetic Circuit Breakers with accidental trip protection

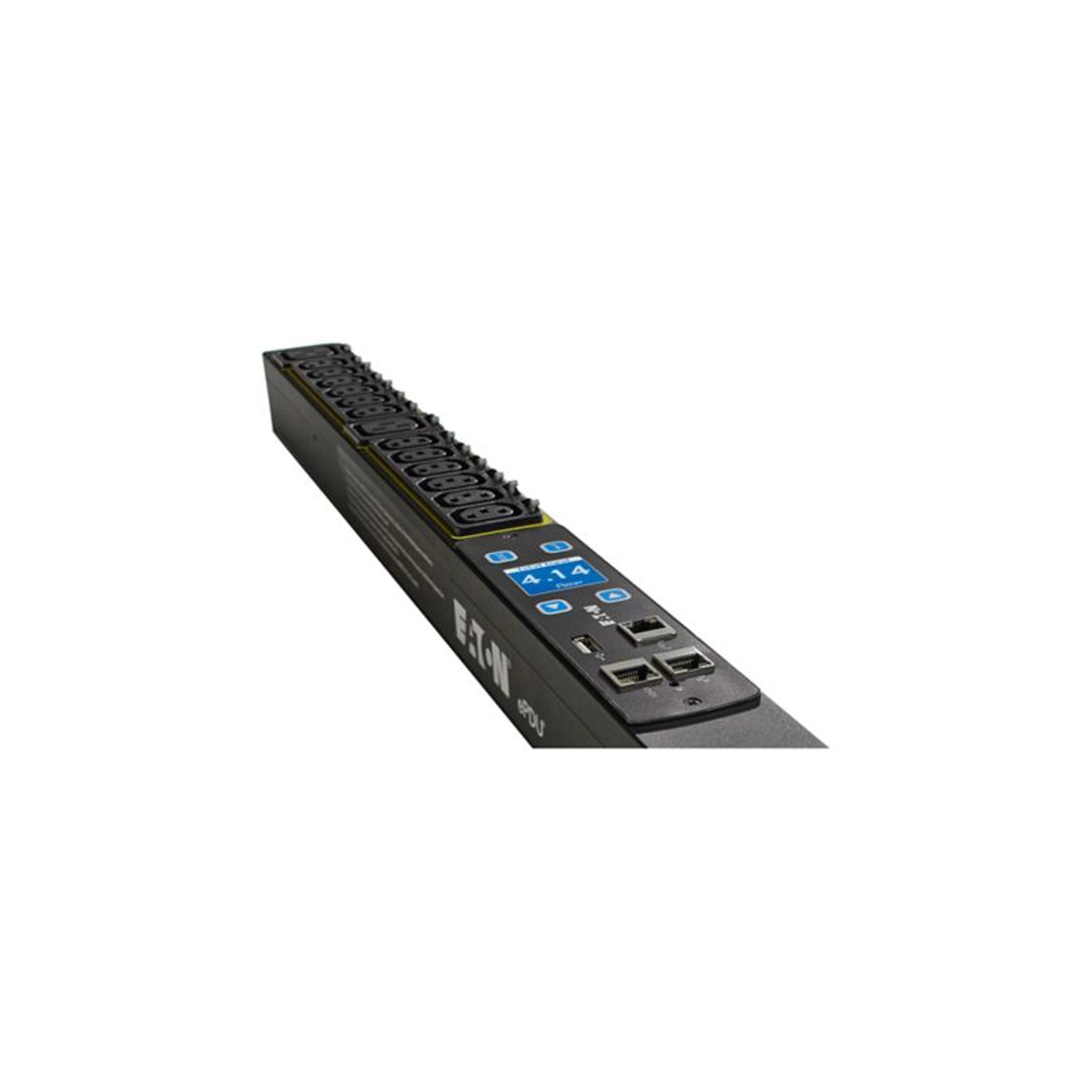

EPDU MI 0U (309 63A 3P)18xC13:12xC19

specifications

Product Name : Eaton Rack PDU G4
Catalog Number : EMIB352
EAN : 3553340696909
Product Length/Depth : 1829 mm
Product Height : 52 mm
Product Width : 65 mm
Product Weight : 10.2 kg
Compliances : CE Marked ,RoHS Compliant ,EAC
Certifications : CE ,IEC 60950-1 ,EN 55024:2010

Electrical input

Input connection : IEC-60309 63A 3Ph
Wattage : 43.6 kW max
Amperage Rating : 63A
Input voltage : 346-415V
Phase : Three-phase
Circuit breaker : (12) single-pole
Frequency rating : 50/60 Hz
Cord length : 3m

Electrical output

Outlets : (18) C13, (12) C19
Number of Outputs C13 : 18
Number of Outputs C19 : 12
Number of outlets with earth pin : 30

EPDU MI 1U (C20 16A 1P)C13X8

specifications

Product Name : Eaton Rack PDU G4
Catalog Number : EMIH28
Model Code :EPDU MI 1U (C20 16A 1P)C13X8
EAN : 3553340696114
Product Length/Depth : 203.2 mm
Product Height : 444.5 mm
Product Width : 42.9 mm
Product Weight : 2.6 kg
Compliances : CE Marked ,RoHS Compliant , EAC
Certifications : CE , IEC 60950-1 , EN 55024:2010

Electrical input

Input connection : C20
Wattage : 3.84 kW max
Amperage Rating : 16A
Input voltage : 200-240V
Phase : Single-phase
Frequency rating : 50/60 Hz
Cord length : 3m

Electrical output

Outlets: (8) C13
Number of Outputs C13 : 8
Number of outlets with earth pin : 8

EPDU MI 2U (309 32A 1P)12XC13:4XC19

specifications

Product Name : Eaton Rack PDU G4
Catalog Number : EMIH06
Model Code : EPDU MI 2U (309 32A 1P)12XC13:4XC19
EAN : 3553340696121
Product Length/Depth : 127 mm
Product Height : 444.5 mm
Product Width : 87.2 mm
Product Weight : 3.5 kg
Compliances : CE Marked , RoHS Compliant , EAC
Certifications : CE ,IEC 60950-1 , EN 55024:2010

Electrical input

Input connection ; IEC-60309 32A 1Ph
Wattage : 7.4 kW max
Amperage Rating : 32 A
Input voltage : 200-240V
Phase : Single-phase
Circuit breaker : (2) single-pole
Frequency rating : 50/60 Hz
Cord length : 3m

Electrical output

Outlets: (12) C13, (4) C19
Number of Outputs C13 : 12
Number of Outputs C19 : 4
Number of outlets with earth pin : 16

EPDU MI 1U (C14 10A 1P)8XC13

Specifications

Product Name : Eaton Rack PDU G4
Catalog Number : EMIH02
EAN : 3553340696107
Product Length/Depth : 203.2 mm
Product Height : 444.5 mm
Product Width : 42.9 mm
Product Weight : 2.6 kg
Compliances : CE Marked , RoHS Compliant , EAC
Certification : CE , IEC 60950-1 , EN 55024:2010
Model Code : EPDU MI 1U (C14 10A 1P)8XC13

Input connection : C14
Cord length : 3m
Wattage : 2.3 kW max
Amperage Rating : 10A
Input voltage : 200-240V
Phase : Single-phase
Frequency rating : 50/60 Hz
Outlets : (8) C13
Number of Outputs C13 : 8
Number of outlets with earth pin : 8
SNMP : Yes
Ethernet interface : Yes
Serial interface : Yes
Mass configuration : Yes
Electrical connection : Connecting cord with plug
Mounting Dimension (metrical) : 444.5
Mounting dimension (standardized) : 482.6 mm (19 inch)
Switchable : No
Over voltage category : 2
Fitted with: Mounting material
Display : Ampere Meter
Communication : HTTP, HTTPS, SSL, Telnet, FTP, SNMP, SMTP, DNS, DHCP, LDAP, RADIUS
Series : G3+
