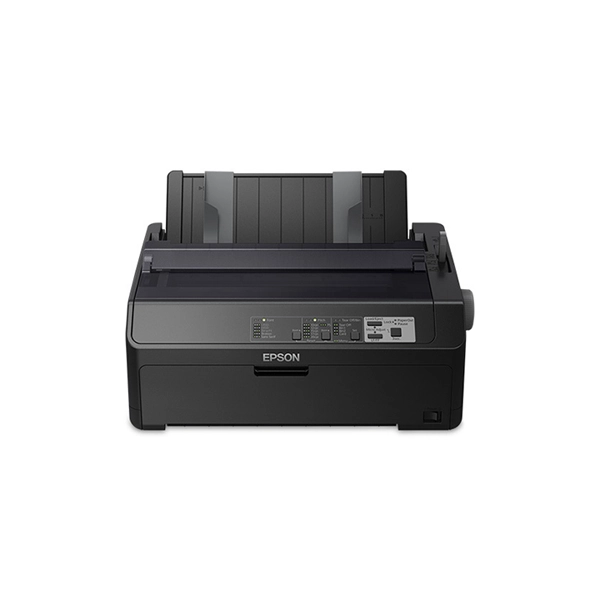

Epson FX-890II 9-pin 612 Cps Dot Matrix Printer

Epson FX-890II 9-pin 612 Cps Dot Matrix Printer

A contemporary new design and smaller footprint make upgrading easy and add a range of new features for unprecedented flexibility.

Market-leading print speeds

The FX-890II offers an improved USD (ultra speed draft) speed of 735 characters per second at 12 characters per inch, making a real difference to high-volume print runs such as stock reports and large batches of invoices or freight documents.

Outstanding reliability

Epson’s dot matrix technology is already mature and very reliable, and these new printers improve the mean time between failure by 25% to 25,000 power-on hours, ideal for challenging conditions or where regular maintenance is not practical.

Smaller footprint

Epson’s new range of dot matrix printers has a refreshed design with a smaller footprint – depth has been reduced to just 320mm – making it easy to place into a business environment.

Technical Specification

• Product: Epson FX-890II
• Maximum print speed: 612 cps
• Maximum print speed (draft): 463 cps
• Maximum resolution: 240 x 144 DPi
• Maximum print size: A4 (210 x 297 mm)
• Paper tray media types: Envelopes
• Cut sheet thickness range: 0.12 – 0.46 mm
• Product colour: Black
• Buffer size: 128 KB
• Sound pressure level (printing): 55 dB
• Print head: 9-pin
• Print direction: Bi-direction
• Print head life: 400 million characters

Specifications:

• Printing Method: Impact dot matrix
• Number of Pins: 9 pinsNumber of columns: 80 columns
• Pins: 18 Needles (2 x 9)
• Power consumption: 55 Watt, 10 Watt (standby)
• Supply Voltage: AC 198 V – 264 V
• Product dimensions: 414‎ x 375 x 177 mm (Width x Depth x Height)
• Product weight: 7,2 kg
• Mean Time Between Failures: 25.000 hours
• Print Head Life: 400 Million Strokes/Wire

Print

• Printing Speed: HighSpeed-Draft: 10 cpi: 612 chars/s, Draft: 10 cpi: 463 chars/s, NLQ: 10 cpi: 115 chars/s
• Barcodes: Coda bar (NW-7), Code 128, Code 39, Industrial 2 of 5, Matrix 2 of 5, POSTNET, UPC-A, UPC-E
• Carbon Copies: 6 plus one original
• Character Sets: 42
• Character Tables: PCAPTEC, PC437, PC708, PC720, PC850, PC858, ISO-8859-1, Roman 8, Italic
• Printing Resolution: 240 x 144 DPI

Paper / Media Handling

• Document Feed: Single sheet front and rear, Continuous media front and rear, Paper output rear
• Paper Formats: Sheet Paper (single- and multi-layer), Continuous Paper (single- and multi-layer),
• Envelopes, Cardboard
• Paper Thickness Continuous Paper: 0,46 mm
• Paper Thickness Label Base Sheet: 0,46 mm
• Paper Thickness Multi Part: 0,12 mm – 0,46 mm
• Paper Thickness Single Sheet: 0,06 mm – 0,14 mm
