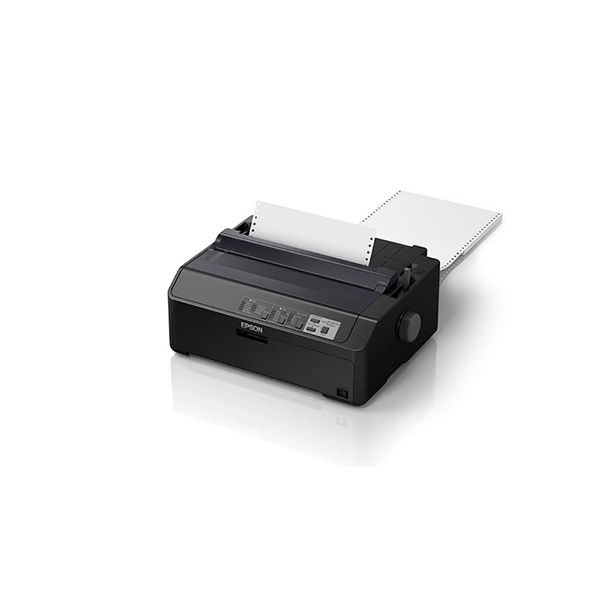

Epson LQ‑590IIN Dot Matrix Printer

Market-leading print speeds
The FX-2190IIN offers an improved USD (ultra speed draft) speed of 550 characters per second at 10 characters per inch, making a real difference to high-volume print runs such as stock reports, large batches of invoices or freight documents.

Outstanding reliability
Building on Epson’s established and reliable dot matrix technology, the new range of printers improves the mean time between failures by 25 percent. This delivers 25,000 of power-on hours, ideal for challenging conditions where regular maintenance is not practical.

Smaller footprint
Epson’s new range of dot matrix printers has a refreshed design with a smaller footprint – depth has been reduced to just 320mm – making it easy to place into a business environment.

Network capability
This is a network model which supports both serial and Ethernet connections for enhanced connectivity.

Specifications:

• Printing Method: Impact dot matrix
• Number of Pins: 24 pins
• Number of columns: 136 columns
• Pins: 24 Needles
• Power consumption: 55 Watt, 10 Watt (standby)
• Supply Voltage: AC 198 V – 264 V
• Product dimensions: 612‎ x 375 x 177 mm (Width x Depth x Height)
• Product weight: 8,37 kg
• Supported Temperature: Operation 5° C – 35° C, Storage -30° C – 60° C
• Supported Humidity: Operation 10% – 80%, Storage 30% – 60%
• Mean Time Between Failures: 25.000 hours
• Print Head Life: 400 Million Strokes/Wire
• Fonts: Bitmap font EPSON Draft (10 CPI, 12 CPI, 15 CPI), Bitmap font EPSON OCR-B (10 CPI), Bitmap font EPSON Roman (10 CPI, 12 CPI, 15 CPI, Proportional), Bitmap font EPSON Sans Serif (10 CPI, 12 CPI, 15 CPI, Proportional)
• Noise Level: Operation (Roll): 55 dB (A)
• Ribbon Yield: 12 characters Black Draft
• Print
• Printing Speed: HighSpeed-Draft: 10 cpi: 612 chars/s, Draft: 10 cpi: 463 chars/s, NLQ: 10 cpi: 115 chars/s, Ultra Speed-Draft: 12 cpi: 738 chars/s
• Barcodes: Coda bar (NW-7), Code 128, Code 39, Industrial 2 of 5, Matrix 2 of 5, POSTNET, UPC-A, UPC-E
• Carbon Copies: 6 plus one original
• Character Sets: 42
• Character Tables: PCAPTEC, PC437, PC708, PC720, PC850, PC858, ISO-8859-1, Roman 8, Italic
• Printing Resolution: 240 x 144 DPI

Connectivity

• Interfaces: USB – compatible with USB 2.0 specification, Bidirectional parallel, Ethernet interface (100 Base-TX / 10 Base-T)

Paper / Media Handling

• Document Feed: Single sheet front and rear, Continuous media front and rear, Paper output rear
• Paper Formats: Sheet Paper (single- and multi-layer), Continuous Paper (single- and multi-layer), Envelopes, Cardboard
• Paper Thickness Continuous Paper: 0,46 mm
• Paper Thickness Label Base Sheet: 0,46 mm
• Paper Thickness Multi Part: 0,12 mm – 0,46 mm
• Paper Thickness Single Sheet: 0,06 mm – 0,14 mm
