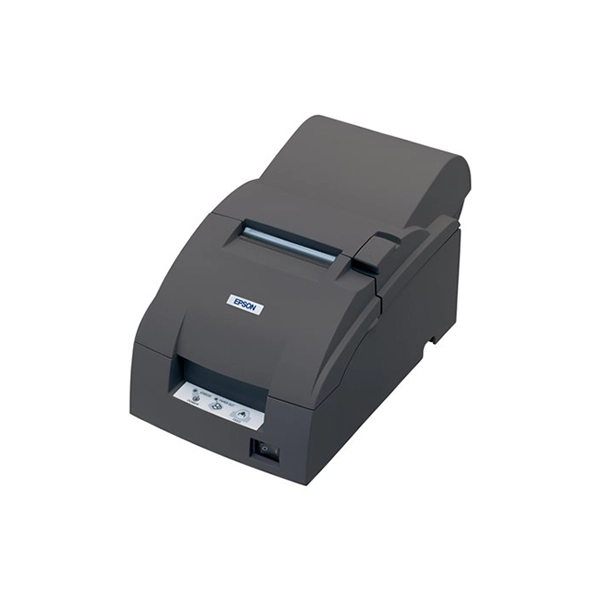

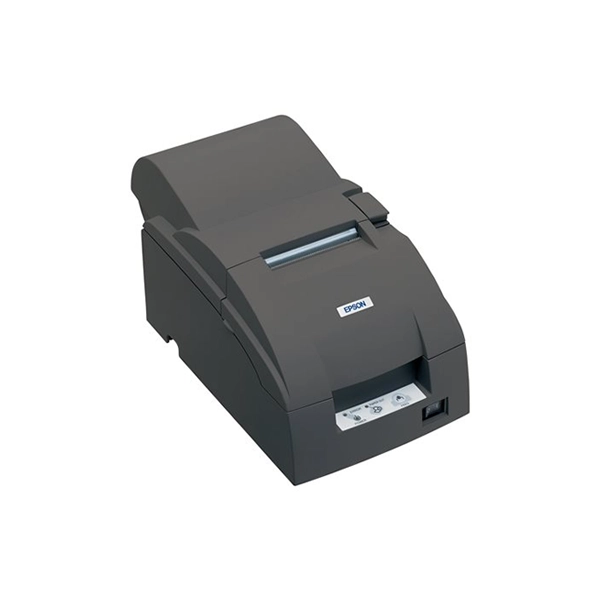

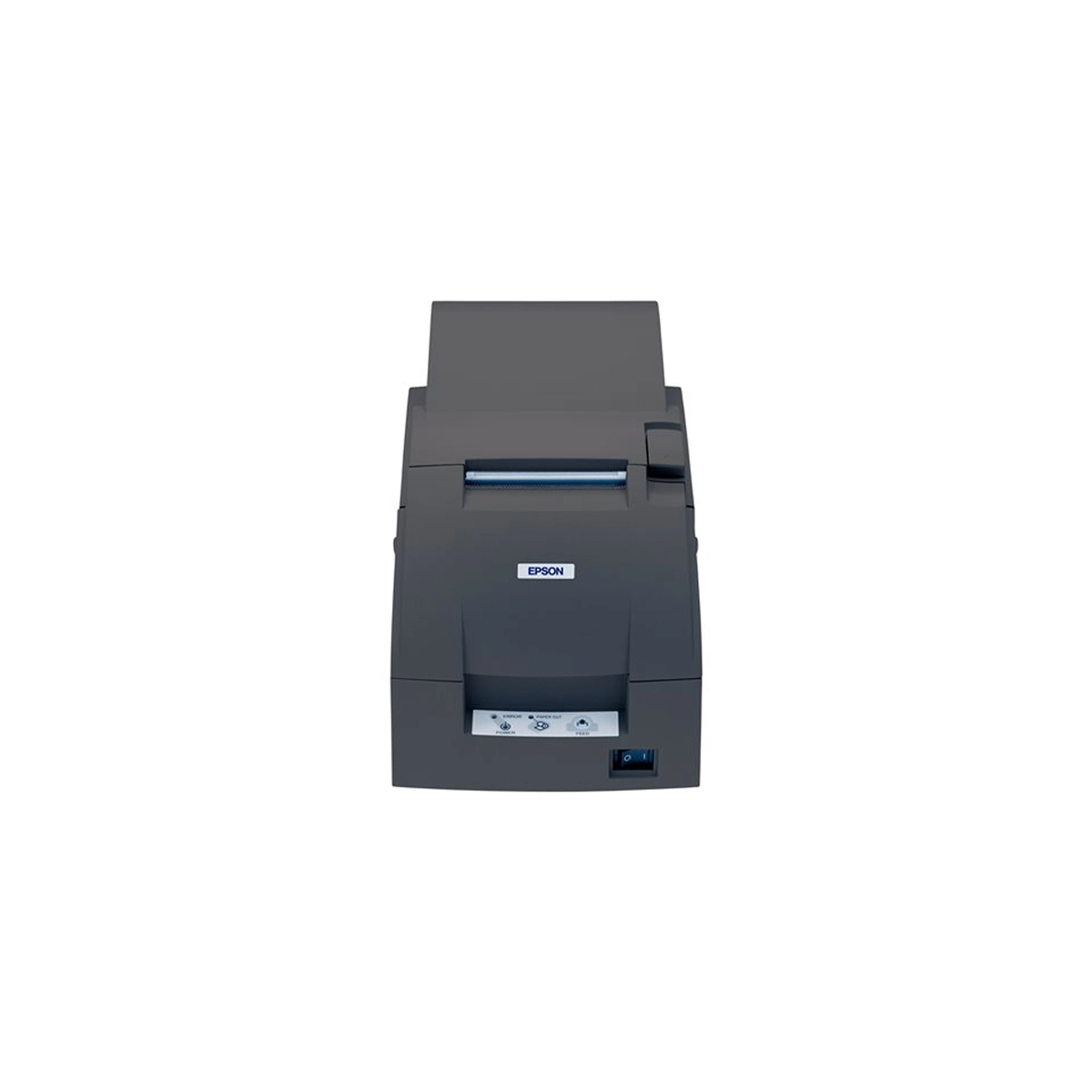

Epson TM-U220AE Receipt Impact Printer Ethernet

Epson TM-U220A Series

Easy to use

Featuring drop-in paper load, selectable auto-cutter and clamshell covers for easy access and maintenance, the TM-U220 is very reliable and prints on plain paper in three widths.

Compact
Space-saving and versatile, it has a footprint of just 160(W) x 248 (D) x 133 (H) mm, and can also be wall-mounted.

Specifications and features
Product Code	TM-U220AE
Print method	9-pin serial impact dot matrix
Technology	Serial Impact Dot Matrix
Print Speed	4.70 lps (40 columns, 16.00 cpi)
Column capacity receipt	Paper width 76 mm, 33 / 40
Character size	1.6 mm (W) x 3.1 mm (H) / 1.2 mm (W) x 3.1 mm (H)
Character set	95 Alphanumeric, 48 International, 128 x 12 Graphic
Characters per inch	13.3 cpi / 16 cpi
Colour Printing	Two Colors
Paper Types	Receipt
Copy capability receipt	one copies plus one original
Paper size roll paper	76.00 ± 0.50 (W) mm x dia 83.00 mm
	69.50 ± 0.50 (W) mm x dia 83.00 mm
	57.50 ± 0.50 (W) mm x dia 83.00 mm
Interfaces	Bidirectional parallel, Drawer kick-out, RS-232
Power Supply	PS-180 (option)
Operatingvoltage	24 V
Product dimensions	160 x 248 x 139 mm (Width x Depth x Height)
Product weight	2.7 kg
Colour	Epson Dark Grey / Epson Cool White
Installation	horizontally, vertically with wall hanging bracket
Interface connectors	D.K.D. function (2 drivers)
Noise Level	Operation: 64 dB (A)
Humidity	Operation 10% – 90%, Storage 10% – 90%
Temperature	Storage -10° C – 50° C
Reliability	18,000,000 MCBF (Lines), 180,000 MTBF (Hours)
Auto Cutter Life	800,000 Cuts
Printer Life	7,500,000 lines
EMC Standards	CE marking
Safety standards	TÜV
Changeable interface	Yes
Cutter	Partial Cut
Sensors	Roll paper cover open sensor, Paper End Sensor, Paper Near End Sensor
What’s in the box	Main unit, PS-180, Ribbon, Roll paper, Thermal roll paper, User manual
