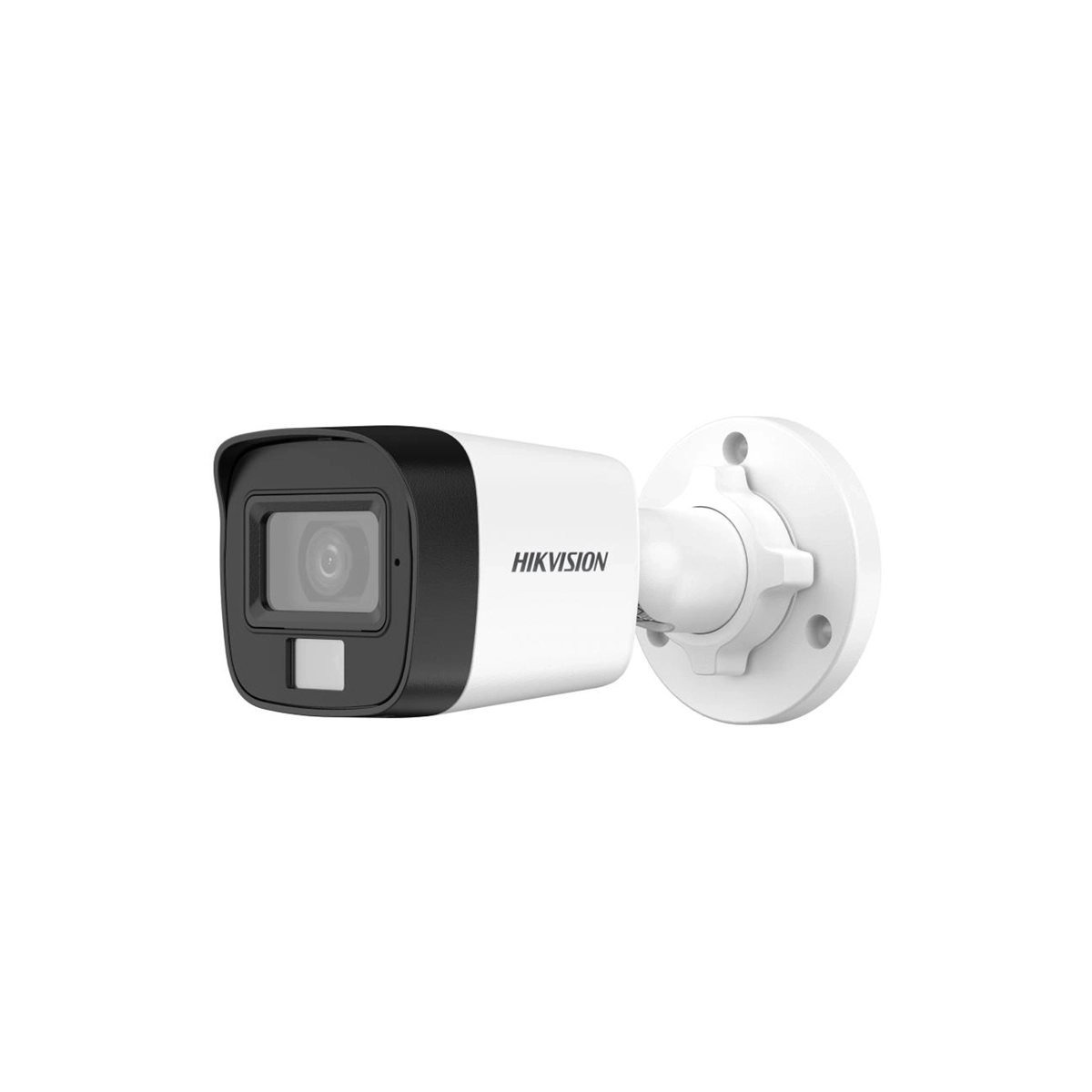

Hikvision HD-TVI Bullet 3K HL Audio 2.8mm

• High quality imaging with 3K, 2960 × 1665 resolution
• 2.8 mm and 3.6 mm fixed focal lens
• Up to 30 m IR distance for bright night imaging
• Up to 20 m white light distance for bright night imaging
• One port for four switchable signals (TVI/AHD/CVI/CVBS）
• Water and dust resistant (IP67)
• High quality audio with audio over coaxial cable, built-in mic
• Smart-Hybrid light, optimize your security with flexible lighting options

Camera

• Image Sensor 3K CMOS
•  Max. Resolution 2960 (H) × 1665 (V)
• Min. Illumination 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
• Shutter Time PAL: 1/25 s to 1/50, 000 s; NTSC: 1/30 s to 1/50, 000 s
• Day & Night: ICR
• Angle Adjustment Pan: 0 to 360°, Tilt: 0 to 90°, Rotation: 0 to 360°
• Signal System PAL/NTSC

Lens

• Lens Type 2.8 mm and 3.6 mm fixed focal lens
• Focal Length & FOV 2.8 mm, horizontal FOV: 104.9°, vertical FOV: 67.3°, diagonal FOV: 129.8° 3.6mm, horizontal FOV: 81.3°, vertical FOV: 50.7°, diagonal FOV: 102.4°
• Lens Mount M12

Microphone

• Pickup Distance In a radius of 5 m
• Amount 1

Illuminator

• Supplement Light Range IR : Up to 30 m White Light : Up to 20 m
• Supplement Light Type: Smart, IR, White Light


• Image Settings Brightness, Sharpness, Smart IR
• Frame Rate: TVI: 3K@20 fps, 4 MP@25 fps/30 fps, 1080p@25 fps/30 fps AHD: 5 MP@20 fps, 4 MP@25 fps/30 fps CVI: 4 MP@25 fps/30 fps CVBS: PAL/NTSC
• Day/Night Mode Auto/Color
• Digital Wide Dynamic Range (WDR)
• Image Enhancement: DWDR/BLC/HLC/Global
• White Balance Auto/Manual
• AGC Yes

Interface

• Video Output Switchable TVI/AHD/CVI/CVBS

General

• Metal Material
• Dimension 138.8 mm × Ø70 mm (5.47″ × Ø2.76″)
• Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
• Weight Approx. 270 g (0.60 lb.)
• Communication: HIKVISION-C
• Language: English
• Power Supply 12 VDC ± 25% *You are recommended to use one power adapter to supply the power for one camera.
• Consumption Max. 3.3 W
