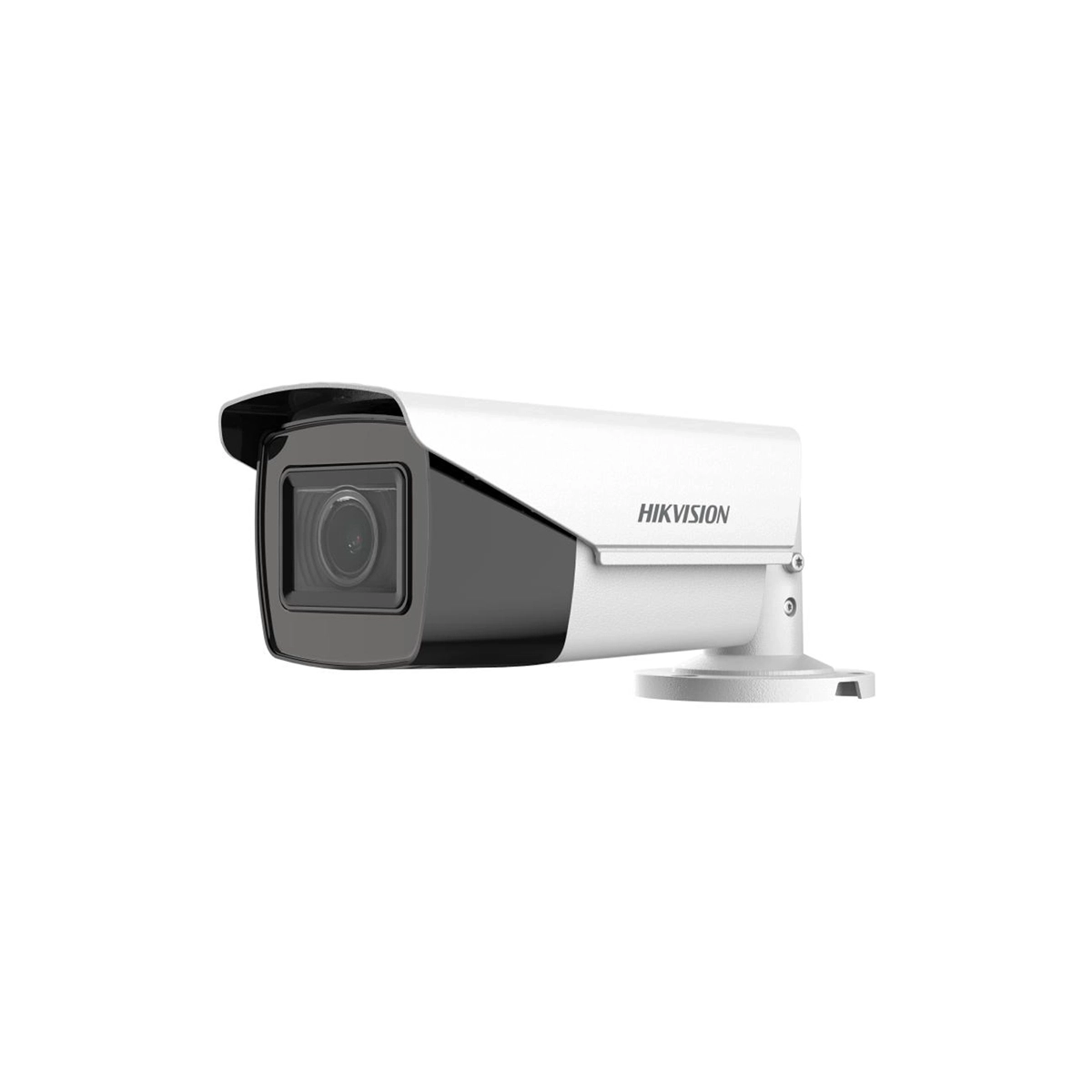

5 MP Motorized Varifocal Bullet Camera
Key features:
- High quality imaging with 5 MP, 2560 × 1944 resolution
- 2.7 mm to 13.5 mm motorized varifocal lens
- Up to 40 m IR distance for bright night imaging
- One port for four switchable signals (TVI/AHD/CVI/CVBS)
- Water and dust resistant (IP67)
Camera
- 5 MP CMOS Image Sensor
- Signal System: PAL/NTSC
- Resolution 2560 (H) × 1944 (V)
- Frame Rate: TVI: 5 M @ 20 fps, 4 M @ 30 fps, 4 M @ 25 fps, 1080p @ 30 fps, 1080p @ 25 fps AHD: 5 M @ 20 fps, 4 M @ 30 fps, 4 M @ 25fps CVI: 4 M @ 30 fps, 4 M @ 25 fps CVBS: PAL/NTSC
- Min. Illumination 0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR
- Shutter Time: PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
- Lens: 2.7 mm to 13.5 mm motorized varifocal lens
- Field of view: horizontal FOV: 95° to 26°, vertical FOV: 72° to 20°, diagonal FOV: 126° to 33°
- Day ＆ Night IR Cut Filter
- Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°
- WDR (Wide Dynamic Range): Digital WDR
- Day/Night Mode Auto/Color/BW (Black and White)
- Image Mode STD/HIGH-SAT
- AGC Yes
- White Balance Auto/Manual
- AE (Auto Exposure) DWDR, BLC, HLC, Global
- Mode Noise Reduction 2D DNR
- Language: English
- Function: Brightness, Smart IR, Sharpness
Interface
- Video Output Switchable TVI/AHD/CVI/CVBS
General
- IR Range Up to 40 m
- Operating Conditions : -40°C to 60°C (-40°F to140°F), Humidity: 90% or less (non-condensing)
- Power Supply 12 VDC±15%, 24 VAC±15%
- Consumption Max 8.8 W
- Protection Level IP67
- Material Front cover: Metal, Main body: Plastic
- Communication HIKVISION-C
- Dimension: 84.5 mm × 92 mm × 255.1 mm (3.33″ × 3.62″ × 10.04″)
- Weight Approx. 682 g (1.50 lb.)
