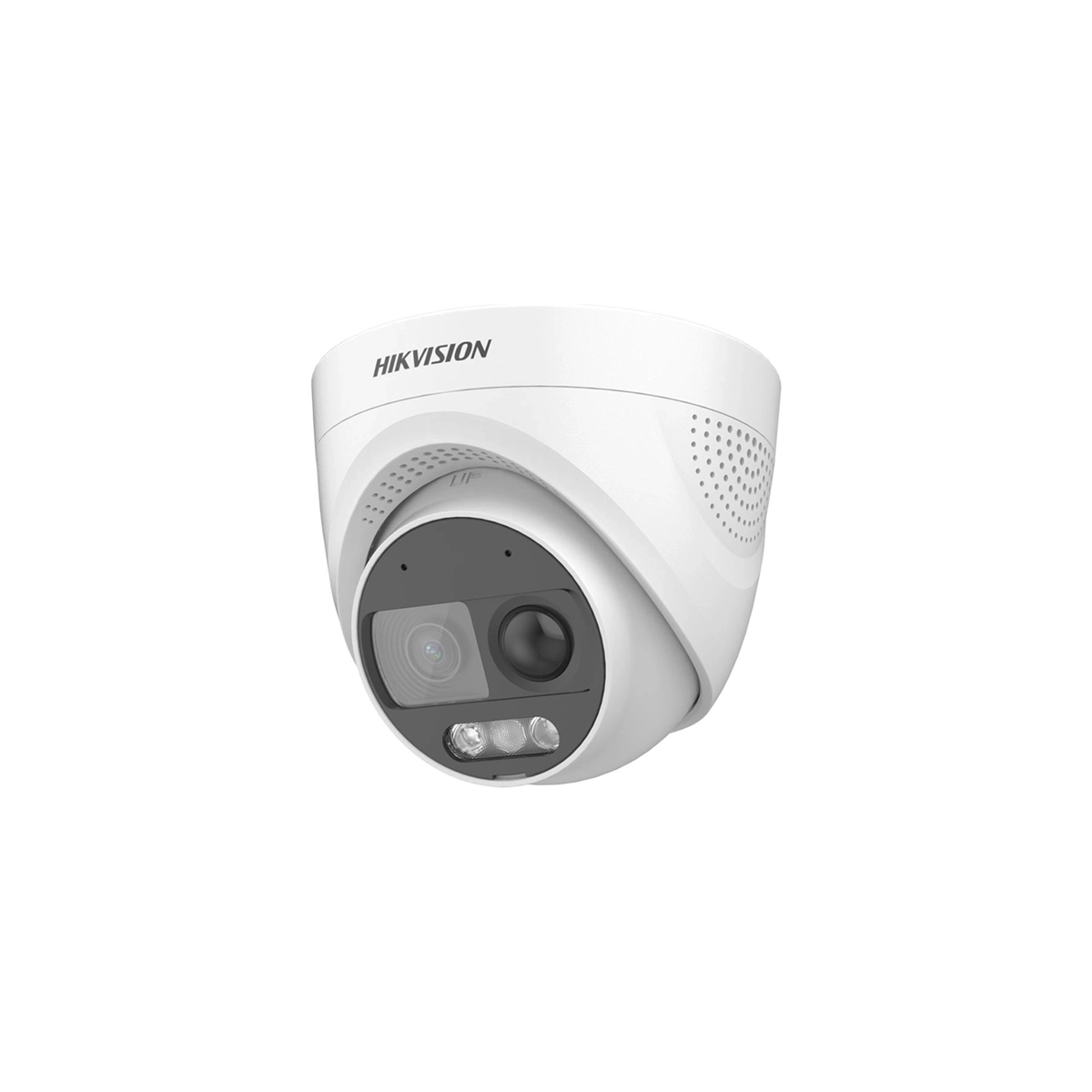

Hikvision HD-TVI Dome 2MP CV 2.8mm

• High quality imaging with 2 MP, 1920 × 1080 resolution
• 24/7 color imaging with F1.0 aperture
• Clear imaging against strong back light due to 130 dB true WDR technology
• 3D DNR technology delivers clean and sharp images
• 2.8 mm, 3.6 mm fixed focal lens
• Up to 20 m white light distance for bright night imaging
• Detects human body through heat-sensitive passive infrared (PIR)
• Active strobe light and audio alarm to warn intruders off
• High quality audio with audio over coaxial cable, built-in mic, and built-in speaker
• Water and dust resistant (IP67)

Camera

• Image Sensor: 2 MP CMOS
• Max. Resolution: 1920 (H) × 1080 (V)
• Min. Illumination: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
• Shutter Time: PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
• Day & Night24/7 Color Imaging
• Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
• Signal System: PAL/NTSC
• Slow Shutter: Max. 16 times

Lens

• Lens Type2.8 mm, 3.6 mm fixed focal lens
• Focal Length & FOV: 2.8 mm, horizontal FOV: 98°, vertical FOV: 52°, diagonal FOV: 116°

  3.6 mm, horizontal FOV: 77°, vertical FOV: 42°, diagonal FOV: 91°

• Lens MountM12

Illuminator

• Supplement Light Type: White Light
• Supplement Light Range: Up to 20 m
• Smart Supplement Light: Yes


• Image Parameters Switch: STD/HIGH-SAT/HIGHLIGHT
• Image Settings: Brightness, Contrast, Mirror, Defective Pixel Correction, Sharpness, Smart Light, Anti-Banding, AGC
• Frame Rate: TVI: 1080p @ 25 fps/30 fps
• Day/Night Mode: Color
• Wide Dynamic Range (WDR)≥130 dB
• Image Enhancement: WDR, BLC, HLC, Global, HLS
• Privacy Mask: 4 programmable privacy masks
• Noise Reduction: 3D DNR/2D DNR
• White Balance: Auto/Manual

Supplement Detection(PIR)

• PIR Range11 m
• PIR Angle : 110°

Interface

• Video Output1 HD analog output
• Alarm: 1 line out Flashing Light Alarm (Red & Blue)
• Built-in Microphone

Event

• Motion Detection: 4 programmable motion areas

General

• Power: 12 VDC ± 25%, max. 9.6 W

  *You are recommended to use one power adapter to supply the power for one camera.

• Material Main body: Metal, Enclosure: Plastic
• Dimension: Ø 109.82 mm × 93.66 mm (Ø 4.3″ × 3.7″)
• Approx. 396 g (0.87 lb.)
• Operating Condition: -40°C to 60°C (-40°F to 140°F), humidity: 90% or less (non-condensing)
• Communication: HIKVISION-C
• Language: English

Approval

• ProtectionIP67
