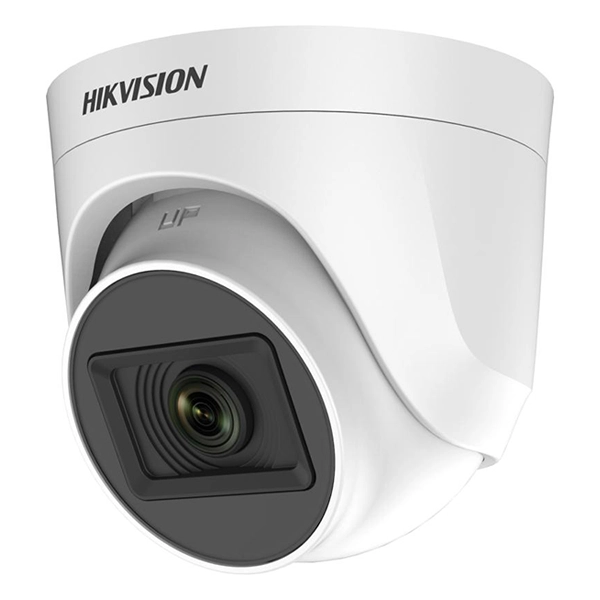

Hikvision HD-TVI Dome 2MP IR20m 2.8mm

• 2.8 mm fixed lens
• Up to 20 m IR distance for bright night imaging
• One port for four switchable signals (TVI/AHD/CVI/CVBS)
• Water and dust resistant (IP67)

Camera

• Image Sensor: 2 MP CMOS
• Signal System: PAL/NTSC
• Max. Resolution: 1920 (H) × 1080 (V)
• Min. Illumination: 0.02 Lux @ (F1.2, AGC ON), 0 Lux with IR
• Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
• Day & Night: IR Cut Filter
• Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°

Lens

• Lens Type2.8 mm, 3.6 mm Fixed Lens
• Focal Length & FOV: 2.8 mm, horizontal FOV: 96.5°, vertical FOV: 48.9°, diagonal FOV: 120.5°

  3.6 mm, horizontal FOV: 76.9°, vertical FOV: 40.6°, diagonal FOV: 92.0°

• Lens MountM12

Illuminator

• Supplement Light Range: Up to 20 m

• Image

• Frame Rate: TVI: 1080p@25fps/30fps

                         AHD: 1080p@25fps/30fps

                         CVI: 1080p@25fps/30fps

                         CVBS: PAL/NTSC

• Wide Dynamic Range (WDR)Digital WDR
• Image Parameters Switch: STD/HIGH-SAT
• Day/Night Mode: Auto/Color/BW (Black and White)
• White Balance: Auto
• Image Enhancement: DWDR, BLC, Global
• Noise Reduction2D DNR
• Image Settings: Brightness, Mirror, Smart IR, Sharpness, AGC

Interface

• Video OutputSwitchable TVI/AHD/CVI/CVBS

General

• Language: English
• Operating Condition: -40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing)
• Material: Metal
• Communication: HIKVISION-C
• Dimension: 90 mm × 82.6 mm × 79.372 mm (3.54″ × 3.25″ × 3.12″)
• Approx. 360g (0.79 lb.)
• Power: 12 VDC ± 25%, Max. 3.3 W

Approval

• ProtectionIP67
