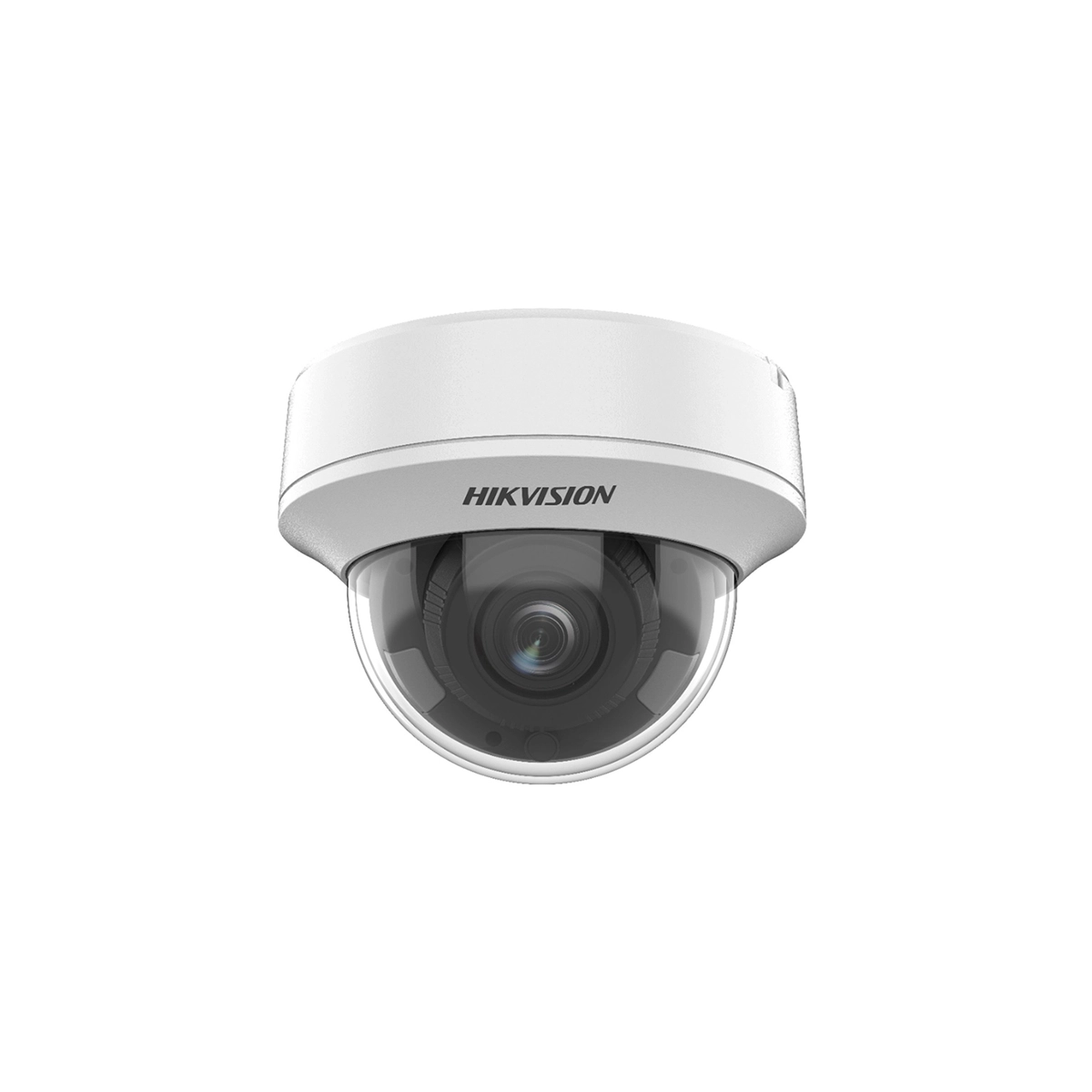

Hikvision HD-TVI Dome 5MP EXIR IR60m MVF

• 5 MP high performance dome camera
• Strong night performance, capturing images in ultra-low light down to 0.003 lux
• Clear imaging even against strong back lighting due to 130 dB true WDR technology
• 3D DNR technology delivers clean and sharp images
• Lens focuses automatically when zooming in or out
• EXIR 2.0: advanced infrared technology with 60 m IR distance
• 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)

Camera

• Image Sensor5 MP CMOS
• Max. Resolution2560 (H) × 1944 (V)
• Min. Illumination: Color: 0.003 Lux@(F1.38, AGC ON), 0 Lux with IR
• Shutter Time: PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
• Day & Night: IR Cut Filter
• Angle Adjustment: Pan: 0 to 340°, Tilt: 0 to 75°, Rotation: 0 to 355°
• Signal System: PAL/NTSC

Lens

• Lens Type: Varifocal lens, motor-driven lens, 2.7 to 13.5 mm
• Focal Length & FOV: Horizontal FOV: 92.3° to 29.3°
• Lens MountΦ14

Illuminator

• Supplement Light Type: IR
• Supplement Light Range: Up to 60 m
• Smart Supplement Light: Yes


• Image Settings: Brightness, Sharpness, Mirror, AGC
• Frame Rate: TVI: 2 MP @ 25 fps, 2 MP @ 30 fps, 4 MP @ 25 fps, 4 MP @ 30 fps, 5 MP @ 20 fps

                          AHD: 4 MP @ 25 fps, 4 MP @ 30 fps, 5 MP @ 20 fps

                          CVI: 4 MP @ 25 fps, 4 MP @ 30 fps

                          CVBS: PAL, NTSC

• Day/Night Mode: Auto/Color/BW (Black and White)
• Wide Dynamic Range (WDR)≥130 dB
• Image Enhancement: BLC
• Privacy Mask: 4 programmable privacy masks
• Noise Reduction: 3D DNR
• White Balance: Auto/Manual

Interface

• Video Output1 HD analog output;Switchable TVI/AHD/CVI/CVBS

Event

• Motion Detection4 programmable motion areas

General

• Power: 9.6 VDC to 14.4 VDC; 19.2 VAC to 28.8 VAC max. 8 W
• Material: Plastic
• Dimension: Φ 136 mm × 101.9 mm ( Φ 5.35″ × 4.01″)
• Approx. 430 g (0.95 lb.)
• Operating Condition: -40 °C to 50 °C (-40 °F to 122 °F), humidity 90% or less (non-condensing)
• Communication: HIKVISION-C
• Language: English
