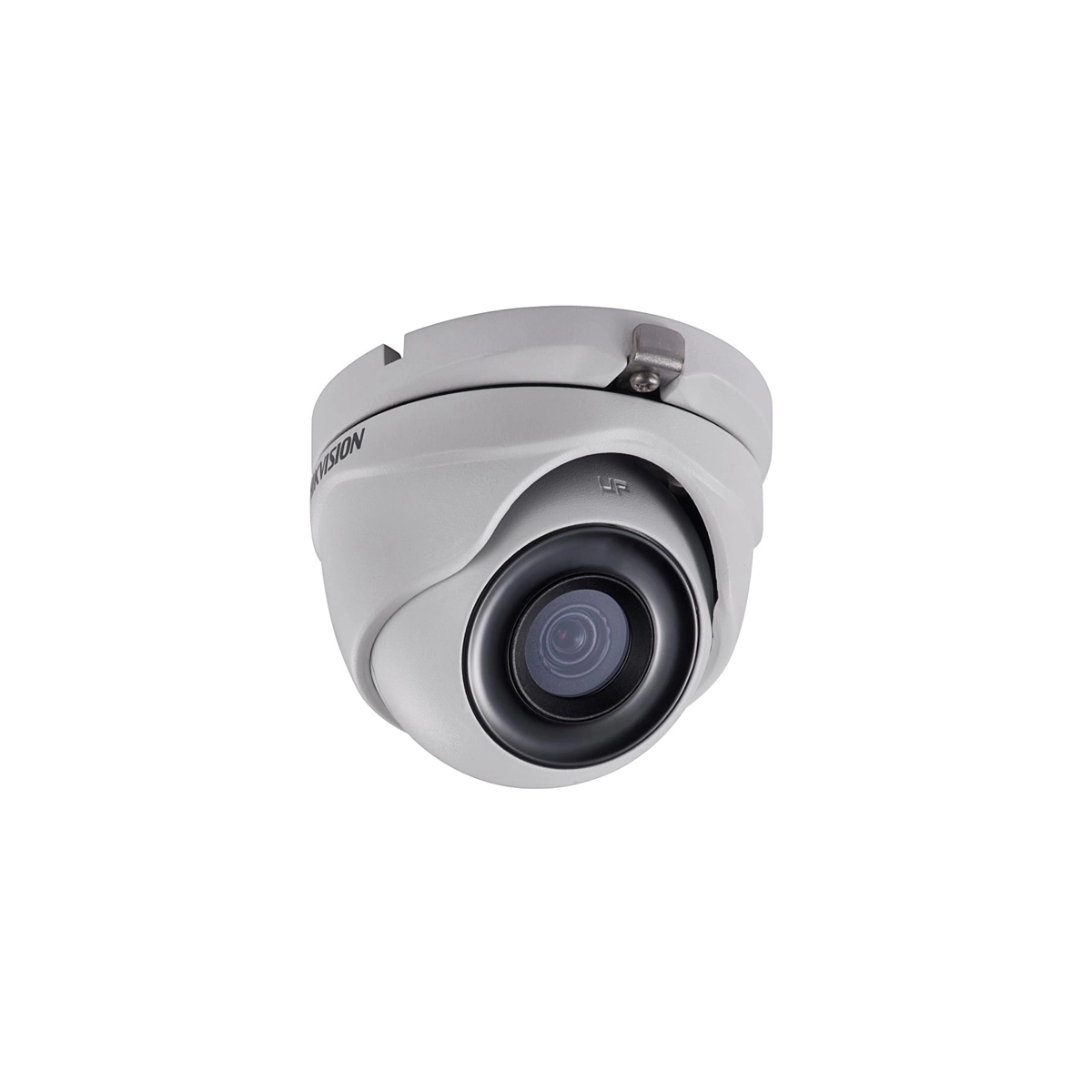

Hikvision HD-TVI Dome 5MP IR 40m 2.7-13.5mm

• High quality imaging with 5 MP, 2560 × 1944 resolution
• 2.7 mm to 13.5 mm motorized varifocal lens
• Up to 40 m IR distance for bright night imaging
• One port for four switchable signals (TVI/AHD/CVI/CVBS)
• Water and dust resistant (IP67)

Camera

• Image Sensor: 5 MP CMOS
• Signal System: PAL/NTSC
• Max. Resolution: 2560 (H) × 1944 (V)
• Frame Rate: TVI: 5 M @ 20 fps, 4 M @ 30 fps, 4 M @ 25 fps, 1080p @ 30 fps, 1080p @ 25 fps

                        AHD: 5 M @ 20 fps, 4 M @ 30 fps, 4 M @ 25 fps

                        CVI: 4 M @ 30 fps, 4 M @ 25 fps

                         CVBS: PAL/NTSC

• Min. Illumination: 0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR
• Shutter Time: PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
• Lens MountΦ14
• Day & Night: IR Cut Filter
• Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°

Lens

• Lens Type: 2.7 mm to 13.5 mm motorized varifocal lens
• Focal Length & FOV: horizontal FOV: 95° to 26°, vertical FOV: 72° to 20°, diagonal FOV: 126° to 33°

Illuminator

• Supplement Light Range: IR: Up to 40 m


• Day/Night Mode: Auto/Color/BW (Black and White)
• Wide Dynamic Range (WDR)Digital WDR
• Image Parameters Switch: STD/HIGH-SAT
• White Balance: Auto/Manual
• Image Enhancement: DWDR, BLC, HLC, Global
• Noise Reduction: 2D DNR
• Language: English
• Image Settings: Brightness, Smart IR, Sharpness, AGC

Interface

• Video Output Switchable:  TVI/AHD/CVI/CVBS

General

• Power:12 VDC±15%, Max 6.2 W *You are recommended to use one power adapter to supply the power for one camera.
• Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F). Humidity 90% or less (non-condensing)
• Material: Metal
• Communication: HIKVISION-C
• Dimension: 123.87 mm × 110.24 mm × 134.3 mm (4.87″ × 4.34″ × 5.29″)
• Approx. 555 g (1.22 lb.)

Approval

• ProtectionIP67
