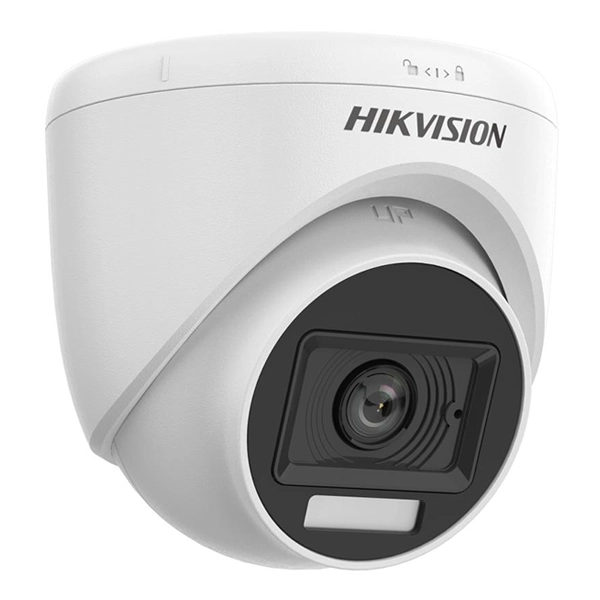

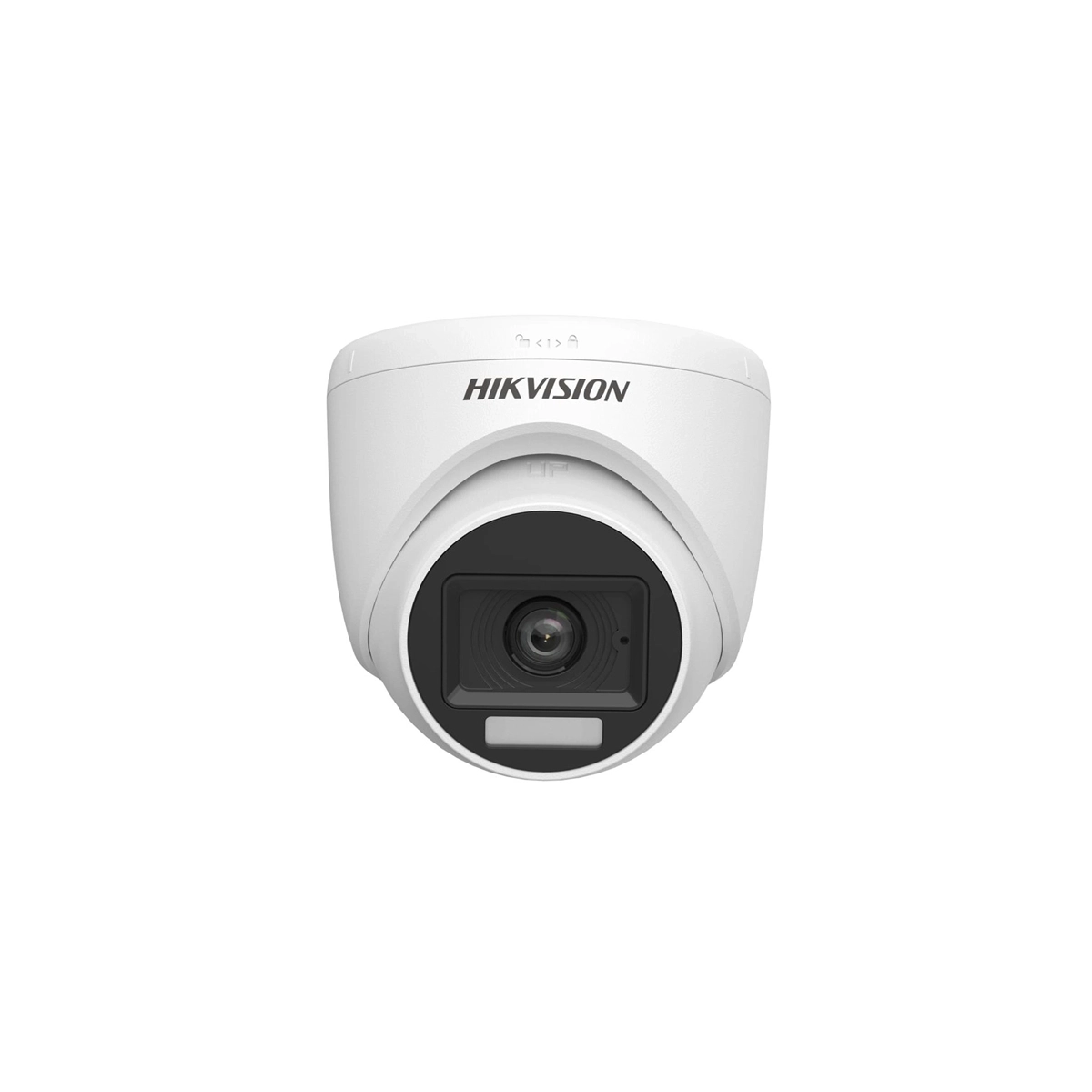

2MP Smart Hybrid Light Audio Fixed Turret Camera
Key features:
- High quality imaging with 2 MP, 1920×1080 resolution
- 2.8 mm, 3.6 mm fixed focal lens
- Up to 20 m IR distance for bright night imaging
- Up to 20 m white light distance for bright night imaging
- High quality audio with audio over coaxial cable, built-in mic
- One port for four switchable signals (TVI/AHD/CVI/CVBS）
- Smart-Hybrid light, optimize your security with flexible lighting options
Camera
- Image Sensor2 MP CMOS
- Max. Resolution1920 (H) × 1080 (V)
- Min. Illumination0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR
- Shutter Time: PAL: 1/25 s to 1/50, 000 s; NTSC: 1/30 s to 1/50, 000 s
- Day & Night: ICR
- Angle Adjustment: Pan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360°
- Signal System: PAL/NTSC
Lens
- Lens Type2.8 mm, 3.6 mm fixed focal lens
- Focal Length & FOV: 2.8 mm, horizontal FOV: 101°, vertical FOV: 56°, diagonal FOV: 118°
3.6 mm, horizontal FOV: 78°, vertical FOV: 42°, diagonal FOV: 92°
- Lens MountM12
- Microphone
- Pickup Distance: In a radius of up to 5 m
- Amount1
Illuminator
- Supplement Light Range: IR : Up to 20 m, White Light : Up to 20 m
- Supplement Light Type: Smart, IR, White Light
- Image Settings: Brightness, Sharpness, Smart IR
- Frame Rate: TVI: 1080P @ 30 fps, 1080P @ 25 fps, AHD: 1080P @ 30 fps, 1080P @ 25 fps, CVI: 1080P @ 30 fps, 1080P @ 25 fps, CVBS: PAL/NTSCCVBS: PAL/NTSC
-
Wide Dynamic Range (WDR)Digital WDR
-
Image Enhancement: DWDR/BLC/HLC/Global
- White Balance: Auto/Manual
- AGC: Yes
- Day/Night Mode: Auto/Color
Interface
- Video Output Switchable: TVI/AHD/CVI/CVBS
General
- Material: Plastic
- Dimension: 84.6 mm × Ø85.02 mm (3.33″ × Ø3.35″)
- Approx. 156 g (0.34 lb.)
- Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
- Communication: HIKVISION-C
- Language: English
- Power Supply: 12 VDC ± 25%
*You are recommended to use one power adapter to supply the power for one camera.
- Consumption: Max. 3.3 W
