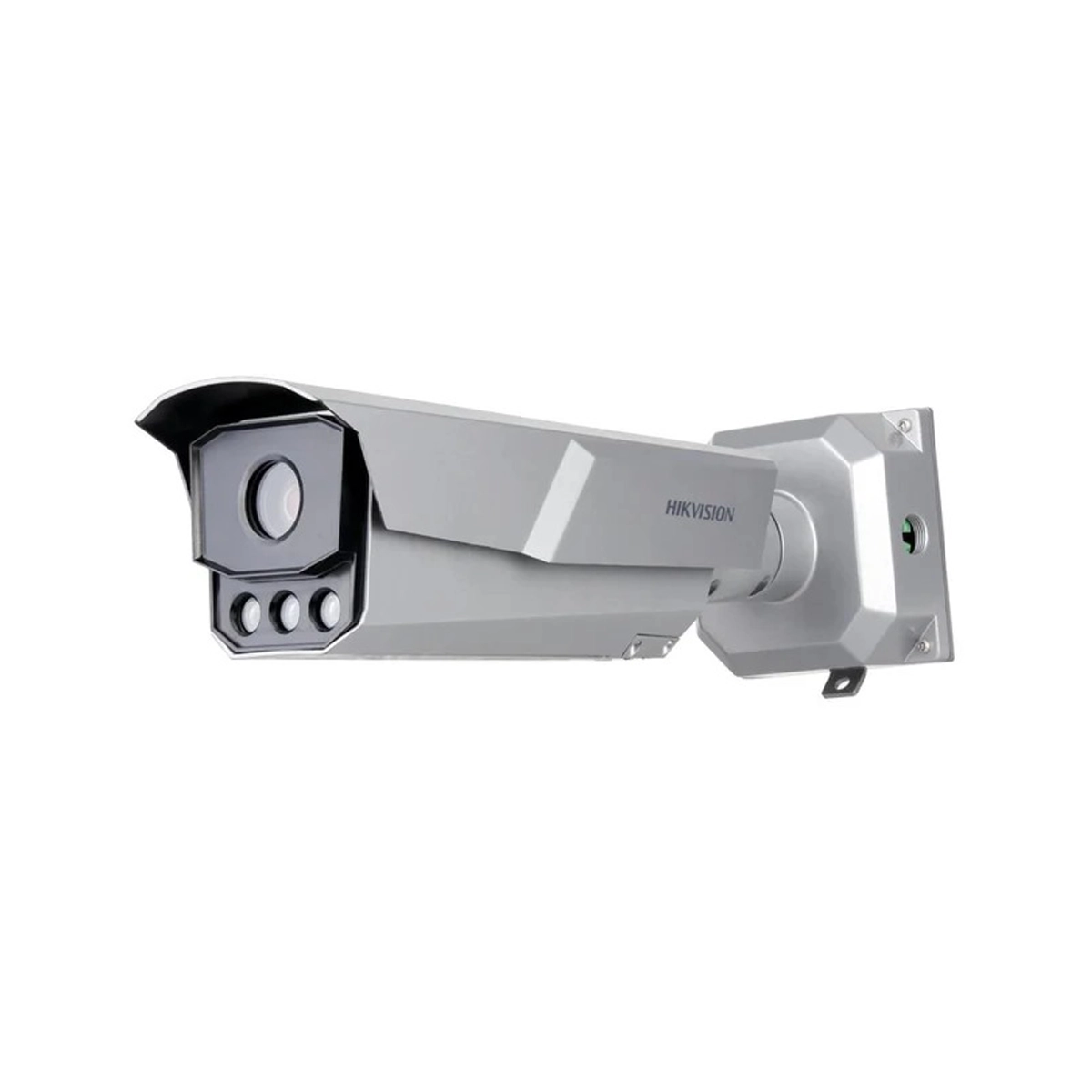

Hikvision IP Bullet 4MP ANPR IR50m MVF 10-50

• High quality imaging with 4 MP resolution(1/1.8” CMOS)
• Clear imaging against strong back light due to 140 dB WDR technology
• Water and dust resistant (IP67) and vandal proof (IK10)

Camera

• Image Sensor: 1/1.8″ progressive scan CMOS
• Max. Resolution: 2688 × 1520
• Min. Illumination: Color: 0.0005 Lux @ (F1.2, AGC ON),B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR
• Shutter Time: 1/50 s to 1/40,000 s
• Day & Night: IR cut filter

Lens

• Focal Length & FOV:

             2.8-12mm : Horizontal: 113.5° to 39°, Vertical: 58.4° to 22.7°, Diagonal: 141.3° to 44.3°,

             8-32mm : Horizontal: 41.9° to 15.1°°, Vertical: 22.9° to 8.64°, Diagonal: 48.8° to 17.3°,

             10-50mm: Horizontal: 32.2° to 7.8°°, Vertical: 18.1° to 4.4°, Diagonal: 37.1° to 8.95°

• Focus: Auto
• Iris Type: DC-IRIS
• Aperture: 2.8-12mm : F1.38,

                     8-32mm : F1.7,

                     10-50mm : F1.7

Illuminator

• Built-in Supplement Light Type: IR light
• Supplement Light Number: 3
• Built-in Supplement Light Range: Up to 50 m
• IR Wave length: 850 nm

Video

• Main Stream:

  50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720, 704 × 576, 352 × 288)

  60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720, 704 × 576, 352 × 288)

• Sub-Stream:

  50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 352 × 288)

  60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 576, 352 × 288)

• Third Stream:

  50 Hz: 25 fps (1280 × 720, 704 × 576, 352 × 288)

  60 Hz: 30 fps (1280 × 720, 704 × 576, 352 × 288)

• Video Compression: H.264 and H.265 encoding

                                        Main stream: H.265/H.264/MJPEG

                                        Sub-stream: H.265/H.264/MJPEG

• Video Bit Rate: 32 Kbps to 16 Mbps
• H.264 Type: Baseline profile/Main profile/High profile
• H.265 Type: Main profile

Audio

• Audio Compression: G.711/G.722.1
• Audio Bit Rate: 8Kbps (G.711) /16Kbps (G.722.1)

Network

• Protocols:  TCP/IP,ICMP,HTTP,HTTPS,FTP,SFTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP,SNMP,IGMP,QoS,IPv4/IPv6,UDP,SSL/TLS,ISUP,ARP,802.1X
• Simultaneous Live View: Up to 6 channels
• API: ISAPI,SDK,ISUP,ONVIF (PROFILE S, PROFILE G, PROFILE T, PROFILE M)
• User/Host: Up to 32 users

                        3 user levels: administrator, operator, and user

• Security: Password protection, Complicated password, HTTPS encryption,802.1X authentication (EAP-                   PEAP, EAP-LEAP, EAP-MD5),Watermark, IP address filter, Basic and digest authentication                       for HTTP/HTTPS,WSSE and digest authentication for ONVIF,RTP/RTSP over HTTPS,                               Control timeout settings, Security audit log, TLS 1.2, 1.3,Host authentication (MAC address)
• Network Storage: Micro SD/TF card (512 GB), local storage and CVR, NVR, ANR
• Client: Hik-Central Master, Hik-Central Pro
• Web Browser: Chrome V61+, IE9 to IE11, Firefox V41+, Edge

Wireless (Mobile Communication)

• Frequency:/G model: LTE FDD: Band 1,2,3,4,5,7,8,12,17,28,66

                                          LTE TDD: Band 38,40

                                         WCDMA/HSPA+: Band 1,2,3,4,5,8

                                        GSM/GPRS/EDGE: 850/900/1800/1900MHz

• Standard/G model: LTE FDD/LTE TDD/WCDMA/HSPA+/GSM/GPRS/EDGE
• SIM Card Type: /G model: Micro SIM


• Image Settings: Saturation, Brightness, Contrast, Gain, Sharpness, White balance, AGC, Adjustable by client software or web browser.
• Day/Night Switch: Auto/Scheduled/Manual
• Wide Dynamic Range (WDR)140 dB
• Image Enhancement: BLC, 3D DNR

Supplement Detection (Satellite Positioning)

• Satellite Positioning: /G model: GPS

Interface

• Ethernet Interface: 1 RJ45 10M/100M/1000M Ethernet interface
• On-Board Storage: Built-in memory card slot, supporting microSD/SDHC/SDXC card, up to 512GB
• Audio: Supported
• Alarm: 1 input interface, 1 output interface, 2 relays
• RS-4851 RS-485 interface
• Wiegand: 1 Wiegand (Card ID 26bit, SHA-1 26bit, Hik 34bit)

Event

• Basic Event: HDD Error, Network Disconnected, IP Address Conflicted, Vehicle Detector Exception, Traffic Light Detector Exception

• Road Traffic and Vehicle Detection
• Coverage: Up to 3 lane(s)

Smart Function

• Helmet Detection, Manned Non-Motor
• Traffic flow detection: average speed, traffic flow, queuing length, and traffic status
• Incident detection: congestion, stopped vehicle, lane change, wrong-way driving, speeding, low-speed driving

• LPR Countries/Regions:

  Middle East: The United Arab Emirates (Abu Dhabi, Ajman, Dubai, Fujairah, Ras Al Khaimah, Sharjah and Umm Al Quwain), Qatar, Iraq, Egypt, Jordan, Kuwait, Saudi Arabia, Pakistan, Oman, Lebanon, Bahrain,

  Africa: Nigeria, Kenya, Ivory Coast , South Africa, Tanzania, Mauritius, Morocco, Tunisia, Sierra Leone, Zambia, Ghana, Zimbabwe, Uganda, Angola, Ethiopia, Senegal, Algeria,

  Asia-Pacific: Australia, New Zealand, Indonesia, Malaysia, Singapore, South Korea, Thailand, Vietnam, the Philippines, Hong Kong, Macao, Taiwan, Myanmar, India, Mongolia, Cambodia, Laos, Bangladesh, Nepal, Sri Lanka,

  America: Canada, Argentina, Chile, Paraguay, Uruguay, El Salvador, Bolivia, Colombia, Brazil, Ecuador, Peru, Mexico, Panama, Costa Rica, Trinidad and Tobago, the Dominican Republic, Guatemala,

  Europe: Turkey, Croatia, Slovakia, Czech Republic, Bulgaria, the Republic of North Macedonia, Hungary, Greece, Poland, France, Netherlands, Switzerland, Spain, the UK, Ireland, Germany, Italy, Austria, Israel, Palestinian, Belgium, Luxembourg, Albania, Kosovo, Serbia, Romania, Montenegro, Denmark, Finland, Sweden, Slovenia, Portugal, Malta, Cyprus, Iceland, Liechtenstein, Bosnia and Herzegovina,

  Russian-Speaking Regions: Azerbaijan, Belarus, Kazakhstan, Lithuania, Georgia, Estonia, Latvia, Russia, Ukraine, Moldova, Uzbekistan, Kyrgyzstan, Armenia, Turkmenistan, Tajikistan

• Accuracy (Under recommended installation and lighting conditions):

                    Capture rate > 99%,

                    Vehicle moving direction recognition accuracy > 98.5%,

                     LPR accuracy > 98%,

                    Mistaken capture rate < 2%

• No License Plate Detection: Supported
• Motorcycle LPR: Supported
• Vehicle Type: Car, Van, Bus, Truck, Light Truck, SUV(MPV), Pickup, Motorcycle, Tricycle
• Vehicle Color: Red, yellow, green, blue, pink, purple, cyan, brown, white, grey, black

  Recognizable at daytime only.

• Vehicle Manufacturer: 212 Manufacturers: AC SCHNITZER, AITO, APOLLO, Ashok Leyland, Audi, Aston Martin, Acura, Ankai, Ayvip, Alfa Romeo, Asiastar, Artega, ARCFOX, BAIC, Beiben Truck, BLUECAR, Bedford, Benz, BMW, BYD , Bufori, Buick, Bently, Brabus, Bugatti, Borgward, BONLUCK, Besturn, CADILLAC, Celis, Chevrolet, Citroen, Chery, Chrysler, Chang an, CNHTC, CHTC, Caterham, Conquest, C&C Trucks, CAMC, DAIHATSU, DMC, DS, Dacia, Dongnan, Dodge, Dongwo, Denza, Dongfeng, Daewoo, Dima, Denway, DORCEN, Eicher, Emgrand, Equss, EXEED, Ford, FORO, Fornasari, Ferrari, Fuqi, Fiat, Fisker, FQT Motor, Foton, FAW, FORLAND, FUSO, Force Motors, Fxauto, Faralli Mazzanti, GAC, Great Wall, GMC, Geely, Geometry, Hyundai, HENNESSEY, HINO, Honda, Haima, Haval, Hongqi, Isuzu, Infiniti, Iveco, IAT, IM, JAC, JBC, JEEP, Jaguar, JMC, JETOUR, JETTA, Joylong ,Koenigsegg, KIA , Kia-Borrego, King Long, Kama, KTM, LEVC, Lexus, Land Rover, Lincoln, Lamborghini, Lotus, Luxgen, Levdeo, Leopaard, Lynk & Co , Lada, Leading Ideal, LEAPMOTOR, LUMMA, Lorinser, Land Wind, MAN Trucks , MAXUS, MG, MINI, Mahindra, Mitsuoka, Maserati, Meiya , McLaren, Maybach, Mazda, Morgan, Mitsubishi, Mustang, Marvel R, Maple, MANSORY, Modern, NOMA, Nissan, Norinco, Neoplan, NIO, NETA, Opel, Ora, Oushang, Perodua, Porsche, Peugeot, PGO, Proton, Pagani, Polestar, POCCO, Qoros, RAM, Rolls-Royce, Renault, Roewe, Rohens, Ranz, Ruilan, Radar, Renault Samsung, SAAB, SCANIA , SCION, SMART, SML ISUZU, Suzuki, SAIC Datong, Subaru, Skoda, Startek, Soyat, Seat , SWM, Sany, SsangYong, Sojen, Silver, SATE, SOL, Skyworth, SGMW, SITECH DEV, TATA, Tankar, Tesla, Trumpchi, Techart, Toyota, UD, UAES, Volkswagen, VINFAST, Venucia, Volvo, VOYAH, VeiculoLongo, Weltmeister , XCMG, Xinyuan, XPENG, Yutong, YAMAHA, Zhonghua, Zotye, Zhinuo, ZEEKR, Zenvo
• Capture Speed Range: 5 to 120 km/h
• Blocklist and Allow list :Max. 50000 records

General

• Operating System: Linux
• Power: DC 12 V to 24 V, 1.25 A, max. 15 W, two-core terminal block,

                PoE: 802.3at, Type 2, Class 4, max. 15 W

• Material: Aluminum alloy
• Dimension: 428.5 mm × 120 mm × 132.8 mm (16.9″ × 4.72″ × 5.2″) (L × W × H)
• Package Dimension: 595 mm × 259 mm × 193 mm (23.4″ × 10.2″ × 7.6″) (L × W × H)
• Weight Approx.:  2.975 kg (6.56 lb.)
• With Package Weight Approx.:  4.385 kg (9.67 lb.)
• Operating Condition: -30 °C to 70 °C (-22 °F to 158 °F). Humidity 95% or less (non-condensing)
• Storage Condition: -30 °C to 70 °C (-22 °F to 158 °F). Humidity 95% or less (non-condensing)
• General Function: One-key reset, three streams, heartbeat, password protection, watermark
• 8 languages: English, Thai, Croatian, Korean, Russian, Traditional Chinese, Ukrainian, Spanish

Approval

• RF: EN 301 489-1 V2.2.3, EN 301 489-3 V2.3.2, EN 301 489-19 V2.2.1, EN 301 489-52 V1.2.1, EN 301 511 V12.5.1, EN 301 908-2 V13.1.1, EN 301 908-1 V15.2.1, EN 301 908-13 V13.2.1, EN 303 413 V1.2.1, EN IEC 62311:2020
• EMCCE: -EMC: EN 55032: 2015/A11:2020+A1:2020, EN IEC61000-3-2: 2019/A1:2021, EN 61000-3-3: 2013+A1:2019/A2:2021, EN 50130-4: 2011 +A1: 2014
• Safety CB: IEC 62368-1: 2014+A11,CB: IEC 62368-1: 2018+A11,CE-LVD: EN 62368-1: 2014/A11: 2017
• Environment: CE-RoHS: 2011/65/EU,WEEE: 2012/19/EU,Reach: Regulation (EC) No 1907/2006
• Protection: IK10: IEC 62262:2002,IP67: IEC 60529-2013
• Anti-Corrosion Protection-Y: NEMA 4X (NEMA 250-2018)
