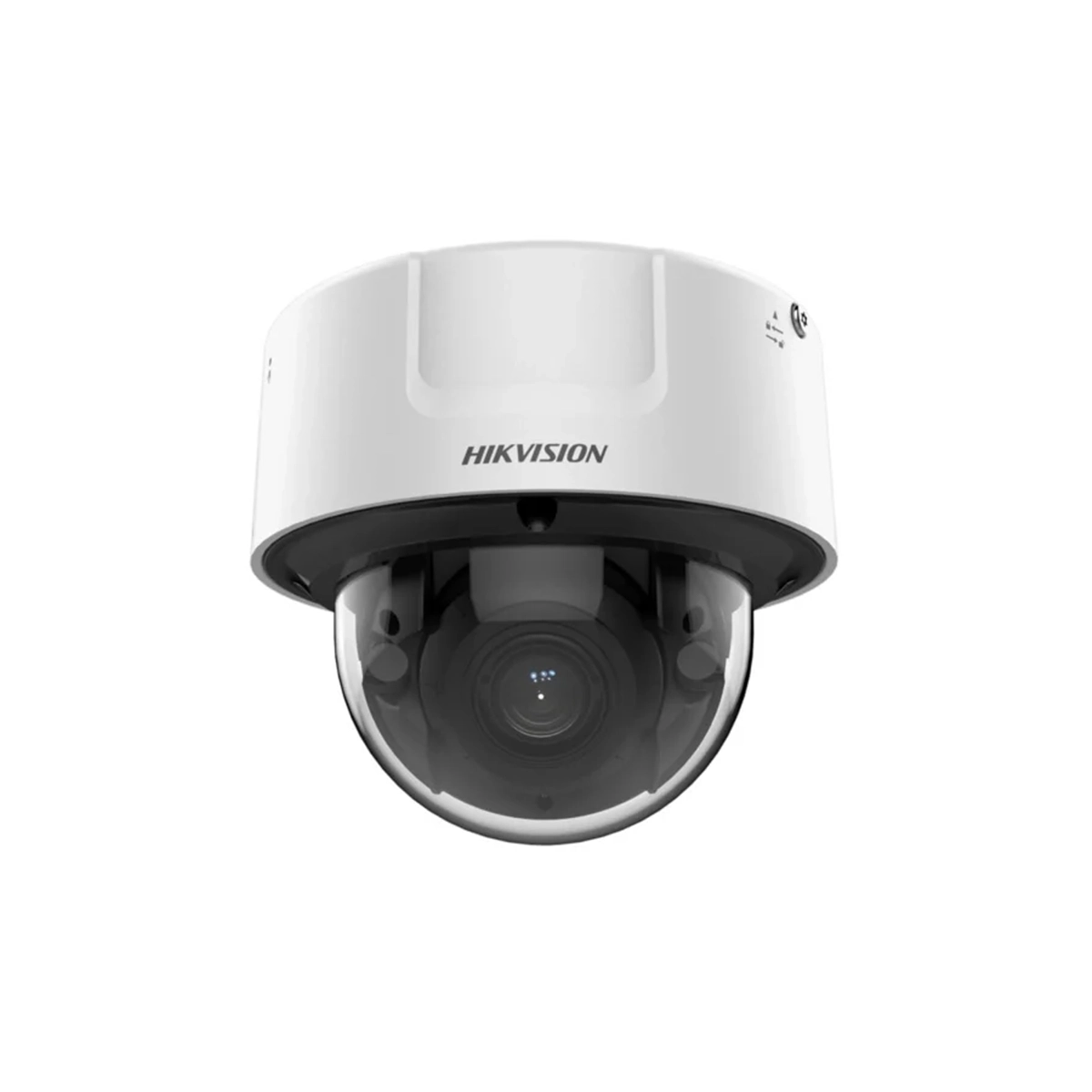

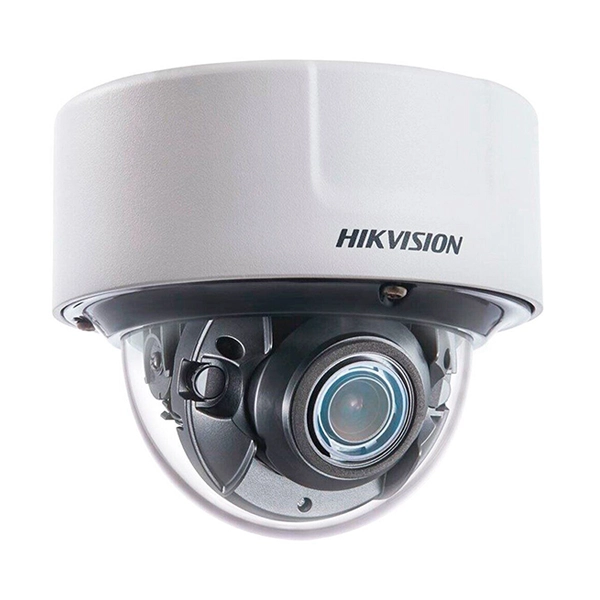

Hikvision IP Dome 4MP IR30m MVF 2.8-12mm

Hikvision 4MP 2.8-12mm DeepinView Motorized Varifocal Indoor Dome Camera iDS-2CD7146G0-IZS(2.8-12mm)

Camera

• Image Sensor: 1/1.8″ Progressive Scan CMOS
• Max. Resolution: 2688 × 1520
• Min. Illumination Color: 0.0005 Lux @ (F1.2, AGC ON); B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR
• Shutter Time: 1 s to 1/100,000 s
• Day & Night: IR cut filter, Blue glass module to reduce ghost phenomenon
• Angle Adjustment: Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°

Lens

• Focal Length & FOV:

  2.8 to 12 mm, horizontal FOV: 114.5° to 41.8°, vertical FOV: 59.3° to 23.6°, diagonal FOV: 141.1° to 48°

  8 to 32 mm, horizontal FOV: 42.5° to 15.1°, vertical FOV: 23.3° to 8.64°, diagonal FOV: 49.6° to 17.3°

• Focus: Auto, Semi-auto, Manual
• Iris Type: P-iris
• Aperture:

  2.8 to 12 mm: F1.2 to 2.5

  8 to 32 mm: F1.7 to F1.73

DORI

• DORI:

  Wide:

  2.8 to 12 mm: D (Detect): 60 m, O (Observe): 23.8 m, R (Recognize): 12 m, I (Identify): 6 m

  8 to 32 mm: D (Detect): 150.3 m, O (Observe): 59.7 m, R (Recognize): 30.1 m, I (Identify): 15 m

  Tele:

  2.8 to 12 mm: D (Detect): 149 m, O (Observe): 59.1 m, R (Recognize): 29.8 m, I (Identify): 14.9 m

  8 to 32 mm: D (Detect): 400 m, O (Observe): 158.7 m, R (Recognize): 80 m, I (Identify): 40 m

Illuminator

• Supplement Light Type: IR
• Supplement Light Range: 2.8 to 12 mm: 30 m, 8 to 32 mm: 50 m
• Smart Supplement Light: Yes
• IR Wavelength850 nm
• AI Open Platform
• Model Specification: Up to 4 models,

  Model type: detection model, classification model, mixed model (detection model and classification model)

Video

• Main Stream

  50 Hz:

  25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)

  50 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

  60 Hz:

  30 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)

  60 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

• Sub-Stream

  50 Hz: 25 fps (704 × 576, 640 × 480)

  60 Hz: 30 fps (704 × 480, 640 × 480)

• Third Stream

  50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)

  60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

• Fourth Stream

  50 Hz: 25 fps (704 × 576, 640 × 480)

  60 Hz: 30 fps (704 × 480, 640 × 480)

• Fifth Stream

  50 Hz: 25 fps (704 × 576, 640 × 480)

  60 Hz: 30 fps (704 × 480, 640 × 480)

• Video Compression

  Main stream: H.265+/H.265/H.264+/H.264,

  Sub-stream: H.265/H.264/MJPEG,

  Third stream: H.265/H.264,

  Fourth stream: H.265/H.264/MJPEG,

  Fifth stream: H.265/H.264/MJPEG

• Video Bit Rate: 32 Kbps to 8 Mbps
• H.264 Type: Baseline Profile, Main Profile, High Profile
• H.265 Type: Main Profile
• Bit Rate Control: CBR,VBR
• Scalable Video Coding (SVC): H.264 and H.265 encoding
• Region of Interest (ROI): 4 fixed regions for each stream
• Target Cropping: Yes
• e-PTZ: Support Patrol and Auto Tracking settings

Audio

• Audio Type: Mono sound
• Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
• Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Environment Noise Filtering: Yes

Network

Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets

• Simultaneous Live View: Up to 20 channels
• API: Open Network Video Interface (Profile S, Profile G, Profile T, Profile M),ISAPI,SDK,ISUP
• User/Host: Up to 32 users

                      3 user levels: administrator, operator, and user

• Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3, TPM 2.0 (FIPS 140-2 level 2), AES128/256
• Network Storage: NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with high-end                                  Hikvision memory card, memory card encryption and health detection are supported.
• Client: iVMS-4200,Hik-Connect,Hik-Central
• Web Browser: Plug-in required live view: IE 10, IE 11,

                            Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+,

                             Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+


• Image Parameters Switch: Yes
• Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, white balance, AGC,                                               adjustable by client software or web browser
• Day/Night Switch: Day, Night, Auto, Schedule, Alarm Trigger
• Wide Dynamic Range (WDR)140 dB
• Image Enhancement: BLC,HLC,3D DNR, Distortion Correction, Defog
• SNR≥ 52 dB
• Privacy Mask: 8 programmable polygon privacy masks
• Image Stabilization: EIS
• Picture Overlay: LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.

Interface

• Video Output: 1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging)
• Ethernet Interface: 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
• On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB
• Audio1 input (line in), 1 output (line out), 3.5 mm connector
• Built-in Microphone: Yes,1 built-in microphone
• Alarm: 1 input, 1 output (max. 24 VDC, 1 A)
• RS-4851 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
• Reset Key: Yes
• Power Output: 12 VDC, max. 100 mA

Event

• Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm, exception (network disconnected, IP address conflict, illegal login, abnormal restart, HDD full, HDD error),video quality diagnosis, vibration detection
• Smart Event: scene change detection, audio exception detection, defocus detection
• Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture, audible warning

Deep Learning Function

• Multi-target-type Detection

  Supports simultaneous detection and capture of human body, face, and vehicle,

  Gets 7 face features,

  Gets 13 human body features,

  Gets 2 vehicle features,

  Supports counting the number of line crossing targets by type, including human body, non-motor vehicle, motor vehicle,

  Supports dynamic mosaic mask

• Face Capture

  Detects up to 120 faces simultaneously, captures up to 40 face pictures per frame simultaneously and uploads up to 10 face pictures per second,

  Supports swing left and right from -60° to 60°, tilt up and down from -30° to 30°,

  Uploads face with background and closed-up face pictures,

  Supports best shot and quick shot for capture mode,

  Supports dynamic mosaic mask,

  Gets 7 face features

• Face Comparison

  Up to 10 face libraries. 30,000 faces for each library. 150,000 faces in total,

  Supports face library encryption

• Perimeter Protection

  Line crossing, intrusion, region entrance, region exiting

  Support alarm triggering by specified target types (human and vehicle)

  Support combined event alarm triggering

• People Counting

  Supports Multi-Dimension People Counting,

  Supports counting, displaying and exporting the people flow data of entering, exiting and passing by (The data is stored in the flash.),

  Supports real-time uploading and uploading by statistic cycle,

  Supports generating daily, weekly, monthly or annually reports,

  Supports dynamic deduplication based on face picture comparison, and can filter out the target with the same custom face pictures, same attributes, or filter out repeated invalid targets within the set time interval,

  Supports face feature deduplication,

  Supports people flow data replenishment

• Queue Management

  Supports up to 8 detection regions, and independent arming schedule and linkage method

  Supports 2 detection modes: regional people queuing-up, waiting time detection

  Generates reports to compare the efficiency of different queuing-ups and display the changing status of one queue

  Supports raw data export for further analysis

  Supports real-time data uploading and scheduled data uploading

  Regional people queuing-up: supports 4 alarm trigger conditions, including greater than threshold, less than threshold, equal to threshold, not equal to threshold

  Waiting time detection: supports 1 alarm trigger condition, including greater than threshold

• Heat Map

  A graphic description of visits (by calculating amount of people or amount of dwell time) in a configured area.,

  Two report types are available, space heat map and time heat map line chart.

• Hard Hat Detection

  Detects up to 30 human targets simultaneously

  Supports up to 4 shield regions

• MetadataIntrusion detection,line crossing detection,region entrance detection,region exiting detection,face capture,multi-target-type detection
• Regional People Counting

  Supports up to 8 detection regions, and independent arming schedule and linkage method

  Supports 3 detection modes: people density detection, number of people exception detection, waiting time exception detection

  Supports parameter settings: alarm times per exception, alarm interval, first alarm delay

  Supports searching real-time number of people

  People density detection: supports scheduled uploading, number of people change uploading, congestion level uploading

  Number of people exception detection: supports 6 alarm trigger conditions, including greater than threshold A, less than threshold A, equal to threshold A, not equal to threshold A, greater than threshold A and less than threshold B, less than threshold A or greater than threshold B (threshold A should be less than threshold B)

  Waiting time exception detection: supports 3 alarm trigger conditions, including greater than threshold A, less than threshold A, greater than threshold A and less than threshold B (threshold A should be less than threshold B)

• On/Off Duty Detection

  Supports up to 8 detection regions, and independent arming schedule and linkage method

  Supports 2 detection modes: absence detection, on/off duty detection

  Supports parameter settings: person on duty, absence duration

General

• Power: 12 VDC ± 20%, 1.02 A, max. 12.4 W, two-core terminal block

               24 VAC ± 20%, 0.49 A, max. 11.8 W, two-core terminal block

               PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.22 A to 0.29 A, max. 12.5 W

• Material: Aluminum alloy body
• Dimension: Ø140.5 mm × 122.6 mm (Ø5.5″ × 4.8″)
• Package Dimension: 244 mm × 174 mm × 173 mm (9.6″ × 6.9″ × 6.8″)
• Approx. 875 g (1.93 lb.)
• With Package Weight: Approx. 1415 g (3.11 lb.)
• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• General Function: Heartbeat, mirror, password protection, one-key reset
• Device Management: Supports adding alarm box (DS-FM2466) in the LAN to expand 6 additional input and 6 output alarm interfaces

Approval

• EMC: FCC: 47 CFR Part 15, Subpart B,CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,

  RCM: AS/NZS CISPR 32: 2015,

  IC: ICES-003: Issue 7,

  KC: KN32: 2015, KN35: 2015

• Safety: UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005,

  LOA: IEC/EN 60950-1

• Environment: CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
• ProtectionIK10: IEC 62262:2002
