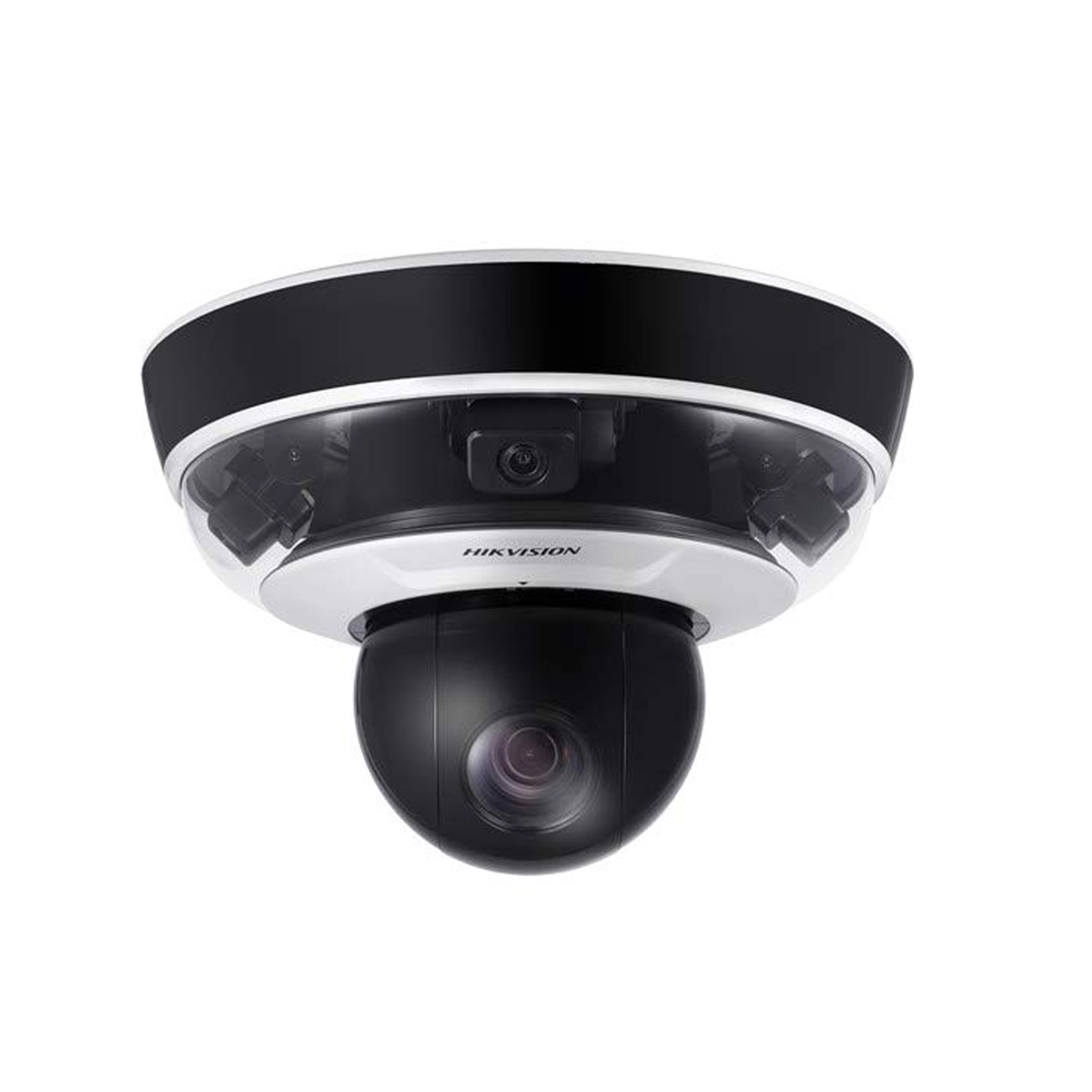

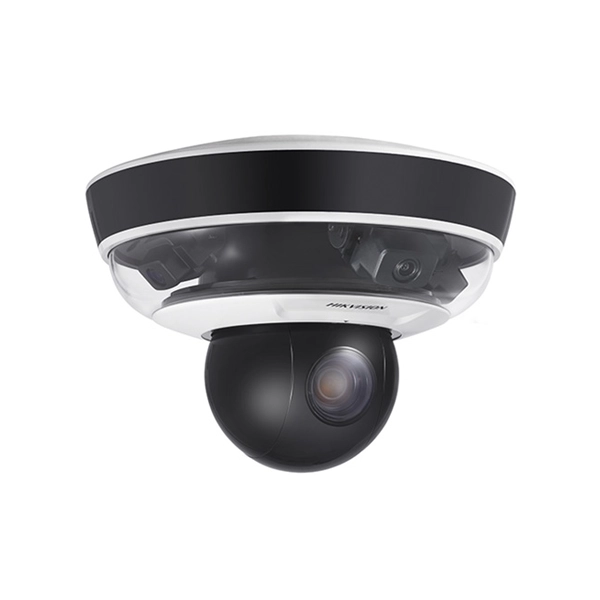

Hikvision Triple-Directional PanoVu Camera with PTZ
Key features:
- 3 lenses in one camera cover up to 240° field of view
- These lenses are adjustable along a circular track so camera can be widely used in multiple indoor scenes such as corridors, warehouses, road intersections
- Panoramic camera linked to a PTZ: capturing 240° images with the panoramic camera, as well as close-up images with the PTZ camera
- H.265+/H.265/H.264+/H.264 encoding: efficient compression technology saves storage space and reduces bandwidth requirements
- Built-in IR light, IR range of 15 meters provides good visibility in low or even zero-light environments
- IP66 water resistant, preventing water ingress for outdoor use
System Functions
- 3-ch panoramic images in different directions and
1-ch close-up image - Three flexible cameras are adjustable along a
circular track, slide range: 0° to 270° - Three flexible cameras can tilt rotate from 15° to
55° independently - 1-ch audio input and 1-ch audio output
- 1-ch alarm input and 1-ch alarm output, support
alarm linkage - PTZ linkage
- Built-in memory card slot, support
microSD/SDHC/SDXC, up to 256 GB - Open-ended API, support ONVIF, ISAPI, and CGI,
support HIKVISION SDK and Third-Party
Management Platform - Support H.265 : video compression
- IP66
Camera
- Image Sensor: 1/2.8″ progressive scan CMOS
- Min. Illumination
Color: 0.005 Lux @(F1.6, AGC ON)
B/W: 0.001 Lux @(F1.6, AGC ON)
0 Lux with IR
- Shutter Speed
50 Hz: 1/25 s to 1/30,000 s
60 Hz: 1/30 s to 1/30,000 s
- Focus: auto;manual;semi-auto
- Day & Night: ICR
- BLC: yes
- WDR: digital WDR
- HLC: yes
- 3D DNR: yes
- Defog: yes
- Regional Exposure: yes
- Regional Focus: yes
- White Balance: auto, ATW, sodium lamp, fluorescent lamp, indoor, outdoor, MWB
- Digital Zoom8x
- Optical Zoom[PTZ channel] 10x
- Privacy Mask: up to 8 masks
- General Function: IP address filter, video tampering alarm, privacy mask
- Optical Defog: no
Lens
- Focal Length
[Panoramic channel]：4mm
[PTZ channel]：4.7 mm to 47 mm, 10× optical zoom
- Zoom Speedapprox. 2.5 s
- FOV
[Panoramic channel]：
Horizontal field of view: 80.7° × 3
Vertical field of view: 43.5°
[PTZ channel]：
Horizontal field of view: 58.6° to 6.4° (wide – tele)
Vertical field of view: 35.1° to 3.6° (wide – tele)
Diagonal field of view: 7.4° to 65.6° (wide – tele)
- Aperture[panoramic channel] F1.6, [PTZ channel] F1.6 to F3.0
Illuminator
- IR Distance: 50 m
PTZ
- Movement Range (Pan)[PTZ channel] 0° to 350°
- Movement Range (Tilt)[PTZ channel] 0° to 90°
- Pan Speedpan speed: configurable from 0.1° to 60°/s; preset speed: 60°/s
- Tilt Speedtilt speed: configurable from 0.1° to 60°/s, preset speed 60°/s
- Proportional Zoom[panoramic channel]: no; [PTZ channel]: yes
- Presets: 300
- Patrol Scan: no
- Pattern Scan: no
- Power-off Memory[panoramic channel]: no; [PTZ channel]: yes
- Park Action: preset
- 3D Positioning[panoramic channel]: no; [PTZ channel]: yes
- PTZ Status Display[panoramic channel]: no; [PTZ channel]: yes
- Preset Freezing[panoramic channel]: no; [PTZ channel]: yes
- Scheduled Task: preset, dome adjust, dome reboot
- Shake Detection: no
Video
- Max. Resolution: 1920 × 1080
- Stream Type: main stream, sub-stream
- Main Stream
Panoramic camera:
Main stream:
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
PTZ camera:
Main stream:
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
- Sub-Stream
Panoramic camera:
50 Hz: 20 fps (704 × 576, 640 × 480, 352 × 288)
60 Hz: 20 fps (704 × 480, 640 × 480, 352 × 240)
PTZ camera:
50 Hz: 20 fps (704 × 576, 640 × 480, 352 × 288)
60 Hz: 20 fps (704 × 480, 640 × 480, 352 × 240)
- Video Compression: H.265;H.264;MJPEG
- Video Bit Rate: 256 Kbps to 8192 Kbps
- H.264 Type: main profile, high profile
- H.265 Type: main profile
- SVC: yes
- ROI: yes
Audio
- Audio Compression: G.711alaw;G.711ulaw;G.722.1;G.726;MP2L2
- Audio Bit rate: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 128 Kbps(MP2L2)
Smart Features
- Face Capture: no
- Face Comparison: no
- Basic Event: video tampering alarm, motion detection, exception
- Smart Event: intrusion detection, line crossing detection, audio exception detection
- Smart Tracking: no
- Smart Record: ANR
Network
- Protocols:IPv4/IPv6,HTTP,HTTPS,802.1x;Qos,FTP;SMTP;UPnP;SNMP;DNS;DDNS;NTP;RTSP;RTCPRTP,TCP/IP, DHCP, PPPoE, Bonjour
- API: Open-ended API,ISAPI ,Hikvision SDK, Third-party management platform, Open Network Video Interface, CGI
- Simultaneous Live View: Up to 4 × 4 channels
- User/Host: Up to 32 users. 3 levels: Administrator, Operator and User
- Security Measures: User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
- Client: iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
- Web Browser: IE8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51
Interface
- On-board Storage: up to 256 GB
- Alarm Input: 1 alarm input
- Alarm Output: 1 alarm output
- Audio Input: 1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%
- Audio Output: 1 audio output
General
- Power: 12 VDC; Hi-PoE
- Power Consumption and Current: 12 VDC, 3.33 A and Hi-PoE, 42.5 to 57 VDC, 1.41 A
Max.27 W (Max. 9 W for IR)
- Operating Conditions: -30℃ to 65℃ (-22°F to 149°F)
- Material: PC & Aluminum alloy
- Dimensions: Φ 271.3 mm ×243.1 mm (Φ 10.68″ × 9.57″)
- Approx. 3.2 kg (7.05 lb)
Approval
- ProtectionIP66
