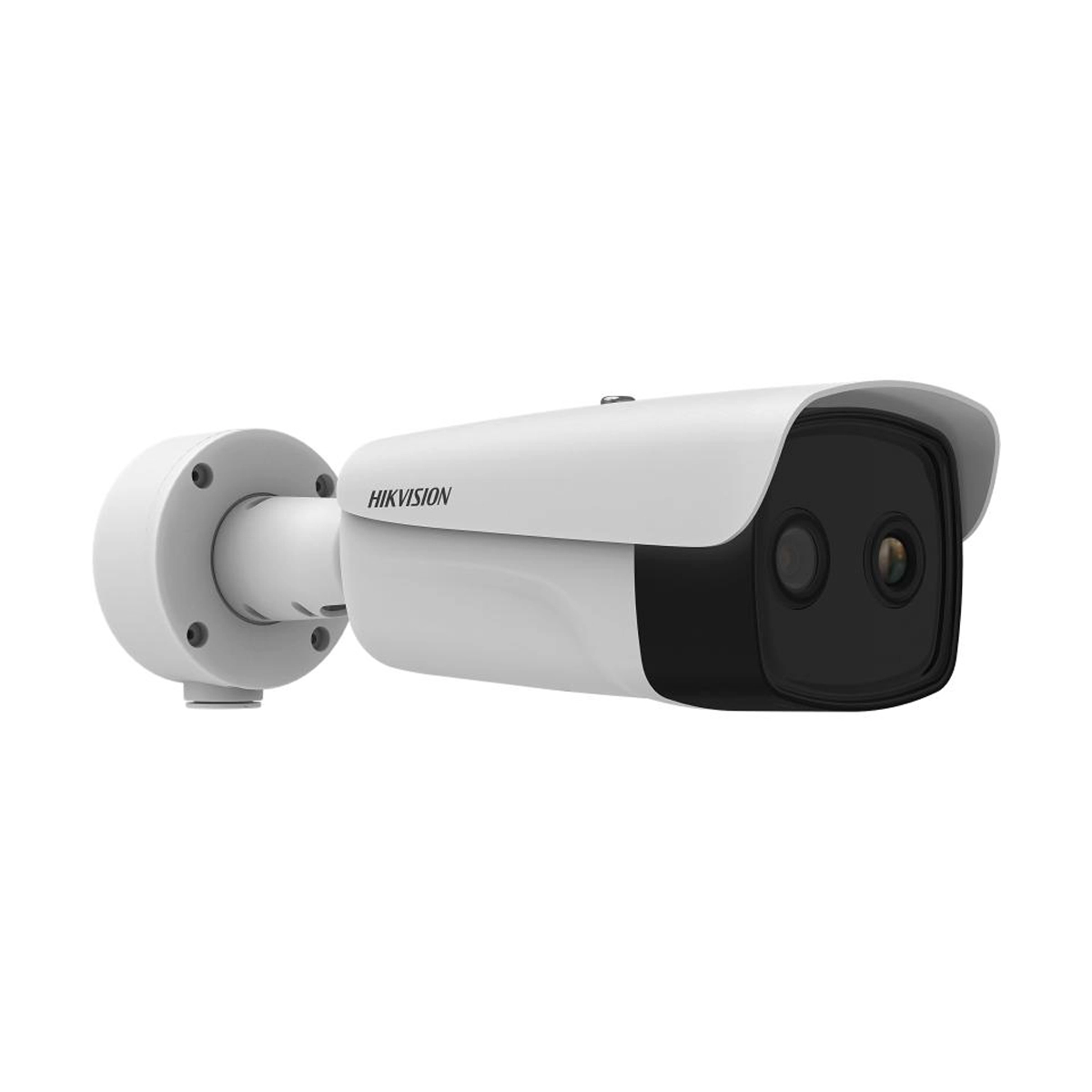

Hikvision IP Thermal DL Bullet 384×288 25mm

• 384 × 288 resolution, 17 μm, VOx UFPA, NETD ≤ 35 mK (25°C, F1.0)
• Video content analysis: vehicle/human classification
• Temperature exception alarm for fire prevention, -20°C to 150°C (-4°F to 302°F), ± 8°C (± 14.4°F)
• Fire detection Algorithm
• Support sun-reflection filter algorithm
• Image processing technology: linear, histogram, self-adaptive thermal AGC mode, DDE, 3D DNR
• High quality detector with 10 years guarantee

Thermal Module

• Image Sensor: Vanadium Oxide Uncooled Focal Plane Arrays
• Resolution: 384 x 288
• Pixel Pitch: 17 μm
• Spectral Range: 8 μm to 14 μm
• NETD: ≤ 35 mK (@25° C,F# = 1.0)
• Focal Length: 25 mm
• IFOV0.68 mrad
• ApertureF1.0
• Field of View: 14.9° × 11.2° (H × V)
• Min. Focusing Distance: 13 m
• Digital Zoom: ×2, ×4

Optical Module

• Image Sensor: 1/2.7″ Progressive Scan CMOS
• Resolution: 2688 × 1520
• Min. Illumination: 0.0089Lux @(F1.6,AGC ON) ,0 Lux with IR
• Field of View: 25.25° × 14.44° (H × V)
• Focal Length:12mm
• Shutter Speed: 1 s to 1/100,000 s
• White Balance: MWB/AWB1/Locked WB/Fluorescent Lamp/Incandescent Lamp/Warm Light Lamp/Natural Light
• Day & Night Mode: IR Cut Filter with Auto Switch
• WDR120 dB

Image Effect

• Bi-spectrum Image Fusion Display the details of optical channel on thermal channel
• Target Coloration Yes. Supported in white hot and black hot mode.

Illuminator

• IR Distance: Up to 100 m
• IR Intensity and Angle Automatically adjusted

Smart Function

• VCA: 4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
• Temperature Measurement: 3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line)
• Temperature Range: -20 °C to 150 °C (-4 °F to 302 °F)
• Temperature Accuracy: ± 8 °C (±14.4 °F)

Video and Audio

• Main Stream

  Optical channel

  50 HZ: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

  60 HZ: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

  Thermal channel

  25 fps (1280×720P， 704×576， 352×288， 384×288)

• Sub-stream

  Optical channel

  50 HZ: 25 fps (704 × 576, 352 × 288)

  60 HZ: 30 fps (704 × 480, 352 × 240)

  Thermal channel

  25 fps (704 × 576, 352 × 288, 384 × 288)

• Video Compression

  Main Stream: H.265/H.264

  Sub-Stream: H.265/H.264/MJPEG

• Audio CompressionG.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM

Video and Image

• Color Palettes: 17 types (White hot, Black hot, Fusion 1, Rainbow, Fusion 2, Ironbow 1, Ironbow 2, Sepia, Color 1, Color 2, Ice fire, Rain, Red hot, Green hot, Dark blue, Winter, Summer)

Network

• Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP,           RTSP,  RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, TP, Bonjour, SFTP, SRTP, SSL
• Network Storage: MicroSD/SDHC/SDXC card (up to 512 G) local storage, NAS (NFS, SMB/CIFS), Auto                                   Network Replenishment (ANR)
• API: ISAPI, ISUP, HIKVISION SDK, and third-party management platform, Open Network Video                     Interface, ONVIF (Profile S, Profile G, Profile T), OTAP
• Simultaneous Live View: Up to 20 channels
• User/Host level: Up to 32 users, 3 levels: Administrator, Operator, User
• Security: User authentication (ID and password), MAC address binding, HTTPS encryption, IEEE                             802.1x access control, IP address filtering
• Client: iVMS-4200, Hik-Connect

Interface

• Alarm Input: 2, alarm input (0-5 VDC)
• Alarm Output: 2, alarm output (alarm response actions configurable)
• Alarm Action: SD recording/Relay output/Smart capture/FTP upload/Email linkage
• Audio Input: 1, 3.5 mm Mic in/Line in interface

                          Line input: 2 – 2.4 V [p-p], output impedance: 1 KΩ ± 10%

• Audio Output: Linear level, impedance: 600 Ω
• Communication Interface: 1, RJ45 10 M/100 M Self-adaptive Ethernet interface.

                                                    1, RS-485 interface (half duplex)

• Analog Output: 1.0V [p-p]/75Ω, PAL/NTSC/BNC

General

• Menu Language: 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
• Power Supply: 24 VAC ± 25%, 12 VDC ± 25%,24VDC two-core terminal block

                             PoE (802.3af, class 3)

• Power Consumption: 24 VAC ± 25%: 0.8 A to 0.5 A, max. 9.5 W

                                        12 VDC ± 25%: 0.63 A to 1.06 A, max. 9 W

                                      24VDC: 0.4A, max 9.5W

                                     PoE (802.3af, class 3): 36 V to 57 V, 0.28 A to 0.17 A, max. 10 W

• Working Temperature/Humidity: Temperature: -40°C to 65°C (-40°F to 149°F) Humidity: 95% or less
• Protection Level: IP67 Standard

                                  IK10-rated housing

                                 TVS 4000V lightning protection, surge protection, voltage transient protection

                                 NEMA 4X anti-corrosion housing

• Dimensions: 376.1 mm × 119.1 mm × 118.1 mm (14.81″ × 4.68″ × 4.65″)
• Weight: 1.82 kg (4.01 lb)

Detection Range Table/Smart Function Range

• VCA Range for Humans: 175 m
• VCA Range for Vehicles: 525 m

Approval

• EMC: CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN50130-4: 2011+A1: 2014);

  RCM (AS/NZS CISPR 32: 2015);

  IC (ICES-003: Issue 7)

  KC (KSC9832: 2019; KSC9835: 2019)

  FCC (ANSI C63.4;FCC Part15 sub B)

• Safety: CB: IEC 62368-1: 2014+A11;

               CE-LVD: EN 62368-1: 2014/A11: 2017;

                UL: (CSA C22.2 No. 62368-1-14, 2nd Ed.)

• Environment: CE-RoHS：2011/65/EU,

                             WEEE: 2012/19/EU,

  Reach: Regulation(EC) No 1907/2006

• Protection: IP67: IEC 60529-2013

                       IK10: IEC 62262-2002

• Anti-Corrosion Protection: NEMA 4X (NEMA 250-2018)
