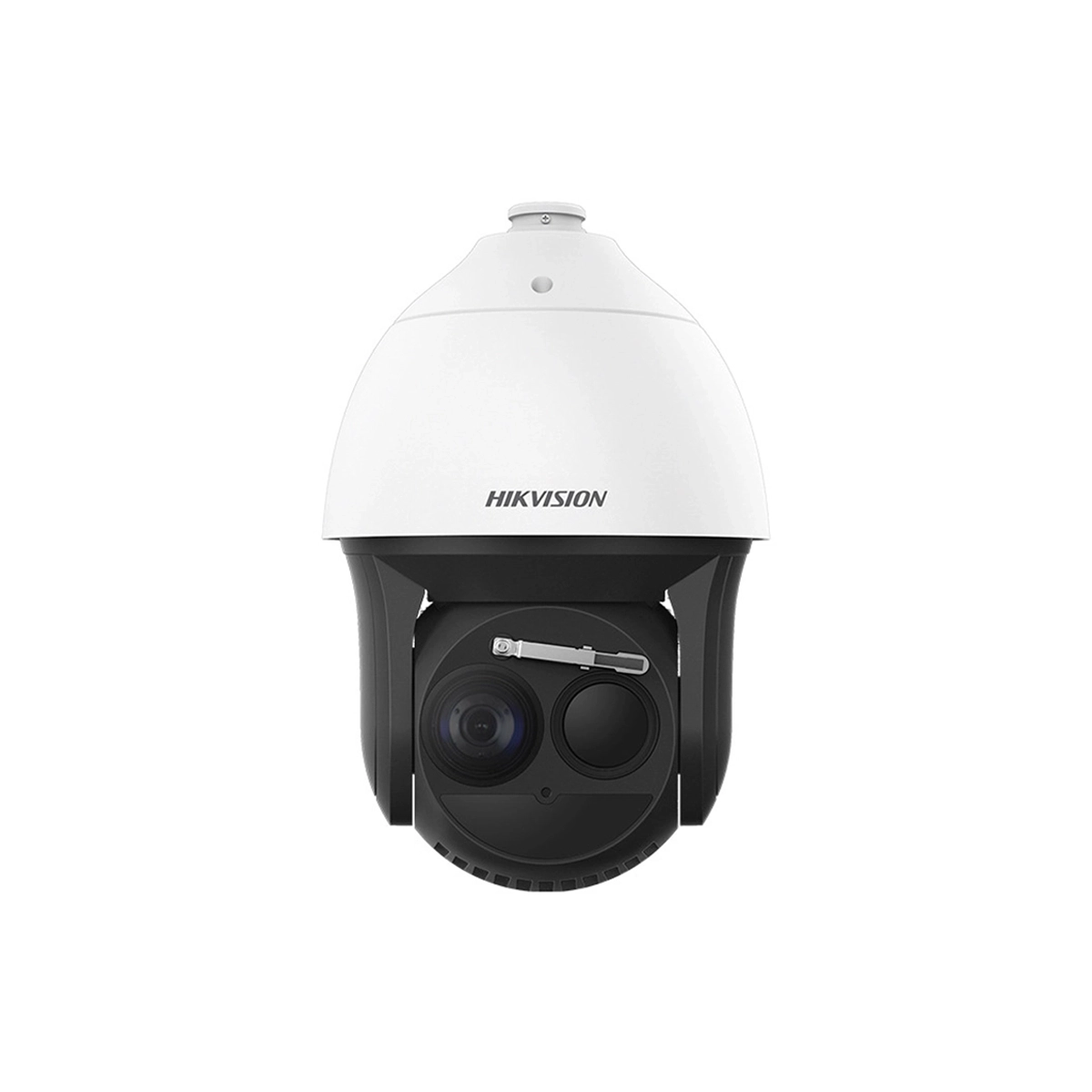

Hikvision IP Thermal PT 384×288 25mm

• Perimeter protection function, based on intelligent algorithm: line crossing, intrusion, region entrance and exit
• Temperature exception alarm for fire prevention
• 384 × 288 (the resolution of output image is 384 × 288) resolution 17 μm, VOx UFPA, NETD ≤ 40 mK (25 °C, F# = 1.1)
• Image processing technology: Liner, histogram, and self-adaptive thermal AGC mode, DDE, 3D DNR
• High quality detector with 10 years guarantee
• Smart tracking: Panorama tracking, Event tracking and Multi-scene patrol tracking
• Thermal channel supports EIS, conflicted with intelligent function
• Fire and smoke detection algorithm

Thermal Module

• Image Sensor: VOx Uncooled Focal Plane Arrays
• Resolution:384 × 288
• Pixel Interval: 17 μm
• Response Waveband: 8 μm to 14 μm
• NETD Less than 40 mK (@ 25 °C,F#=1.0)
• Focal Length: 25 mm
• Focus Mode Athermalized
• IFOV0.68 mrad
• ApertureF1.0
• Field of View: 14.9° × 11.2° (H × V)
• Min. Focusing Distance: 13m
• Digital Zoom: ×2, ×4, ×8

Optical Module

• Image Sensor: 1/1.8″ Progressive Scan CMOS
• Resolution: 2688 × 1520, 4 MP
• Min. Illumination: Color: 0.005 Lux @(F1.3，AGC ON), B/W: 0.001 Lux @(F1.3，AGC ON)
• Field of View: 56.6° ×33.7° (H × V)~1.8° ×1.0° (H × V)
• Focal Length: 6-240 mm, 40x
• Aperture (Range):F1.3-F4.6
• Focus Mode: Semi-auto & Manual
• Digital Zoom: ×2, ×4, ×8, ×16
• Shutter Speed: 1s to 1/30,000s
• WDR: 120 dB
• Optical Defog: Yes

Image Effect

• Picture in Picture Display partial image of thermal channel on the full screen of optical channel
• Target Coloration Supported in white hot and black hot mode

PTZ

• Movement Range: Pan: 360° Continuous Rotate; Tilt: From -20° to + 90° (auto flip)
• Pan Speed: Configurable, From 0.1°/s to 200°/s, Preset Speed: 240°/s
• Tilt Speed: Configurable, From 0.1°/s to 105°/s, Preset Speed: 200°/s
• Proportional Zoom: Yes
• Presets: 300 in total, 273 are configurable.
• Patrol Scan8; Up to 32 Presets Per Patrol
• Pattern Scan4; More Than 10 Minutes Per Pattern
• Power Off Memory Yes
• Park Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
• PT Status Turn: On/Turn Off
• Scheduled Task: Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Doom Reboot/Doom Adjust/Aux Output

Illuminator

• IR Distance: Up to 150m
• IR Intensity and Angle Automatically adjusted

Smart Function

• VCA: Support 4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), up to 10 scenes and 8 VCA rules for each scene
• Temperature Measurement: Support 3 temperature measurement rule types, 273 presets as scene, 21 rules of each scene (10 points, 10 areas, and 1 line)
• Temperature Range: -20 °C to 150 °C (-4 °F to 302 °F)
• Temperature Accuracy: ± 8 °C (±14.4 °F)
• Fire Detection: Dynamic fire detection, up to 10 fire points detectable.

Video and Audio

• Main Stream

  Thermal channel: 50fps(1920 × 1080, 1280 × 960, 1280 × 720，704×576，640×512，384×288)

  Optical channel: 50Hz:25fps(2688 × 1520，1920 × 1080, 1280 × 960, 1280 × 720)

                               60Hz:30fps(2688 × 1520，1920 × 1080, 1280 × 960, 1280 × 720)

• Sub-stream

  Thermal channel: 50fps(704×576，640×512，384×288)

  Optical channel: 50Hz:25fps(704 × 576, 352 × 288)

                               60Hz:30fps(704 × 576, 352 × 288)

• Video Compression

  Main stream: H.265+/H.265/H.264+/ H.264

  Sub-stream: H.265/H.264/MJPEG

• Audio Compression: G .711u/G.711a/G.722.1/MP2L2/G.726/PCM

Network

• Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
• Network Storage: MicroSD/SDHC/SDXC card (256 G) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
• API: ISAPI, HIKVISION SDK, third-party management platform, ONVIF profile S,T,G)
• Simultaneous Live View: Up to 20 channels
• User/Host level: Up to 32 users, 3 levels: Administrator, Operator, User
• Security: User authentication (ID and Password), MAC address binding, HTTPS encryption, IEEE 802.1x (EAP-MD5, EAP-TLS), access control, IP address filtering
• Client iVMS-4200, Hik-Connect
• Web Browser: Live view (plug-in allowed) : Internet Explorer 11 Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 + Local service : Chrome 57.0+, Firefox 52.0 +

Interface

• Alarm Input: 7-ch inputs (0-5 VDC)
• Alarm Output: 2-ch relay outputs, alarm response actions configurable
• Alarm Action: Preset/Patrol Scan/Pattern Scan/SD Card Record/Relay Output/Smart capture/FTP upload/Email linkage
• Audio Input: 1, 3.5 mm Mic in/Line in interface. Line input: 2 – 2.4 V [p-p], output impedance: 1 KΩ ± 10%
• Audio Output Linear Level; Impedance: 600 Ω
• Communication Interface: 1, RJ45 10 M/100 M Self-adaptive Ethernet interface.

                                                   1, RS-485 interface

• Analog Video Output: 1.0 V [p-p]/75 Ω

General

• Web Client Language: 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
• Power Supply: 24V AC ± 20%, 36V DC ± 20%, 48V DC ± 20%,Hi-PoE
• Power Consumption: 65W Max
• Work Temperature/Humidity: From -40°C to 65°C (-40°F to 149°F); Humidity: 95% or Less
• Wiper Yes
• Protection Level: IP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
• Dimension: 220 mm × 410 mm × 198.6 mm (8.66″ × 16.15″ × 7.82″)
• Approx. 9kg (19.84 lb)

Detection Range Table/Smart Function Range

• VCA Range for Humans:175 m
• VCA Range for Vehicles: 525 m

Approval

• EMC: CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN50130-4: 2011+A1: 2014);

RCM (AS/NZS CISPR 32: 2015);

            IC (ICES-003: Issue 7)

• Safety: CB: IEC 62368-1: 2014+A11;

             CE-LVD: EN 62368-1: 2014/A11: 2017;

            BIS: IS 13252 (Part 1): 2010/ IEC 60950-1: 2005

• Environment:CE-RoHS：2011/65/EU,

                           WEEE: 2012/19/EU,

  Reach: Regulation(EC) No 1907/2006

• ProtectionIP66: IEC 60529-2013
• Anti-Corrosion ProtectionC5
