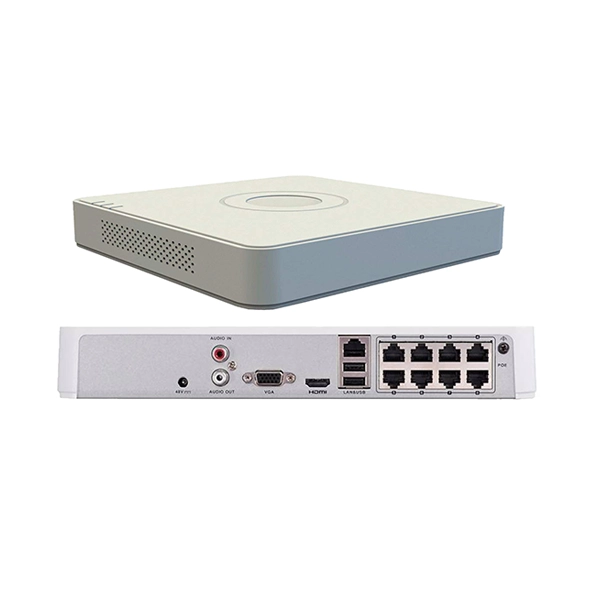

8-ch Mini 1U NVR
Key features:
- H.265+/H.265/H.264+/H.264 video compression
- Up to 8-ch network camera inputs
- Up to 4-ch 1080p decoding capability
- HDMI and VGA simultaneous output
Video and Audio
- IP Video Input: 8-ch Up to 6 MP resolution
- Incoming Bandwidth: 60 Mbps
- Outgoing Bandwidth: 60 Mbps
- HDMI Output: 1-ch, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
- VGA Output: 1-ch, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
- Video Output Mode: HDMI/VGA simultaneous output
Decoding
- Decoding Format: H.265+/H.265/ H.264+/H.264
- Recording Resolution: 6 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
- Synchronous playback: 4-ch
- Decoding Capability: 4-ch@1080p (30 fps) or 2-ch@4 MP (30 fps) or 1-ch@6 MP (30 fps)
- Stream Type: Video, Video & Audio
Network
- Remote Connection16
- Network Protocol :TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP,UPnP™
- Network Interface1, RJ-45 10/100Mbps self-adaptive Ethernet interface
Auxiliary Interface
- SATA1 SATA interface
- Capacity : Up to 6TB capacity for each disk
- Alarm In/Out: N/A
- USB Interface Rear panel: 2 × USB 2.0
General
- Power Supply: 12 VDC, 1.5 A
- Consumption: ≤ 10 W
- Working Temperature: -10 to +55º C (+14 to +131º F)
- Working Humidity: 10% to 90%
- Dimension (W × D × H)200 × 200 × 48 mm (7.9″ × 8.1″ × 1.9″)
- Weight: ≤ 1 kg (2.2 lb)
Certification
- CEEN50130-4, EN 61000-3-2,EN 61000-3-3
