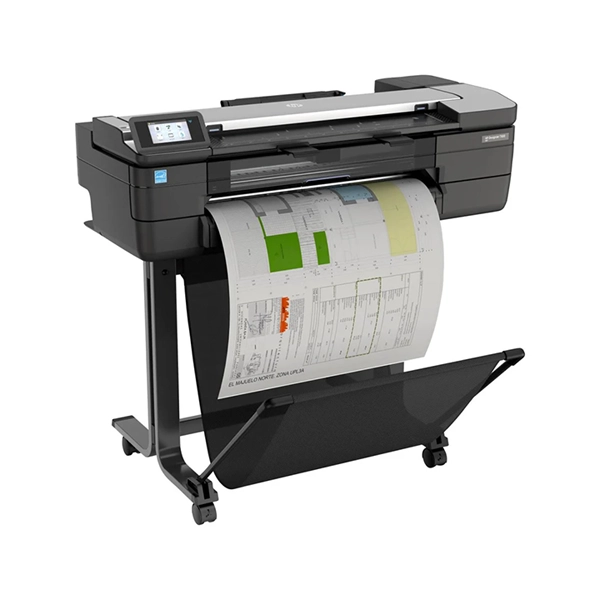

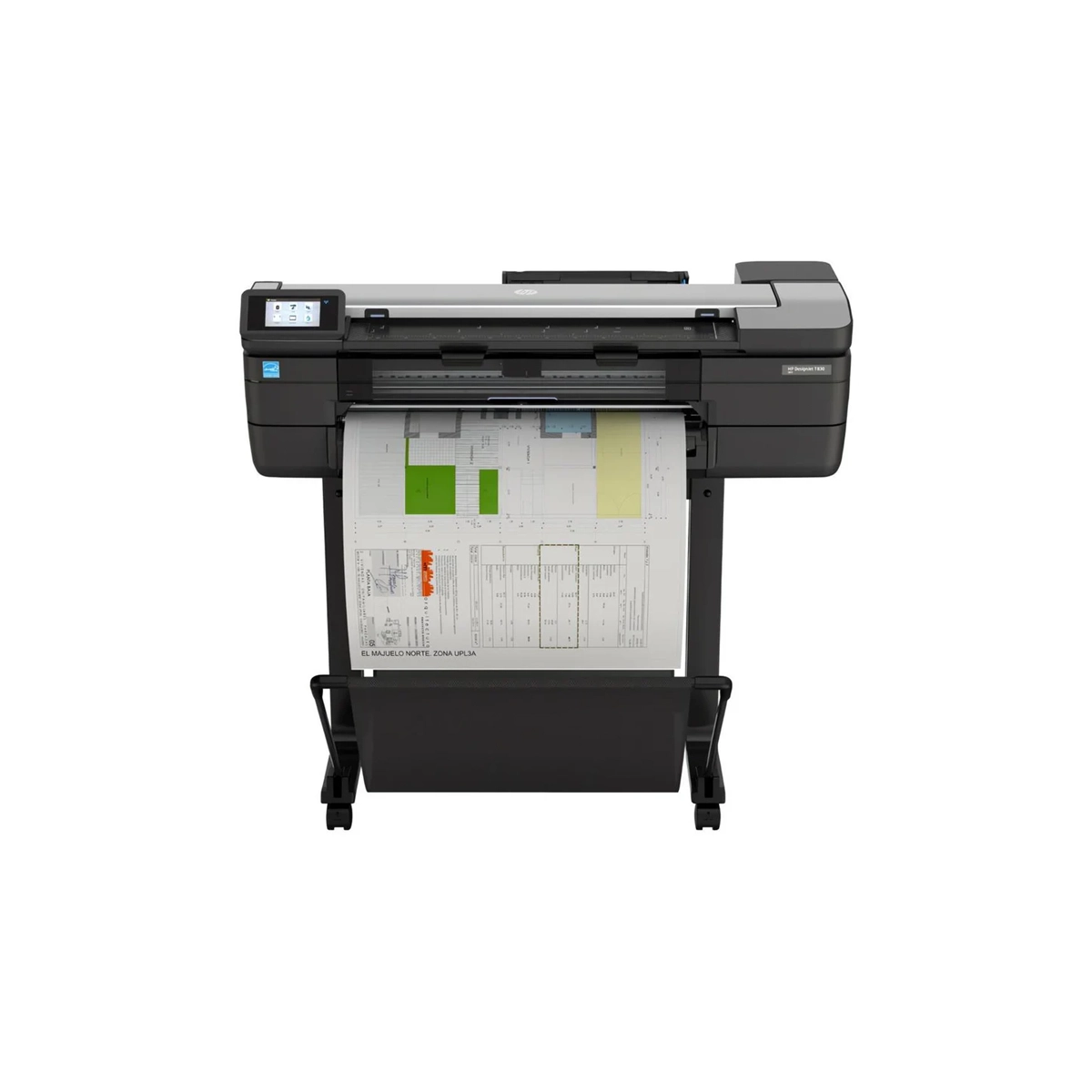

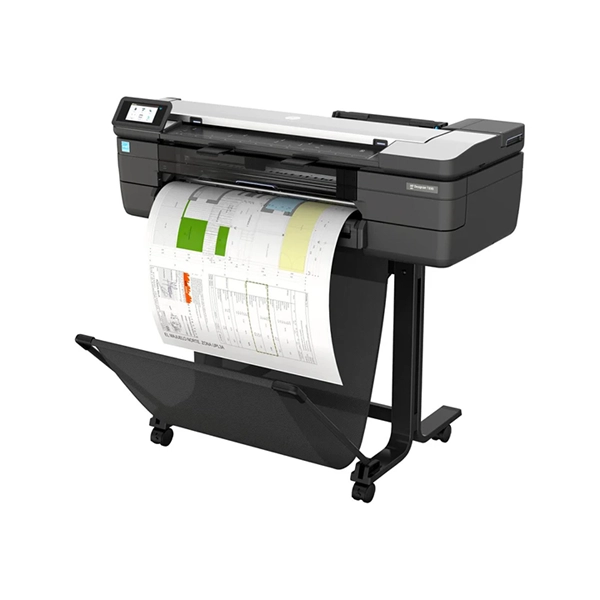

HP Designjet T830 24 Large Format Printer Wi-Fi Inkjet Colour 2400 x 1200 DPI Ethernet LAN

HP Designjet T830 24 Large Format Printer Wi-Fi Inkjet Colour 2400 x 1200 DPI Ethernet LAN

Immediately update all your partners on project review results with the most compact large-format MFP. Intuitive, convenient print/scan/copy and HP DesignJet print quality help you communicate effectively and move the project forward.

•  Print speed: 26 sec/page on A1, 81 A1 prints per hour
•  Model size: 610 mm
•  Print quality color (best): Up to 2400 x 1200 optimised dpi
•  Power consumption: 35 watts (printing), 3.5 watts (sleep), 0.2 watts (standby)
•  Print technology: HP Thermal Inkjet
•  Minimum dimensions (W x D x H): 1098 x 605 x 1155 mm
•  Weight: 46.7 kg

CONVENIENT – Fast, agile, intuitive print/scan/copy

Print documents fast – up to 26 seconds for A1 size prints.
Enjoy easy installation in the office, construction job site with the most compact large-format MFP.
Easily print project sets and PDF documents with HP Click printing software.

TRUSTED – HP DesignJet quality and reliability

Get HP DesignJet quality also in small-format sizes – print half-size documents with 50 sheet A4/A3 input tray.
Smart scanning technology protects originals from damage when scanning and obtains precise colours.
Reinforced design and strong legs for easy transport and use at the job site.
Redesigned stand reduces C02e up to 197 tons/year by units sold.

COMMUNICATION – Immediately share meeting results

Use built-in scanner to copy and distribute sketches and hand-annotated drawings to peers/partners right away.
Easily link your computer, smartphone, or tablet to the printer with Wi-Fi Direct.
Share drawings immediately – scan/email from front panel, use HP Smart app to email contacts, post to cloud.
No learning curve – with the intuitive design of a single touchscreen, you can scan, copy, and share instantly.

Specifications

• Functions: Print, copy, scan
• Print speed: 26 sec/page on A1, 81 A1 prints per hour
• Ink drop: 6 pl (C, M, Y); 12.6 pl (mK)
• Print head nozzles: 1376
• Ink types: Dye-based (C, M, Y); pigment-based (mK)
• Number of print cartridges: 4 (C, M, Y, mK)
• Print heads: 1 (C, M, Y, mK)
• Color(s) of printing supplies: Cyan, magenta, yellow, matte black
• Print quality color (best): Up to 2400 x 1200 optimised dpi
• Maximum optical density (black): 8 L* min/2.10 D ²
• Finished output handling: Sheet feed, roll feed, input tray, media bin, automatic horizontal cutter
• Media sizes standard (metric rolls): 279 to 610 mm
• Roll external diameter: 100 mm
• Roll maximum input: 1
• Roll maximum weight: 4.1 kg
• Media thickness: Up to 11.8 mil
• Media thickness (metric): Up to 0.3 mm
• Media width, maximum: 610 mm
• Supported Primary Applications: Line drawings; Renderings; Presentations
• Non-printable area (cut-sheet): 5 x 5 x 5 x 5 mm
• Non-printable area (roll media): 5 x 5 x 5 x 5 mm
• Media sizes, custom: Input tray: 210 x 279 to 330 x 482 mm; Manual feed: 330 x 482 to 610 x 1897 mm
• Media sizes supported: Input tray: A4, A3; Manual feed: A2, A1
• Media types: Bond and coated paper (bond, coated, heavyweight coated, recycled, plain, bright white), technical paper (natural tracing, vellum), film (clear, matte), photographic paper (satin, gloss, semigloss, premium, polypropylene), self-adhesive (adhesive, polypropylene)
• Print languages: HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4, URF
• Print technology: HP Thermal Inkjet
• Theoretical minimum line width: 0.02 mm (HP-GL/2 addressable)
• Copier settings: Content type; Lighter/Darker; Background noise removal; Background colour removal; Blue print invert; Translucent media; Colour; Scan full width; Auto De-skew; Resize; Copy Margins; Quality
• Enhanced scanning resolution: 600 dpi
• Scan resolution, optical: Up to 600 dpi
• Linear scan speed: Up to 3.81 cm/sec (colour, 200 dpi); Up to 11.43 cm/sec (greyscale, 200 dpi)
• Scan file format: JPEG, PDF, TIFF
• Scan input modes: Scan to email, scan to cloud (through HP Smart app), network, USB, computer, mobile
• Maximum media thickness: 0.8 mm
• Scan size, maximum: 610 mm x 2.77 m
• Scan size, minimum: 203 x 127 mm
• Scanner type: Sheetfed, CIS (Contact Image Sensor), media jam detection sensor, front feed scanning method
• Connectivity, standard: Gigabit Ethernet (1000Base-T), Wi-Fi 802.11b/g/n
• Connectivity, optional: HP USB 3.0 to Gigabit LAN Adapter
• HP ePrint capability: Yes
• Network ready: Standard
