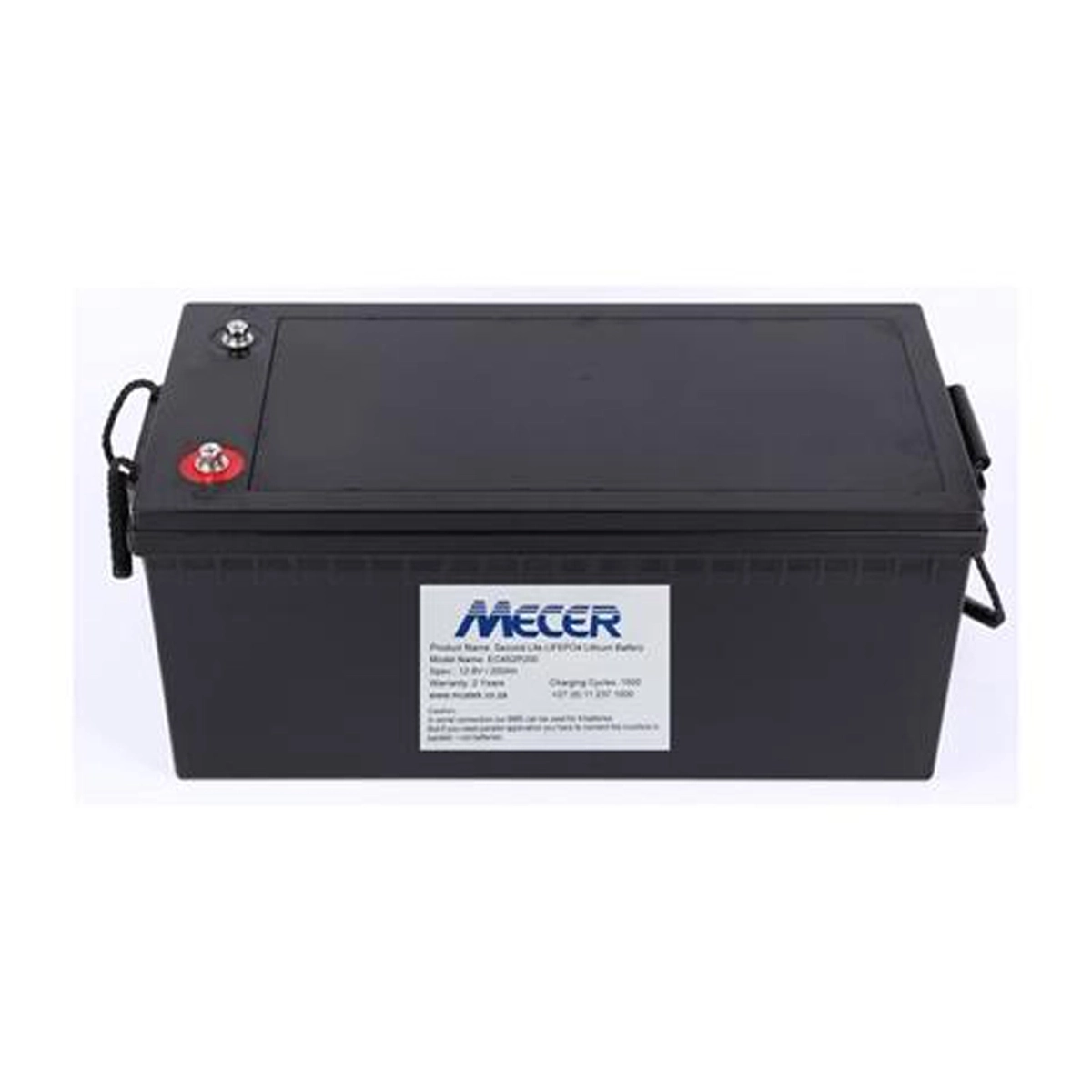

Mecer 200A 12V Lithium Pouch type lithium cell ( serial connection only – max 48V: no parallel ) : 2nd Life Lithium

Specifications:

• Normal capacity: 200Ah
• Voltage: 12.8V
• Energy: 2304Wh
• Charge Voltage: 14.6V
• Discharge cut-off voltage: 10V
• Charge Method: CC/CV
• Standard Charge current: 20A
• Max. Charge Current: 100A
• Max. Continuous Discharge Current: 100A
• Cycle life:1 500 times
• Internal Impedance: <50mOhm
• Dimensions: L521 x W237.9 x G217.3mm
• Weight: 23Kg
• Working temp: 0 – 45deg C
• Storage temp: -20degC to 60degC
• BMS (Battery management system) included to extend the life-time of the battery (up to 4 batteries in series)
