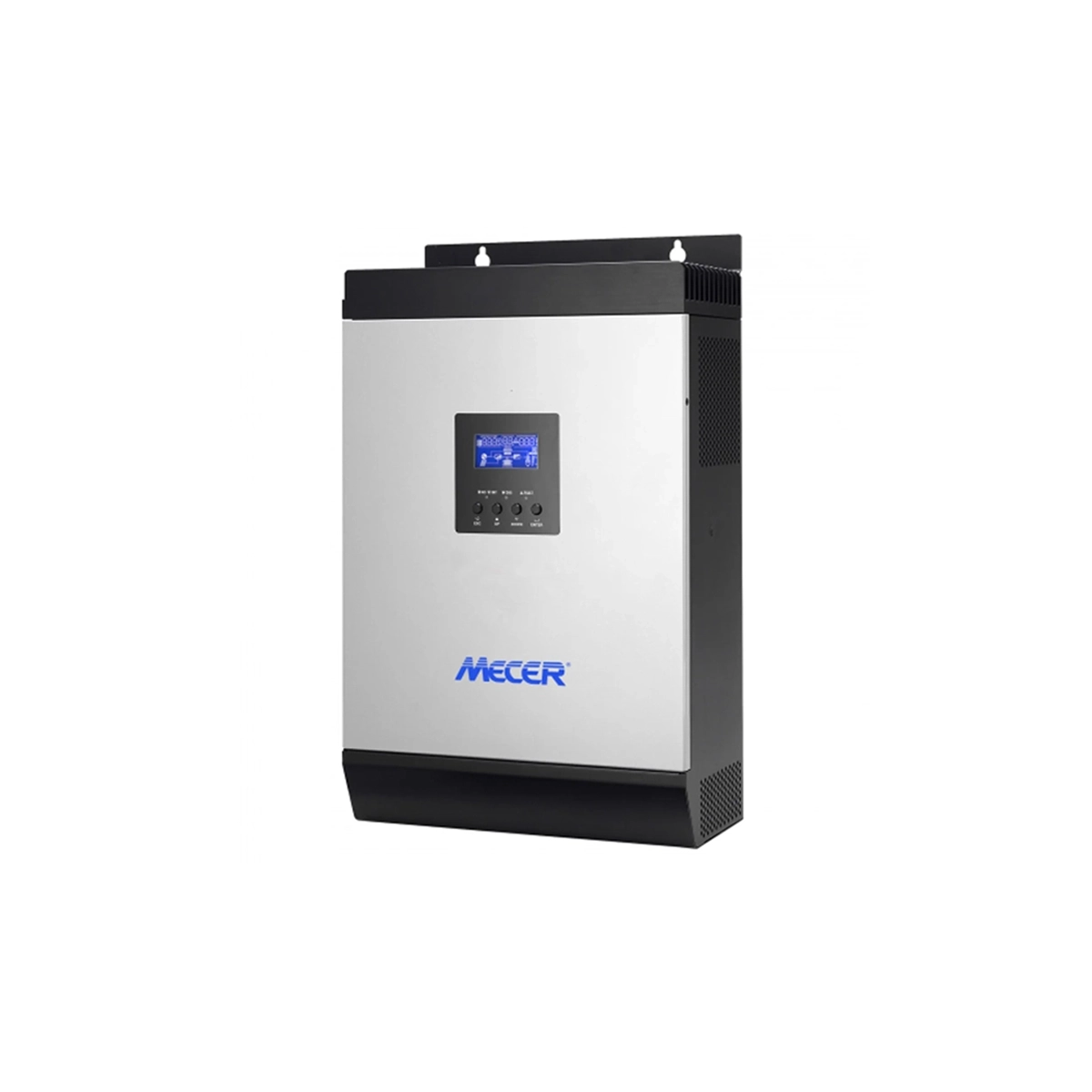

Mecer Axpert V 5000VA/5000W Pure Sine Wave Inverter SOL-I-AX-5VP
Features
- Pure sine wave inverter
- Output power factor 1
- Selectable input voltage range for home appliances and personal computers
- Selectable high-power charging current
- Configurable AC/Solar input priority via LCD setting
- Compatible to mains or generator power
- Auto restart while AC is recovering
- Overload and short circuit protection
- Battery equalization for optimized battery performance and lifecycle
- Cold start function
Technical Specification
Rated Power: 5000VA/5000W
Parallel Capability: None
Parallel Capability: None
Input
Voltage: 230V AC
Selectable Voltage Range: 170-280V AC (For Personal Computers), 90-280V AC (For Home Appliances)
Frequency Range: 50Hz / 60Hz (Auto sensing)
Voltage: 230V AC
Selectable Voltage Range: 170-280V AC (For Personal Computers), 90-280V AC (For Home Appliances)
Frequency Range: 50Hz / 60Hz (Auto sensing)
- Battery Voltage: 48V DC
- Rated Power: 5000VA/5000W
- Parallel Capability: None
Input
- Voltage: 230V AC
- Selectable Voltage Range: 170-280V AC (For Personal Computers), 90-280V AC (For Home Appliances)
- Frequency Range: 50Hz / 60Hz (Auto sensing)
Output
AC Voltage Regulation (Batt Mode): 230V AC ±5%
Surge Power: 10 000VA
Efficiency (Peak): 90-93%
Transfer Time: 10ms (Personal computers) ; 20ms (Home appliances)
Waveform: Pure sine wave
AC Voltage Regulation (Batt Mode): 230V AC ±5%
Surge Power: 10 000VA
Efficiency (Peak): 90-93%
Transfer Time: 10ms (Personal computers) ; 20ms (Home appliances)
Waveform: Pure sine wave
Battery
Battery Voltage: 48V DC
Rated Power: 5000VA/5000W
Parallel Capability: None
Floating Charge Voltage: 54V DC
Overcharge Protection: 63V DC
Voltage: 230V AC
Selectable Voltage Range: 170-280V AC (For Personal Computers), 90-280V AC (For Home Appliances)
Frequency Range: 50Hz / 60Hz (Auto sensing)
*Battery not included
Solar Charger & AC Charger
Type of solar charge controller: PWM
Maximum PV Array Power: 2400W
PWM Range @ Operating Voltage: 60-72V DC
Maximum PV Array Open Circuit Voltage: 105VDC
Maximum Solar Charge Current: 50A
Maximum AC Charge Current: 60A
Maximum Charge Current: 110A
Type of solar charge controller: PWM
Maximum PV Array Power: 2400W
PWM Range @ Operating Voltage: 60-72V DC
Maximum PV Array Open Circuit Voltage: 105VDC
Maximum Solar Charge Current: 50A
Maximum AC Charge Current: 60A
Maximum Charge Current: 110A
Physical
Dimensions D x W x H: 100 x 300 x 440
Net Weight (kgs): 8.5kg
Communication Interface: USB/RS232 Environment
Humidity: 5% to 95% Relative Humidity (Non-condensing)
Operating Temperature: -10°C to 50°C
Storage Temperature: -15°C to 60°C
Dimensions D x W x H: 100 x 300 x 440
Net Weight (kgs): 8.5kg
Communication Interface: USB/RS232 Environment
Humidity: 5% to 95% Relative Humidity (Non-condensing)
Operating Temperature: -10°C to 50°C
Storage Temperature: -15°C to 60°C
