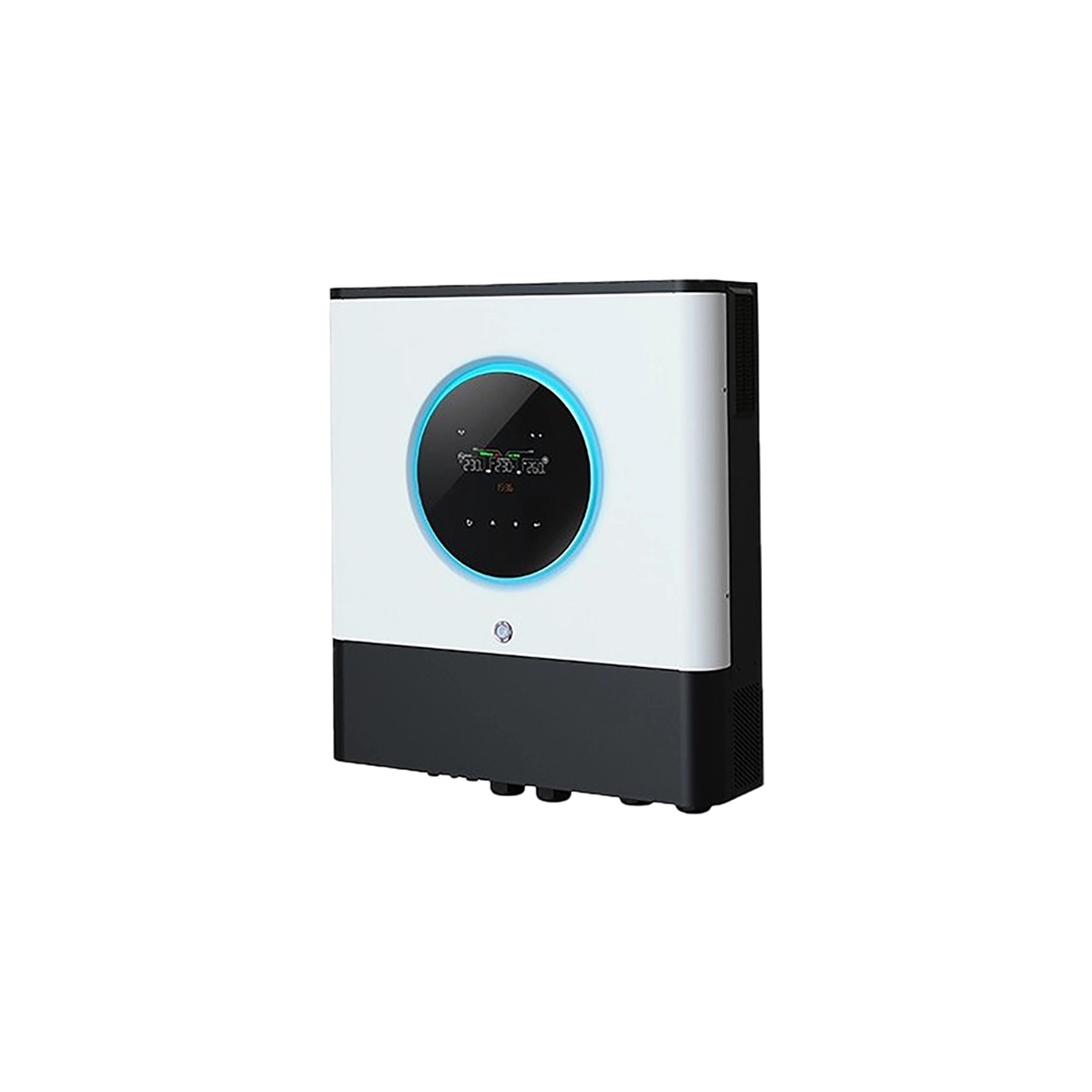

MECER 8kVA / 8kW 8000 MPPT (2 x 4 000) | 230Vac 48V DC Inverters

Mecer Axpert 8K 8kVA/8kW Hybrid Pure Sine Wave Inverter SOL-I-AX-8M

The perfect solution to keep your essential appliances running during power interruptions. Designed to tackle load shedding challenges, this powerful inverter provides reliable backup power to ensure uninterrupted operations.

Features

• Customisable status LED bar with RGB breathing lights.
• Built-in Wi-Fi for mobile monitoring (Android/iOS App is available).
• Supports USB On-the-Go function.
• Reserved communication port for BMS (RS485, CAN-BUS or RS232).
• Replaceable fan design for ease of maintenance.
• Battery independent function.
• Enhanced AC/Solar charger to 120A.
• Built-in anti-dust kit.
• Parallel operation up to 6 units.

Specifications

• Model: SOL-I-AXMAX-8K48V.
• Rated Power: 8000VA/8000W.
• Parallel Capability: Yes, 6 units.

Input

• Voltage: 230 VAC.
• Voltage Range: 170-280 VAC (For Computers), 90-280 VAC (For Home Appliances).
• Frequency Range: 50 Hz/60 Hz (Auto sensing).

Output

• AC Voltage Regulation (Batt. Mode): 230VAC ± 5%.
• Efficiency (Peak): 90% ~ 93%.
• Transfer Time: 15 ms (For Personal Computers), 20 ms (For Home Appliances).
• Waveform: Pure sine wave.
• No Load Power Consumption: <70W.

Efficiency

• Battery Voltage: 48 VDC.
• Floating Charge Voltage: 54 VDC.
• Overcharge Protection: 66 VDC.
• Solar Charger & AC Charger

Solar Charger Type: MPPT.

• Maximum PV Array Power: 8000W (4000W x 2).
• MPP Range @ Operating Voltage: 90 ~ 450 VDC.
• Maximum PV Array Open Circuit Voltage: 500 VDC.
• Number of MPP Trackers: 2.
• Maximum Solar Charge Current: 120 A.
• Maximum AC Charge Current: 120 A.
• Maximum Charge Current: 120 A.
• Physical
• Dimension, D x W x H (mm): 147.4 x 432.5 x 553.6.
• Net Weight (kgs): 18.4.
• Communication Interface: USB/RS232/RS485/Wifi/Dry contact.
• IP Rating: IP21.

Environment

• Altitude: 1000m and de-rate by 1% for every 100m above 1000m.
• Humidity 5% to 95% Relative Humidity (Non-condensing).
• Operating Temperature: -10°C to 50°C (with over-temp protection in case inner component temperature reaches protection level.).
• Storage Temperature: -15°C to 60°C.



Mecer Axpert Maximum II MX2 8K 48V 8000VA/8000W Pure Sine Wave Inverter SOL-I-AX-8M2

• Status Indication with RGB lights
• Built-in wifi for mobile monitoring /Android/iOS Apps are available)
• Supports USB On-the-Go function
• Reserved communication port for BMS (RS485, CAN-BUS or RS232)
• Replaceable fan design for easy of maintenance
• Battery independent design
• Configurable AC/PV output usage timer and prioritization
• Selectable high power charging current
• Selectable input voltage range for homme appliances and personal computers
• Compatible to Utility Mains or generator input
• Built-in anti-dust kit
• Optional DC output for DC fan, LED bulb, router and so-on
• Parallel operation up to 6 units. (It requires mains being present)
