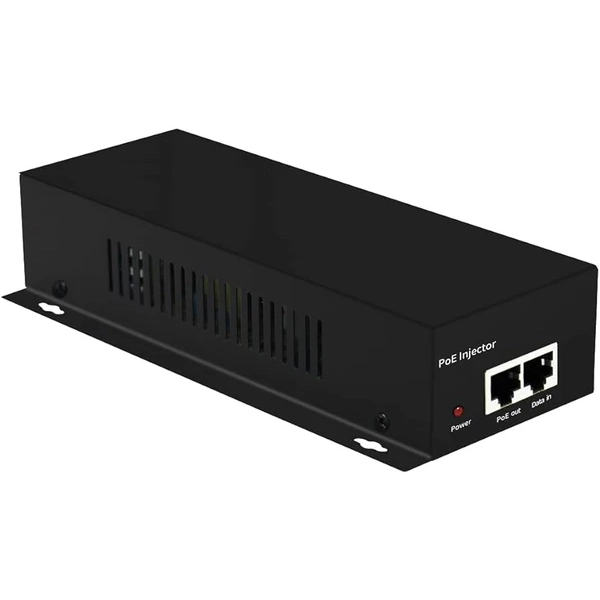

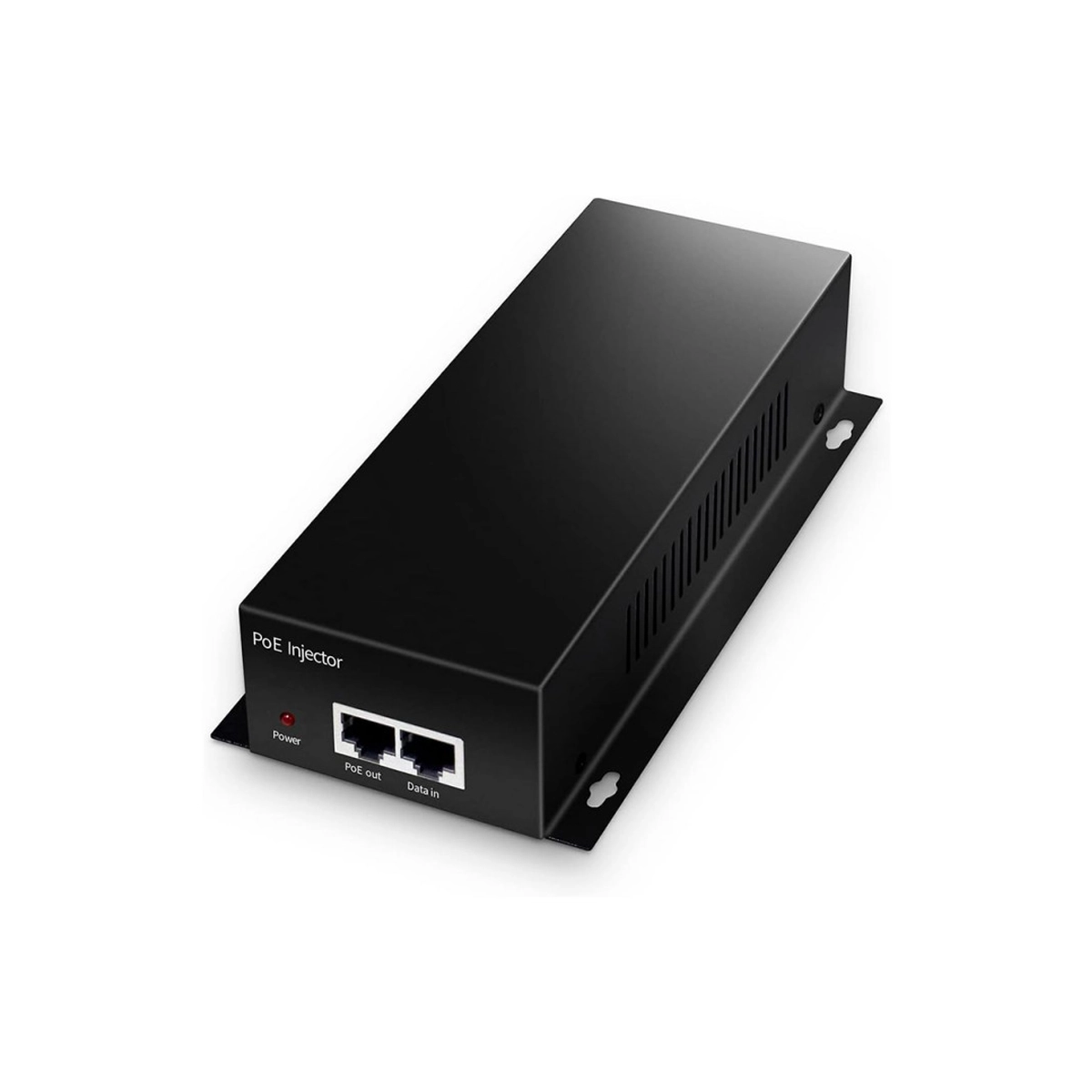

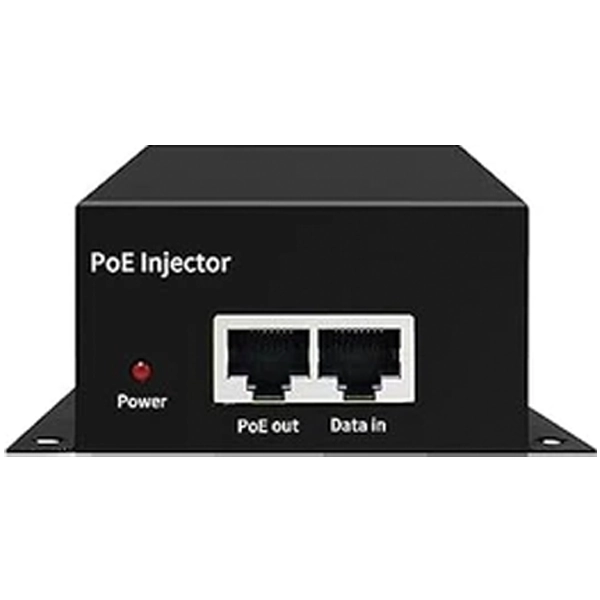

This industrial PoE injector complies with IEEE 802.3af/at/bt power supply standard, single port maximum support 90W output, and the power can be transmitted by UTP over distances of up to 100 meters. Support automatic detection of PoE-compliant devices and matching power output.
It can be used in conjunction with supporting powered PDs or PoE splitters to power network devices such as AP routers, IP cameras, and IP phones in network environments that lack power cords or are away from power sockets.
PoE Technology ( Power over Ethernet), refers to the Technology of providing DC Power supply to some IP-based terminals (such as IP Telephone, Wireless Access AP, Network cameras, etc.) while transmitting data signals. These devices receiving DC Power supply are called PD (powered} devices.
Features
1 Gigabit PoE Port +1 Gigabit Uplink Data Port
Support IEEE 802.3af/at/bt power supply
Support 10/100/1000M network adaptive
Metal shell, IP20 protection grade,
-20 -50°C working temperature
PoE in/out port support 6KV surge protection
Specifications
Color: Black
Network Protocol
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T
IEEE 802.3z 1000BASE-X
IEEE 802.3x Folow Control
Network Media
10BASE-T: Cats UTP(S250 m) 100BASE-TX: UTP????100 m) above Cats
1000BASE-TX: UTP(S100 m) above Cats
What’s in the box
1 x PoE Injector
1 x AC Power Line
1 x User Manual
