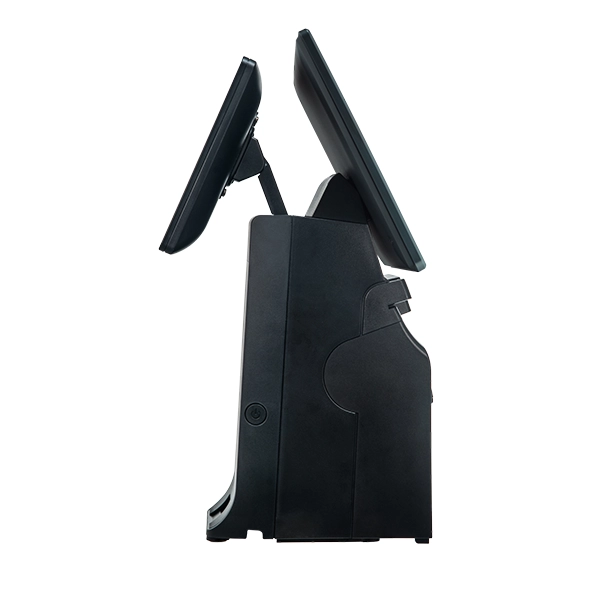

Posiflex, 14″ mini AIO fanfree touch terminal,3″ detachable thermal printer with auto cutter (250mm/sec max); 3*S, 1*USB3.0, 3*USB2.0, 1*LAN, 1*VGA, 1*CR (24V), 1*PS/2, 1*line-out/mic-in, 1*M.2, TPM2.0 (With OS)

E16,875.00

Guaranteed Safe Checkout
SKU: MST10311 Categories: , , Brand:
System-Configuration HS-3614W
Processor Intel Elkhart Lake Celeron J6412, up to 2.60 GHz, 1.5M Cache
System Memory DDR4 SO-DIMM x 2, max. 32GB
Storage Device M.2 connector x 2 (support SATA signal only)
TPM TPM 2.0
Power Supply 24V/100W
OS Support Windows 10 IoT LTSC
Windows 11 IoT LTSC
Display & Touch
LCD 14″ TFT LCD
Resolution 1366 x 768
Touch True-flat PCAP touch with multi-touch support (IP65 on front panel)
I/O Expansion
Serial Port DB9 x 2 + RJ50 x 1, 5V/12V support on all COM ports
Parallel Port Yes
Standard USB Port USB 3.0 x 1+ USB 2.0 x 3
OTG USB N/A
LAN Port 10/100/1000 Mb x 1
Display Port VGA x 1 (12V support for Posiflex monitors )
CR Port RJ11 x 1, control 2 CR via optional Y-cable (printer driven), supporting 24V cash drawer
PS2 Port Yes
Audio Line-out / Mic-in combo jack x 1
Expansion Slot M.2 slot x 1
Dimension
Dimension (W x D x H in mm) 371 x 210 x 476
Weight (N. W. in kg) 5.8
Environmental
Operating Condition 0°C – 40°C, 20%RH – 90%RH
Storage Condition -20°C – 70°C, 10%RH – 90%RH
Built-In Options
WiFi module M.2 WiFi/BT module
Printer Module PP-7900, 3″ speedy thermal printer, 250 mm/sec (max.)
MSR Module 3 tracks ISO or JISII (HID/VCOM selection)
Scanner Module 2D barcode scanner
RFID Reader Module Support MIFARE Ultralight and Classic 1K card (HID/VCOM Selectable)
iButton Module Yes (cannot coexist with Fingerprint Sensor)
4G/LTE Communication Module Single SIM slot, selected band support
Fingerprint Sensor Module Optical type
Attachment Options
POS Monitor Non-touch TFT LCD: 7″/9.7″/12.1″;
PCAP touch TFT LCD: 9.7″
Line Display 2 x 20 rear-mount VFD customer line display;
2 x 20 rear-mount LCD customer line display;
