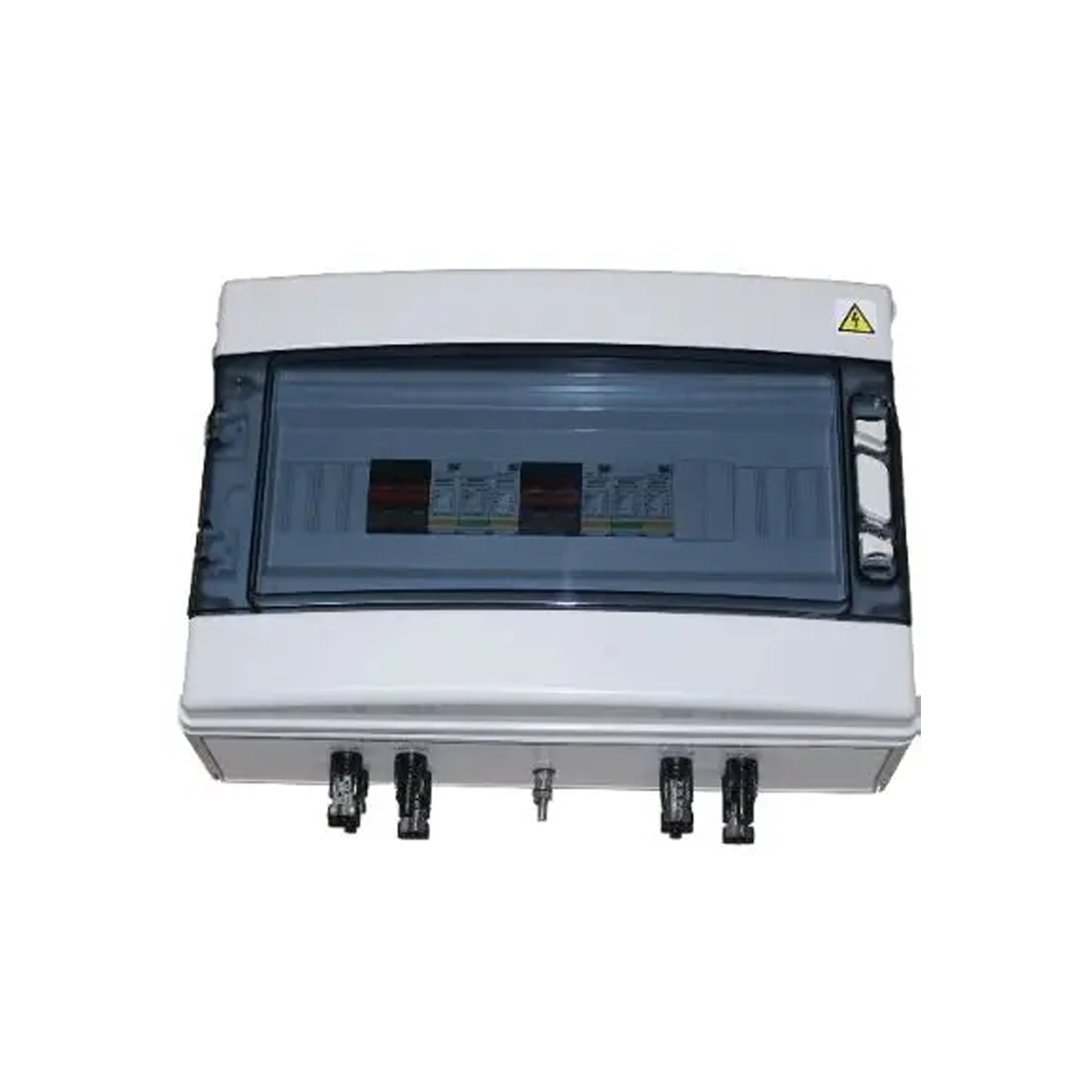

String Combiner Box 2 strings in 2 Strings out MC4 + Surge Protection INFINISOLAR (up to 600V dc)

Mecer String Combiner Box 2 in 2 out 600V SOL-I-IS-CB22

Featuring a unique design that accepts two input strings and outputs two combined strings, this combiner box is ideal for complex solar arrays that need efficient string management. Equipped with integrated surge protection, it safeguards your solar installation against voltage peaks, ensuring enhanced system longevity and safety.

Features:

• • Photovoltaic DC protection board – wall mounted. IP65
  • Use with voltage DC strings ≤600V DC, Imax 12A per string
  • 2 individual strings in 2 individual strings out.
  • DC isolation via 16A DC miniature circuit breaker
  • Type 1 & 2 DC Surge protective device
  • PV string connection via MC-4 connectors on string input side
  • M20 compression gland for output
  • M6 stud connection for earth connection
