Two String Combiner for 5NB (up to 600V dc)

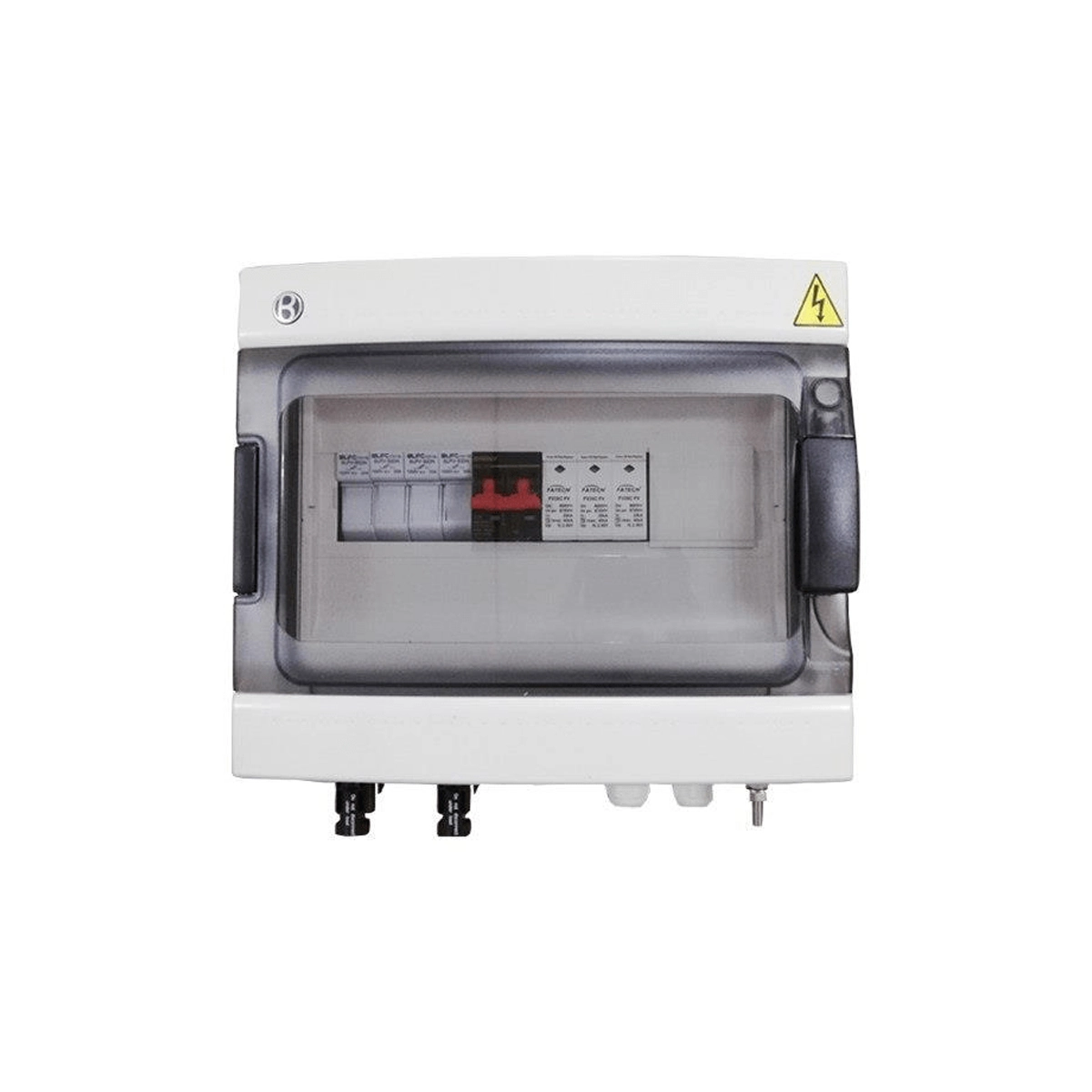

Two String Combiner  (up to 600V dc) – SOL-I-AX-CB2-5NB

Description
This product caters for the 2 individually connected PV strings then combiner into a single output.
Each String utilises a fuse on the positive and terminal on the negative string.
Included is a Type 2 DC Surge protective device –providing protection.
For ease of installation, PV String connection is via original Multi-Contact MC-4 Connectors for input and M20 compression gland for output.
A M16 Earth gland is Provided for earth connection.
DC Isolation is achieved via a 32A DC Miniature circuit breaker.

Features:
• Photovoltaic DC Protection Board – Wall Mounted. IP65
• Use with voltage DC strings ≤600V DC, Imax 12A per string
• 2 individual PV string. Positive- and negative lines utilises fuses
• DC Isolation via 32A DC Miniature circuit breaker
• Type 2 DC Surge protective device
• PV string connection via MC-4 connectors on string input side
• M20 compression gland for output
• M6 stud connection for earth connection

• Max. Open Circuit Voltage Voc: 600V DC
• Max current: 12A DC / String
• Number of individual strings: 2
• Dimensions (H X W X D): 202mm X 231mm X 113mm
• UV Protection: Yes
• DC String connection input: 2 X MC4 set
• Number of inputs: 2
• Number of outputs: 1
